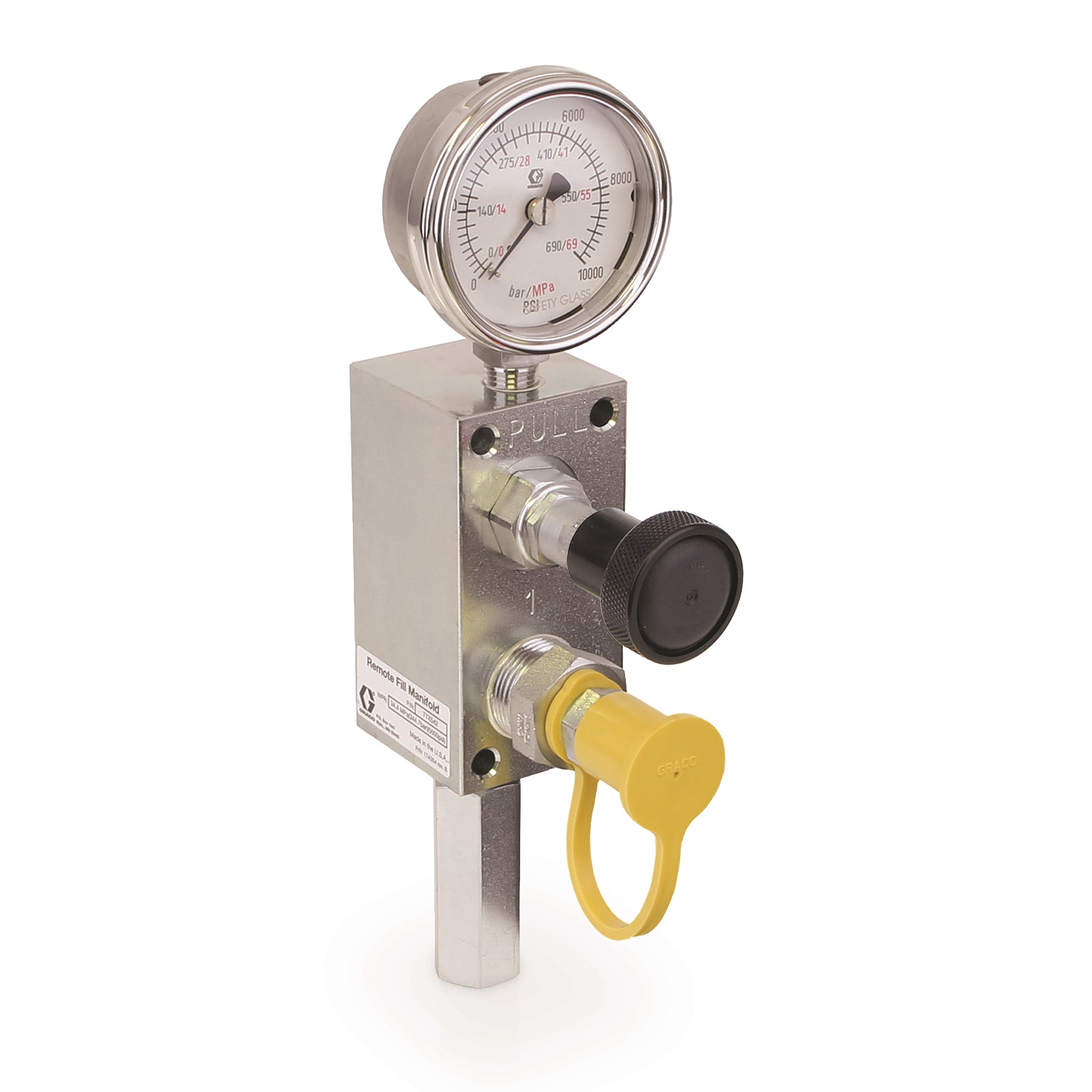

The GRACO 77X542 is a remote-fill port manifold with vent designed for use with optional Auto-Fill Shut-Off Electric Dyna-Star® HP and HF, G3, and Compact Dyna-Star Lubrication Systems. It is constructed for use with grease and is intended to facilitate remote filling and venting in lubrication systems for off-road equipment.

Key Features:

• Manifold
• Compact Dyna-Star Pumps, Electric Dyna-Star Pumps, G3 Pumps, Hydraulic Dyna-Star Jakes
• Remote-fill port manifold with vent
• Includes manual valve, pressure gauge, relief valve, lubricant, fittings, hardware
• Designed for ease of maintenance and reliable operation in off-road equipment

Applications:
Off-road equipment lubrication systems requiring remote filling and venting capabilities.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance with GRACO lubrication systems.
• Follow the equipment manual for proper installation and maintenance procedures.
• Ensure all fittings and hardware are securely attached.
• Regularly inspect the manifold, valves, and gauges for signs of wear or leakage.
• Use only compatible lubricants as specified by GRACO.
