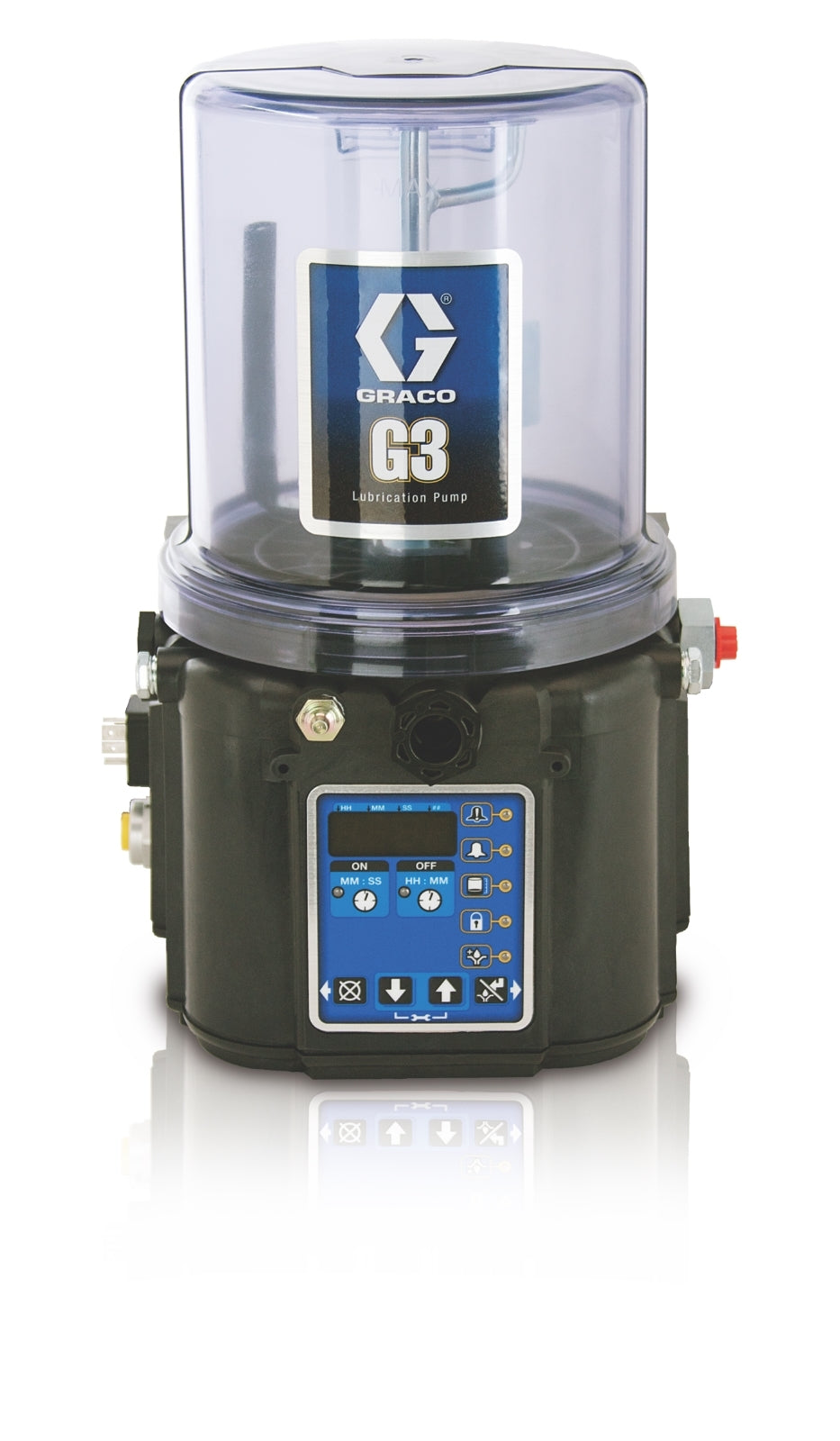

The GRACO 96G027 G3® Pro Grease Lubrication Pump is a robust, electrically powered pump designed for automatic lubrication systems. It is constructed for professional use and intended to dispense NLGI #000 to #2 greases and oils with at least 40cSt viscosity. The pump is engineered for reliable, continuous operation in industrial and vehicle service environments.

Key Features:

• Automatic grease lubrication pump
• G3® Pro, 12 VDC, 2 Liter reservoir
• Professional-grade, durable materials for industrial environments
• Maximum output pressure: 5100 psi (35.1 MPa, 352 bar)
• Compatible with NLGI #000 to #2 greases and oils with at least 40cSt viscosity
• Conforms to ANSI/UL 73; Certified to CAN/CSA C22.2 No 68 (for 100-240VAC models; check for 12VDC model specifics)
• Adjustable pump element (standard, plus room for two more)
• Designed for ease of maintenance and reliability
• Suitable for continuous duty cycle in demanding environments
• Includes manual run button for Max and Pro models

Applications:
Used in automatic lubrication systems for industrial machinery, vehicle service, and equipment requiring reliable, automated grease or oil delivery.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing systems.
• Ensure reservoir is attached before operation
• Use only recommended NLGI greases and oils
• Do not overfill reservoir
• For higher viscosity fluids, start pump to rotate stirring paddle during fill to prevent air pockets
• Torque fittings to 50 in. lbs (5.6 N•m)
• Follow controller specifications for models with external controllers
• Regularly check and refill grease reservoir
• Inspect for leaks and proper operation
• Consult manual for detailed maintenance procedures
