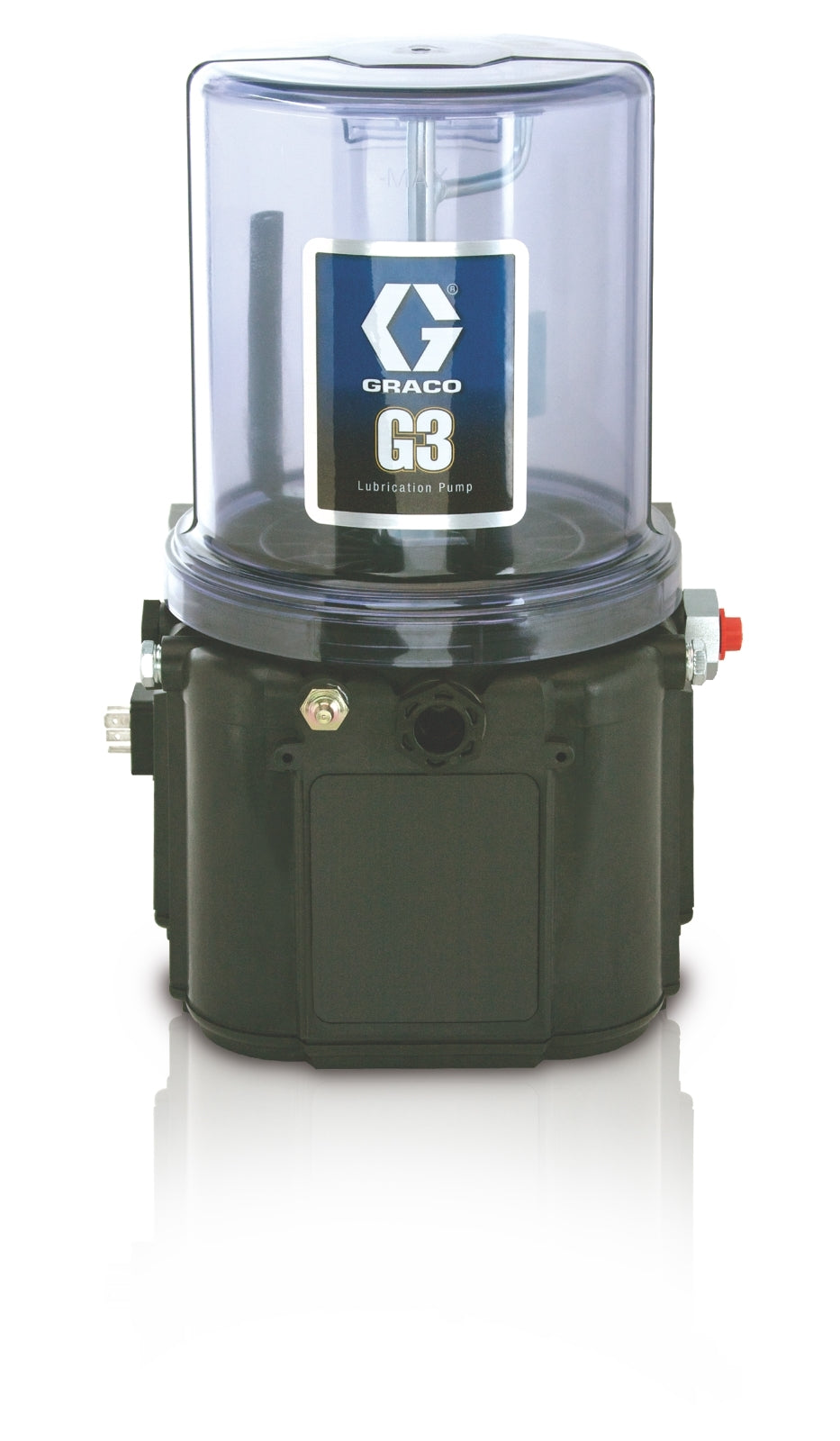

The GRACO 96G039 G3® Standard Grease Lubrication Pump is an electric piston pump designed for automatic lubrication of off-road equipment. It features a robust, high-impact, UV-resistant reservoir and is intended for use with oil or grease up to NLGI #2. The pump is engineered for reliable, consistent delivery of lubricant in demanding environments.

Key Features:

• Electric Piston Pump
• G3 Standard, 8 Liter Reservoir
• High-impact, UV-resistant plastic reservoir; metal pump components
• Adjustable pump output per element per minute: 0.12 in³ (2 cm³), 0.18 in³ (3 cm³), or 0.25 in³ (4 cm³)
• Maximum working pressure: 5100 psi (351 bar)
• Series progressive and injector-based lubrication systems; oil or grease up to NLGI #2
• CE, ETL (conforms to UL 73, certified to CSA 22.2 No. 68-09), IP69K
• Up to three pump elements for higher output
• Fault indication to external alarms
• Optional Data Management System (DMS)
• Robust, UV-resistant reservoir
• Reliable, consistent performance for inconsistently used equipment

Applications:
Automatic lubrication of off-road equipment such as mining, construction, and agricultural machinery. Suitable for use with series progressive or injector-based lubrication systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• A pressure relief valve is required at each pump outlet.
• Torque fittings to 50 in. lbs (5.6 N•m).
• Do not operate the pump without the reservoir attached.
• Fill reservoir with appropriate NLGI grease (up to #2) to the max fill line.
• For higher viscosity fluids, start the pump to rotate the stirring paddle during fill to prevent air pockets.
• Follow the Pressure Relief Procedure before servicing.
• For models using an external controller, start pump operation per controller specifications.
