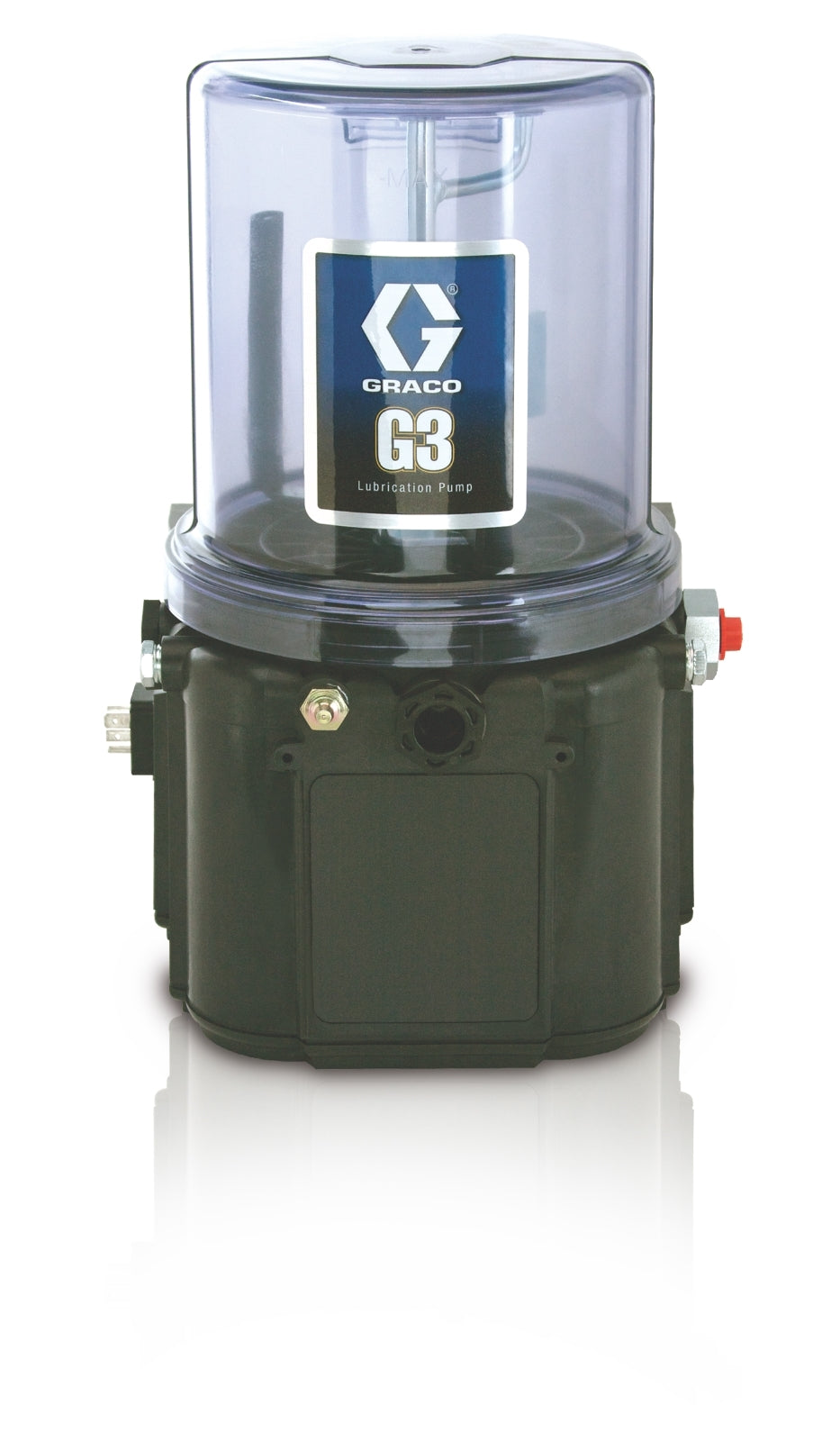

The GRACO 96G041 G3® Standard Grease Lubrication Pump is an electric piston pump designed for reliable, automated lubrication of machinery. It features a robust, high-impact, UV-resistant reservoir suitable for oil or grease up to NLGI #2. This pump is intended for use in off-road equipment and other industrial applications to extend machinery life, reduce operating costs, and increase productivity by delivering consistent lubrication to injector-based and series progressive systems.

Key Features:

• Electric piston pump
• G3 Standard, 8 liter reservoir
• High-impact, UV-resistant reservoir
• Maximum working pressure: 5,100 psi (35.1 MPa)
• Injector-based systems, series progressive systems, single line parallel
• CE, ETL (conforms to UL 73, certified to CSA 22.2 No. 68-09), IP69K
• Flexible design with one adjustable pump element standard (room for two more)
• No internal controller—use with separate or existing machine control for a low-cost solution
• Capable of sending a low level signal to external controller or PLC
• Fault indication to external alarms
• Optional Data Management System™ (DMS)
• Easy maintenance and reliable operation
• Suitable for inconsistently used equipment

Applications:
Off-road equipment, industrial machinery, mining, agriculture, and other applications requiring automated lubrication of injector-based or series progressive systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system, reducing downtime and maintenance costs.
• Ensure the pump is installed in a location that allows easy access for maintenance and monitoring
• Connect the pump to the appropriate power supply (24 VDC for this model)
• Use compatible metering devices and lubrication lines as specified for injector-based or series progressive systems
• Regularly check reservoir levels and monitor for fault indications or low level signals
• Follow all safety and electrical guidelines during installation and operation
