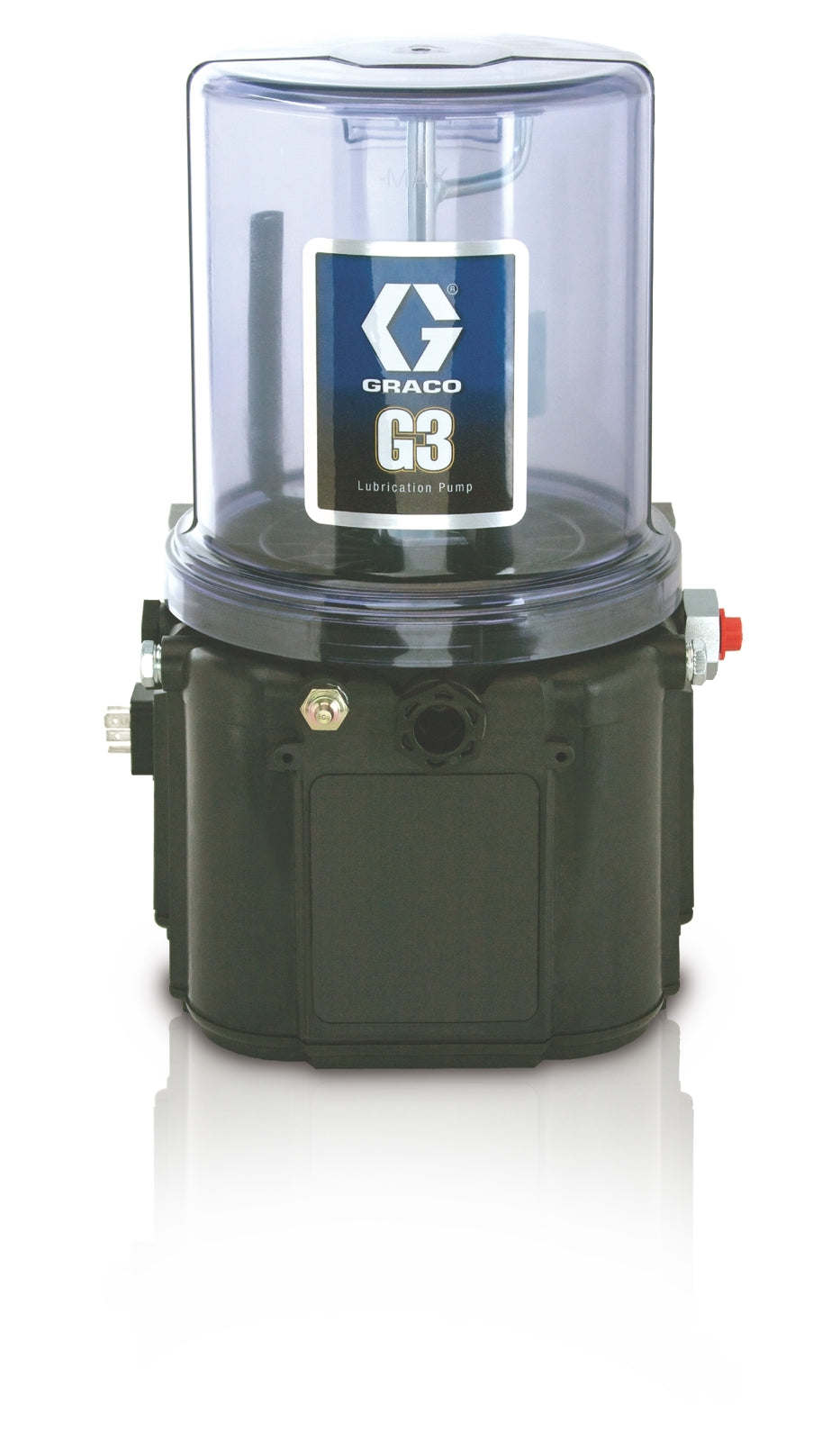

The GRACO 96G043 G3® Standard Grease Lubrication Pump is an electric piston pump designed for automatic lubrication of off-road equipment. It is constructed with a high-impact, UV-resistant reservoir and is intended for dispensing grease up to NLGI #2 or oil with at least 40cSt viscosity. The pump is engineered for reliable, consistent lubrication in demanding environments.

Key Features:

• Electric Piston Pump
• G3® Standard, 8 Liter Reservoir
• High-impact, UV-resistant reservoir
• Maximum working pressure: 5100 psi (35.1 MPa, 351.6 bar)
• Series progressive, single line parallel, injector-based systems
• CE, ETL, IP69K, Conforms to UL 73, Certified to CSA 22.2 No. 68-09
• Auto-Fill Shutoff feature
• Up to three pump elements for higher output
• Easy-to-read LED display (on Max models)
• Monitoring of up to three independent zones (on Max models)
• Programmable machine count feature
• Alarm and warning signals for system shutdown
• Low level indication
• Password protected access to control (on Max models)
• Pre-lube capability
• Easy-to-use navigation keys

Applications:
Automatic lubrication of off-road equipment, including mining, construction, and agricultural machinery. Suitable for use with grease up to NLGI #2 or oil with at least 40cSt viscosity.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure proper electrical supply (90-240 VAC for this model)
• Follow all safety instructions in the manual
• Use appropriate fittings and hoses for the application
• Regularly check reservoir level and system for leaks
• Reset Auto Fill Shut Off using the fill valve as needed
• Regularly inspect and clean the pump and reservoir
• Monitor for fault indications and alarms
• Replace worn or damaged components promptly
• Use only recommended lubricants
