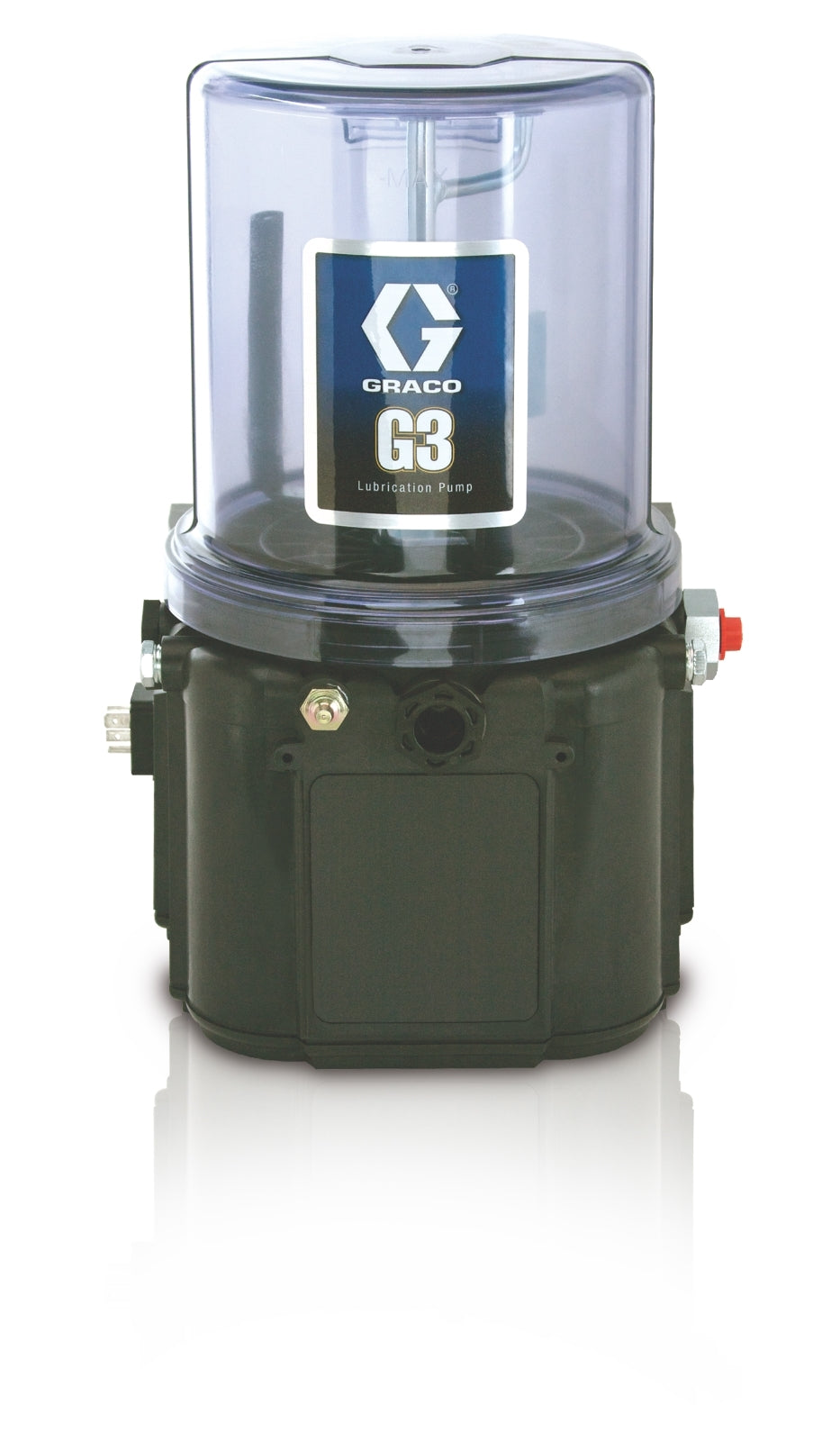

The GRACO 96G048 G3 Standard Grease Lubrication Pump is an electric piston pump designed for automatic lubrication systems. It features a 4-liter, UV-resistant, high-impact reservoir suitable for grease applications. The pump is intended to extend machinery life, reduce operating costs, and increase productivity by delivering consistent lubrication to injector-based and series progressive systems. The construction is robust, designed for industrial environments, and the pump is compatible with a range of NLGI #000–#2 greases.

Key Features:

• Electric Piston Pump
• G3 Standard, 4 Liter
• High-impact, UV-resistant reservoir; robust industrial design
• Maximum working pressure: 5,100 psi (35.1 MPa)
• Injector-based systems, series progressive systems, single line parallel
• IP69K (Ingress Protection rating)
• No internal controller—use with separate or existing machine control for a low-cost solution
• Capable of sending a low level signal to external controller or PLC
• Flexible design: includes one adjustable pump element (standard), with room for two more
• Easy to maintain and reliable for demanding industrial environments
• Suitable for off-road equipment and heavy-duty applications

Applications:
Primarily used in off-road equipment, mining, agriculture, process oil and natural gas, and general industrial lubrication systems. Suitable for contractors, OEMs, and maintenance teams requiring reliable, automated grease delivery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Only use NLGI #000–#2 greases appropriate for your application and operating temperature
• Fill reservoir to the max fill line—do not overfill
• For higher viscosity fluids, start pump to rotate stirring paddle during fill to prevent air pockets
• Do not operate the pump without the reservoir attached
• Torque fittings to 50 in. lbs (5.6 N•m)
• For models using an external controller, start pump operation per your controller specifications
• Regularly check grease levels and refill as needed
• Inspect for leaks and ensure fittings are secure
• Follow manufacturer guidelines for cleaning and maintenance
• Consult with machine and lube manufacturer for specific application details
