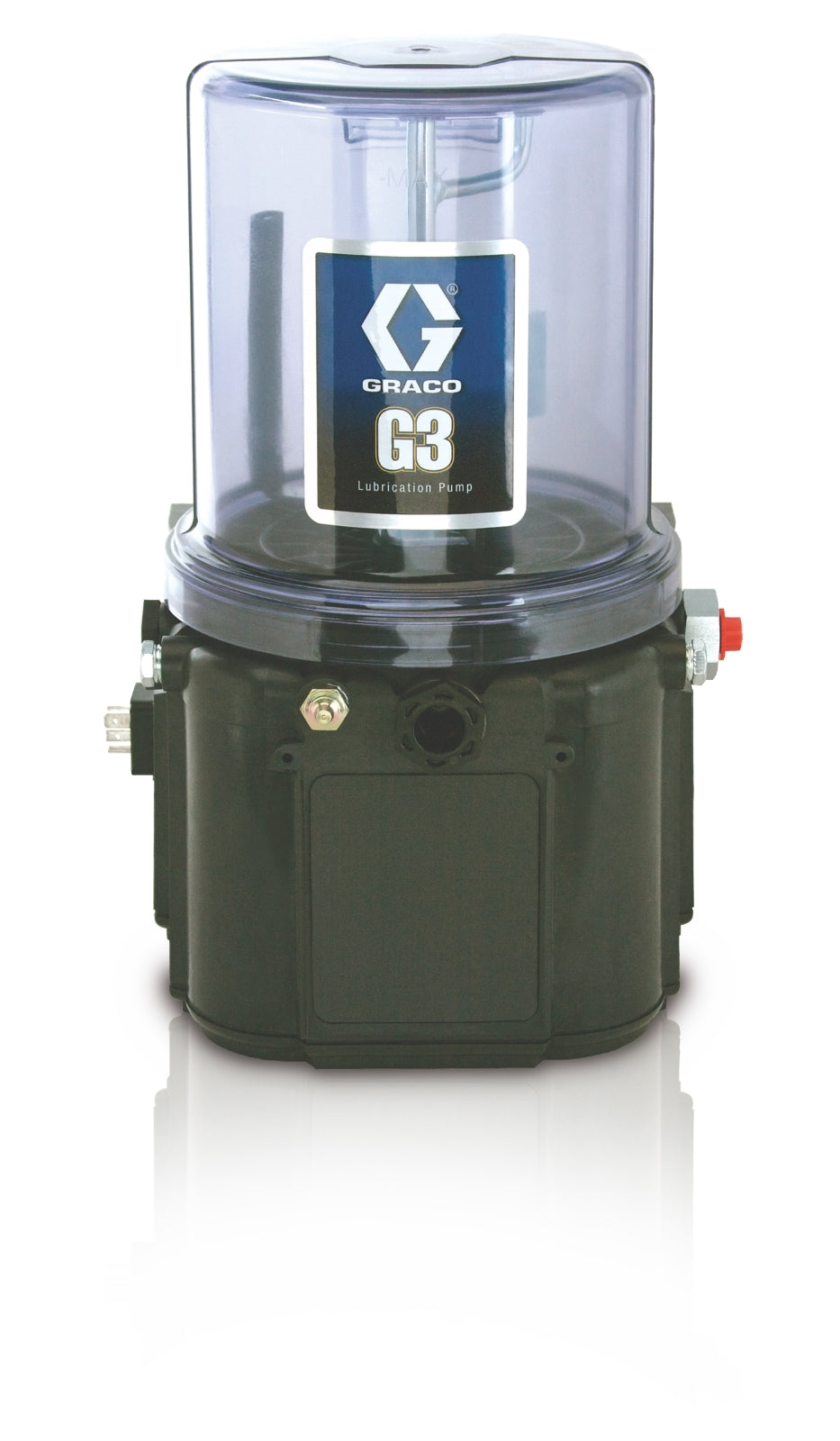

The GRACO 96G050 G3® Standard Oil Lubrication Pump is an electric piston pump designed for dispensing lubricants such as oils and greases (NLGI Grades #000 to #2) in industrial and mobile applications. It features a 2-liter UV-resistant, high-impact reservoir and is constructed from materials including nylon, Trogamid T5004-060, zinc-plated steel, carbon steel, alloy steel, stainless steel, nitrile rubber, bronze, and nickel-plated alnico. The pump is intended for use with injector-based and series progressive lubrication systems, providing reliable and efficient lubrication for off-road equipment and other machinery.

Key Features:

• Electric Piston Pump
• G3 Standard, 2 Liter Reservoir
• Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico
• Maximum Working Pressure: 5100 psi (35.1 MPa, 351.6 bar); Maximum Fill Inlet Pressure: 5000 psi (34.3 MPa, 344.8 bar)
• Injector-Based Systems, Series Progressive Systems
• Advanced flow dynamics to prevent grease separation
• Load minimizing drive for longer life
• Adjustable stroke pump for custom fit
• Up to 3 pump elements (standard: 1, expandable to 3)
• External low level signal capability for integration with external controllers or PLCs
• Rugged, cost-effective design for multiple markets
• Easy lube system set-up, operation, and troubleshooting with three control choices

Applications:
Off-road equipment, in-plant manufacturing, mobile machinery, wind turbines, and other industrial applications requiring reliable automatic lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure the pump is installed according to the manufacturer’s guidelines and local safety regulations.
• Connect to compatible injector-based or series progressive lubrication systems.
• Verify electrical connections and grounding for safe operation.
• Regularly inspect and maintain the pump and reservoir for optimal performance.
• Use only recommended lubricants (NLGI Grades #000 to #2, oils with at least 40cSt).
• Monitor reservoir level and refill as needed.
• Check for leaks and wear on pump elements and seals.
• Clean the pump and reservoir periodically to prevent contamination.
• Follow the recommended maintenance schedule in the equipment manual.
