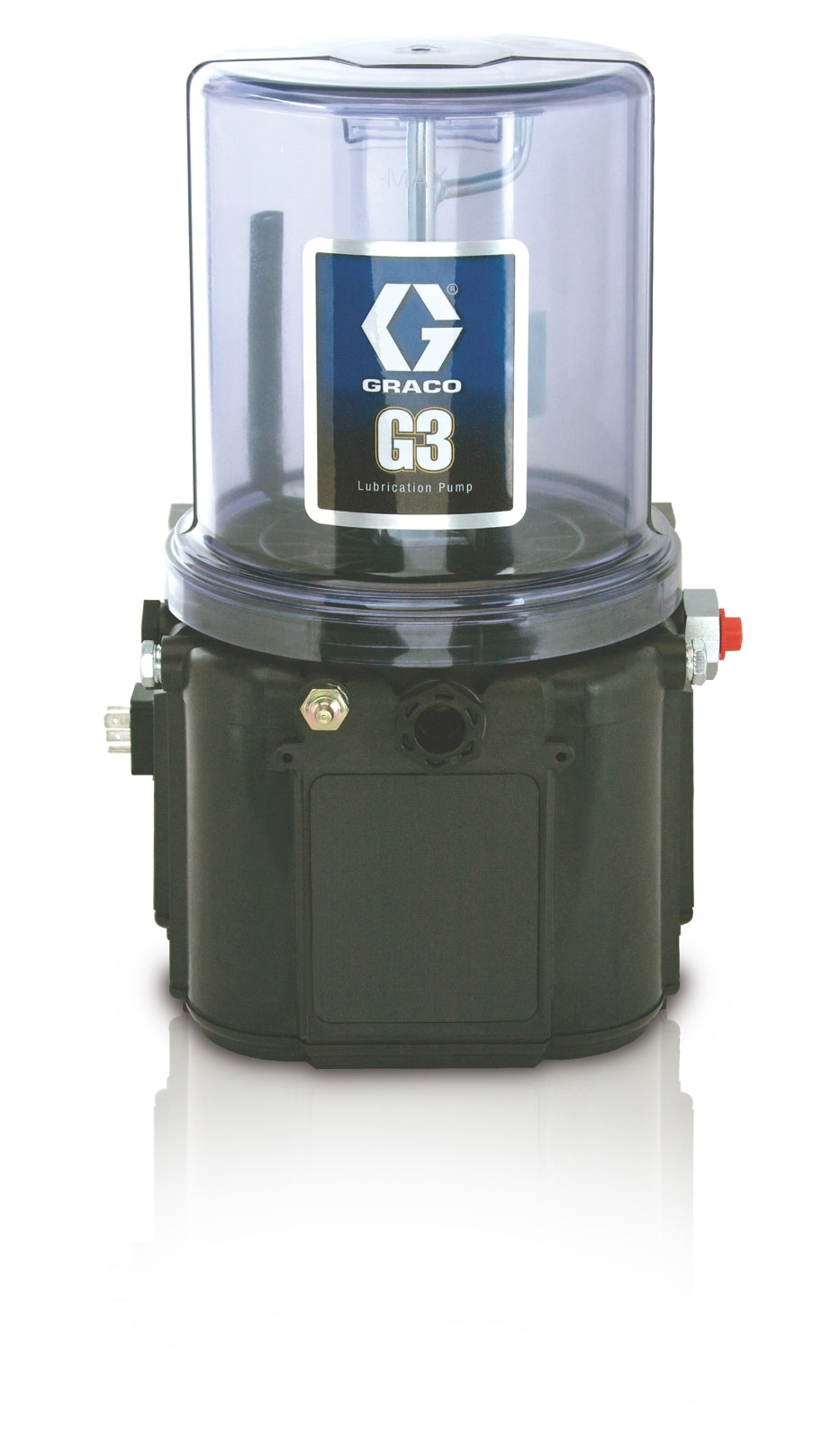

The GRACO 96G052 G3® Standard Oil Lubrication Pump is an electric piston pump designed for dispensing oil and grease in automatic lubrication systems. It features a robust, high-impact, UV-resistant 8-liter reservoir and is intended for use in off-road equipment and other industrial applications requiring reliable, automated lubrication. The pump is constructed for professional use and is not approved for hazardous locations.

Key Features:

• Electric Piston Pump
• G3 Standard, 8 Liter Reservoir
• High-impact, UV-resistant reservoir; metal and engineered plastic components
• Maximum working pressure: 35.1 MPa (5100 psi); Maximum fill inlet pressure: 34.3 MPa (5000 psi)
• Injector-based systems, Series Progressive systems, Single Line Parallel systems
• IP69K; Certified to CAN/CSA Std. 22.2 No 68-09 (for 110-240VAC pumps only; note: 96G052 is 24 VDC, so check for specific certification)
• Flexible design for multiple markets
• Up to 3 pump elements
• External low-level indicator (CPC)
• Maximum run time: 30 minutes
• Durable, easy-to-maintain construction
• Reliable performance for demanding environments

Applications:
Off-road equipment, industrial machinery, and other applications requiring automated lubrication of oil or grease (NLGI Grade #000 to #2, minimum 40cSt viscosity)

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Read all warnings and instructions in the manual before installation and use.
• Ensure the pump is installed in a non-hazardous location.
• Verify voltage compatibility (24 VDC for this model).
• Connect to compatible metering devices (Series Progressive, Single Line Parallel, or Injector-based systems).
• Regularly inspect and maintain the pump and reservoir for optimal operation.
