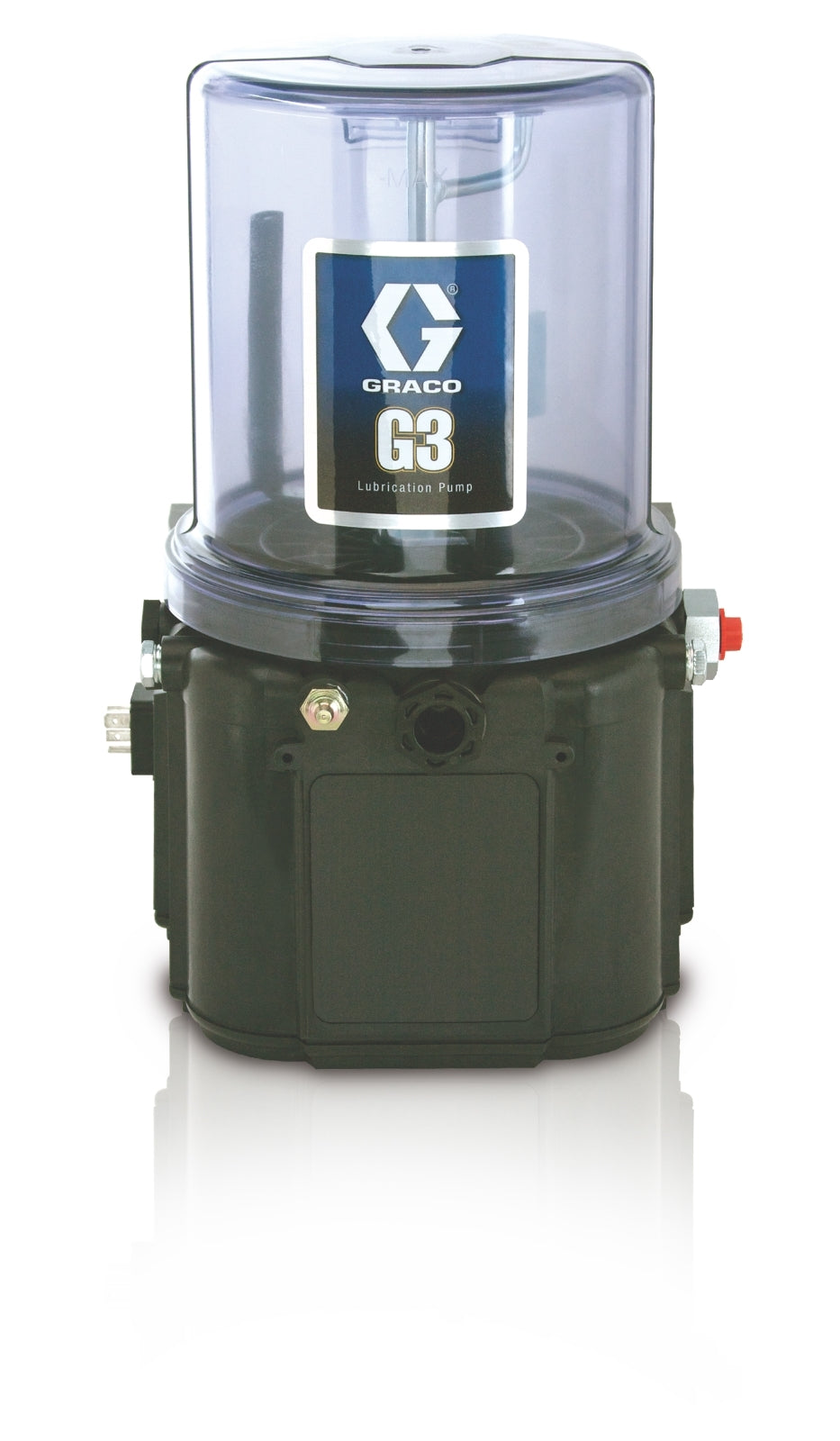

The G3® Standard Oil Lubrication Pump is an electric piston pump designed for professional use in automatic lubrication systems. It is constructed with durable materials for harsh environments and is intended to dispense NLGI Grades #000 to #2 greases and oils with at least 40cSt viscosity. The pump is used to extend vehicle and equipment life by providing reliable, automated lubrication for off-road and industrial machinery.

Key Features:

• Electric Piston Pump
• G3 Standard, 2 Liter Reservoir
• Durable, high-impact, UV-resistant reservoir; robust pump housing
• Maximum working pressure: 5100 psi (35.1 MPa, 351.6 bar); Maximum fill inlet pressure: 5000 psi (34.3 MPa, 344.8 bar)
• Injector-based systems, Series Progressive systems; compatible with NLGI Grades #000 to #2 greases and oils (minimum 40cSt)
• Certified to CAN/CSA Std. 22.2 No 68-09 (for 110-240VAC pumps only); IP69K rating for water and dust resistance
• Multiple reservoir sizes available (2, 4, 8, 12, or 16 liters)
• External low level indicator (DIN)
• Up to 3 pump elements
• Maximum run time: 30 minutes
• Designed for harsh working conditions and high wear-and-tear environments
• Reliable, cost-effective, and easy to maintain

Applications:
Off-road equipment, industrial machinery, and vehicles requiring automatic lubrication. Suitable for environments with changing temperatures and challenging grease types.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Read all warnings and instructions in the manual before installation and operation.
• Ensure the pump is installed in a location that allows for easy access for maintenance and monitoring.
• Connect to compatible injector-based or series progressive lubrication systems.
• Verify electrical supply matches pump requirements (90-240 VAC).
• Regularly check reservoir levels and pump operation for consistent lubrication.
