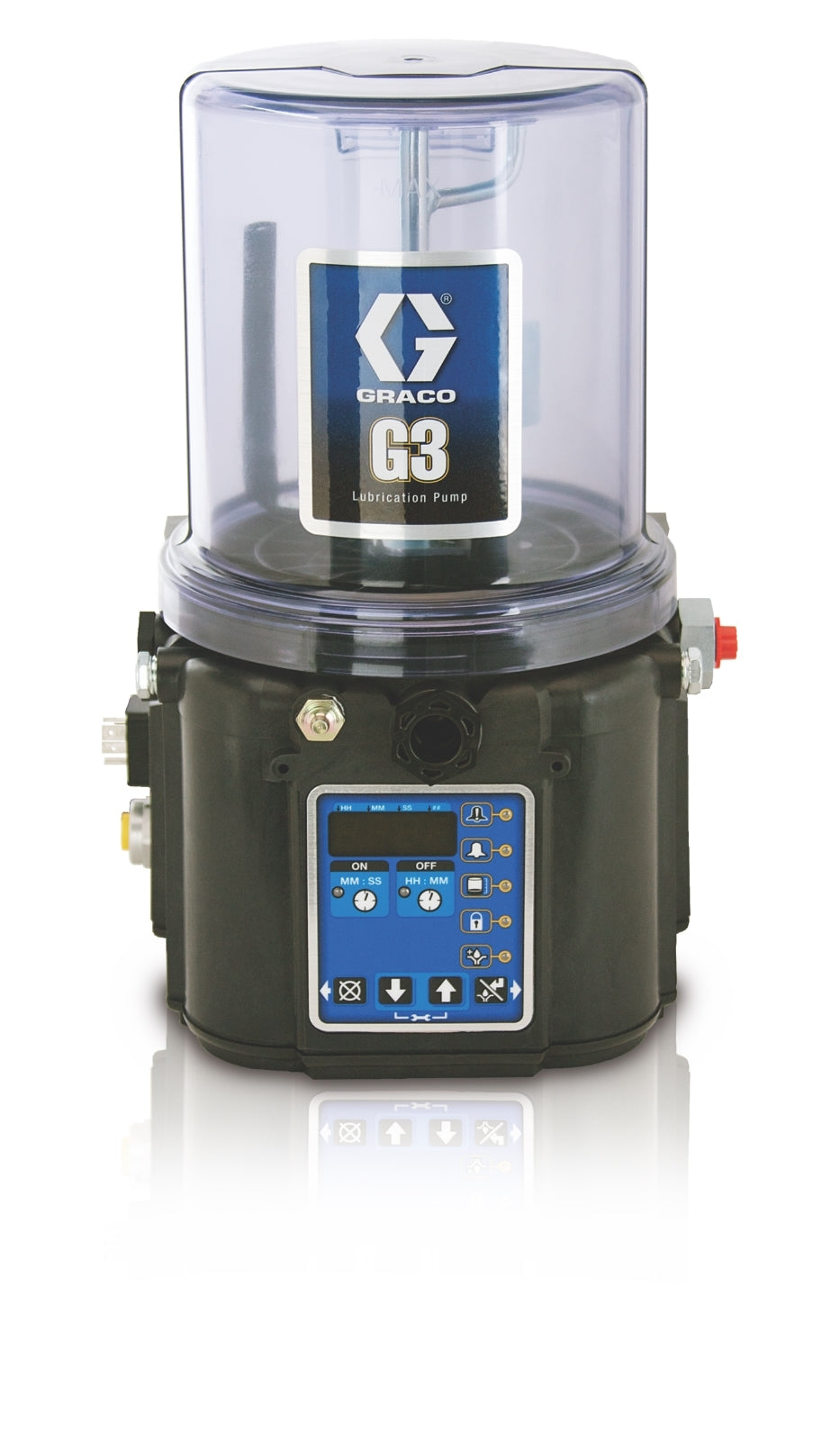

The GRACO 96G068 G3® Pro is a grease lubrication pump designed for automatic lubrication systems. It is constructed for professional use and intended to dispense NLGI Grades #000 to #2 greases and oils with at least 40cSt viscosity. The pump is engineered for reliability and ease of maintenance, making it suitable for a variety of industrial, fleet, and agricultural applications.

Key Features:

• Automatic grease lubrication pump
• G3® Pro, 24 VDC, 4 Liter reservoir
• Professional-grade, robust design for industrial environments
• Pump output pressure: 5100 psi (35.1 MPa, 351.6 bar); Fill inlet pressure: 5000 psi (34.4 MPa, 344.7 bar)
• Compatible with NLGI Grades #000 to #2 greases and oils with at least 40cSt viscosity
• Conforms to ANSI/UL 73; Certified to CAN/CSA C22.2 No 68
• Built-in controller with selectable pump on/pump off timer
• Low level indicator provides low warning and shut-down alarm
• Remote manual run initiates lube cycle on-demand
• Designed for ease of maintenance and reliability
• Suitable for continuous duty cycle in demanding environments

Applications:
Industrial machinery, fleet vehicles, mining equipment, agricultural machinery, and other applications requiring reliable automatic lubrication.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing systems.
• Mount the pump securely using designated mounting holes and provided configurations
• Ensure the pump is installed upright for oil models; grease models may have different orientation requirements
• Do not operate the pump without the reservoir attached
• Monitor the system during filling to prevent overfilling
• When changing greases, always use compatible fluids or greases
• Consult the machine and lube manufacturer for specific application details
