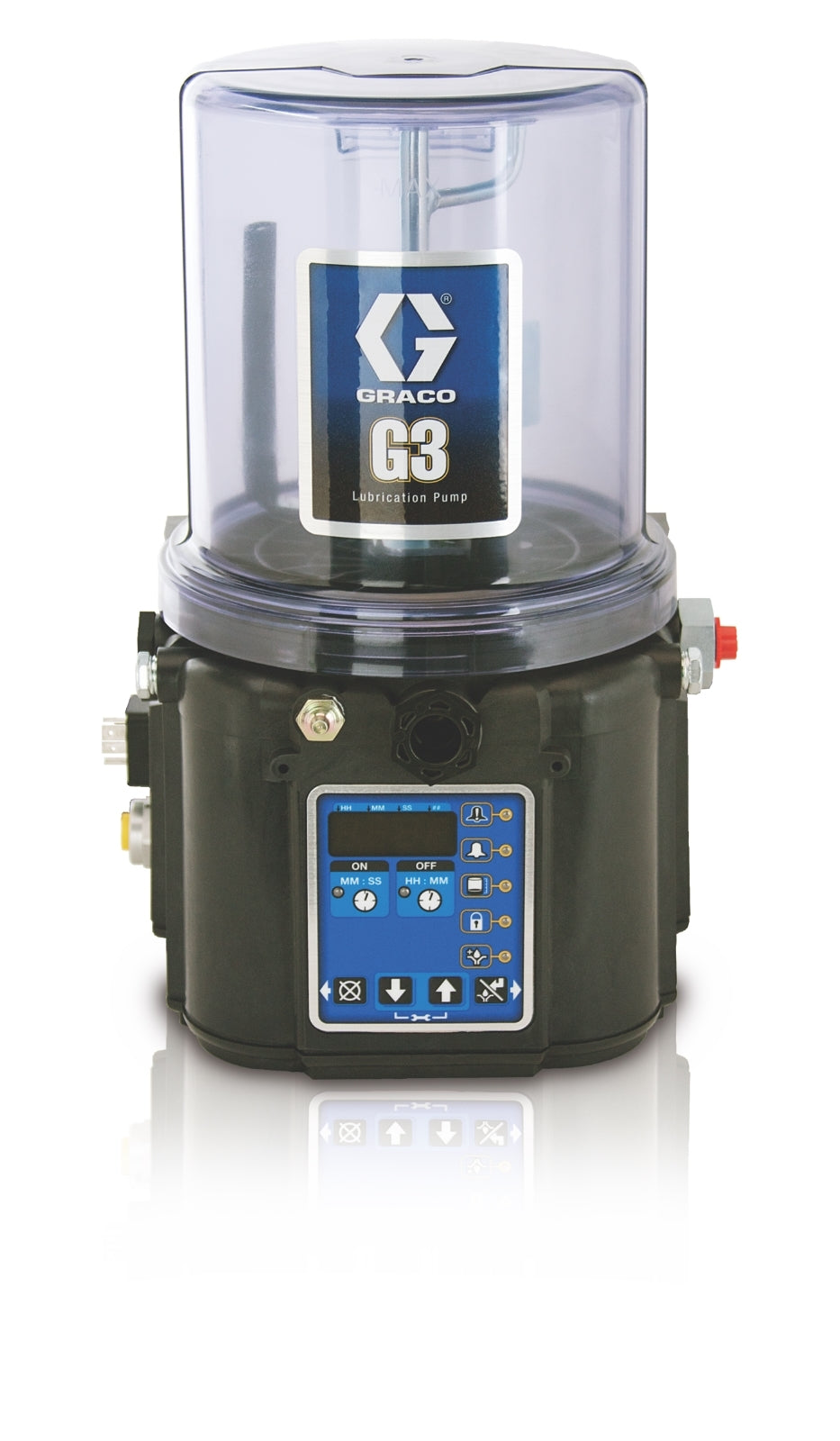

The GRACO 96G136 G3® Pro is an electric grease lubrication pump designed for automatic lubrication systems. It is constructed with robust materials suitable for industrial environments and is intended to reliably dispense grease or oil to machinery, ensuring consistent lubrication for equipment that requires periodic or continuous lubrication cycles.

Key Features:

• Electric grease lubrication pump
• G3 Pro, 8 Liter reservoir
• Industrial-grade materials, robust design for harsh environments
• Adjustable pump output per element per minute: 0.12 in³, 0.18 in³, 0.25 in³ (2 cm³, 3 cm³, 4 cm³)
• Max pressure: 5100 psi (352 bar)
• Compatible with NLGI #000 to #2 greases and oil with at least 40cSt viscosity
• CE, ETL, IP69K; Conforms to UL 73, certified to CSA 22.2 No. 68-09
• Built-in controller with selectable pump on/off timer
• Low level indicator with warning and shut-down alarm
• Manual run initiates lube cycle on-demand
• Fault indication to external alarms
• Optional Data Management System (DMS)
• Easy-to-use navigation keys
• Reliable for inconsistently used equipment
• Pre-lube capability
• Password protected access to control

Applications:
Used in industrial and commercial settings for automatic lubrication of machinery, including mining, agriculture, manufacturing, and vehicle service applications. Suitable for progressive or injector-based lubrication systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure only compatible NLGI #000 to #2 greases or oil with at least 40cSt viscosity are used
• Do not overfill the reservoir
• Do not operate the pump without the reservoir attached
• A pressure relief valve is required at each pump outlet
• Monitor system while filling the reservoir to prevent overfilling
• Follow all safety instructions and pressure relief procedures before servicing
• Regularly check for low level warnings and alarms
• Monitor for fault indications
• Use only compatible fluids or greases when changing lubricants
• Consult the manual for detailed maintenance procedures
