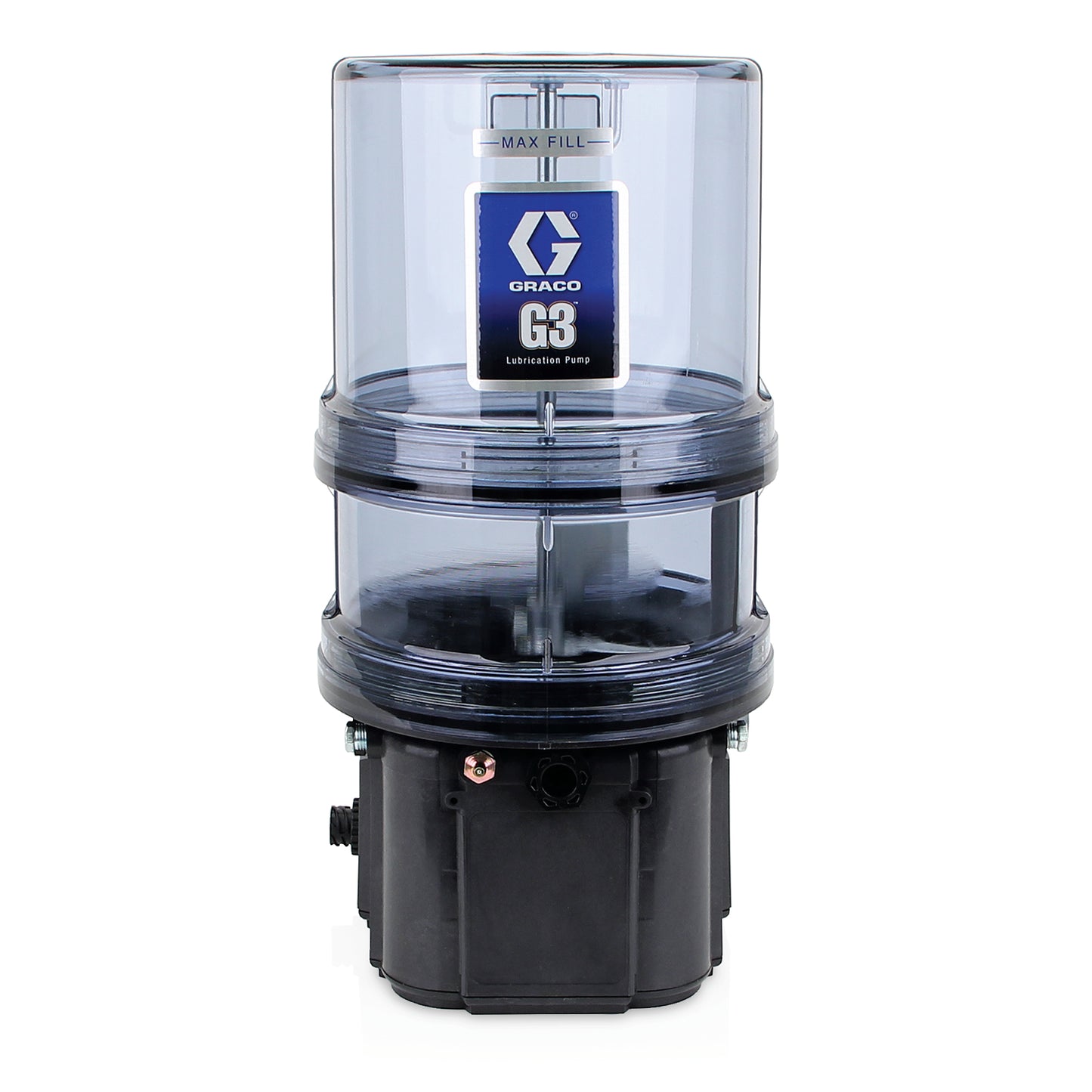

The GRACO 96G138 G3® Pro is a robust, automatic grease lubrication pump designed for professional use in industrial and commercial settings. It is constructed from durable materials suitable for harsh environments and is intended to deliver precise, reliable lubrication to machinery, extending equipment life and reducing maintenance costs. The pump is engineered for compatibility with progressive lubrication systems and is not approved for use in explosive atmospheres or hazardous locations.

Key Features:

• Automatic grease lubrication pump
• G3® Pro, 8 Liter reservoir
• Maximum pump output pressure: 5100 psi (35.1 MPa, 351.6 bar); Maximum fill inlet pressure: 5000 psi (34.4 MPa, 344.7 bar)
• Designed for use with NLGI Grades #000 to #2 greases and oil with at least 40cSt; compatible with series progressive lubrication systems
• Conforms to ANSI/UL 73; Certified to CAN/CSA C22.2 No 68
• Flexible design with adjustable pump elements (room for up to three elements, one standard)
• Built-in controller with selectable pump on/off timer
• Low level indicator with warning and shut-down alarm
• Manual run initiates lube cycle on-demand (remote option available)
• Password protection for settings
• Pre-lube function can initiate lube cycle on start-up
• Reliable, easy to maintain, and suitable for continuous duty cycles

Applications:
Ideal for use in industrial, mining, agricultural, and commercial environments where reliable, automated lubrication of machinery is required. Suitable for use with a wide range of equipment, including heavy-duty vehicles, conveyors, and production machinery.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise system integrity and void warranties.
• Ensure the pump is installed in a clean, dry, and well-ventilated area
• Only use compatible NLGI #000 to #2 greases or oil with at least 40cSt
• Do not operate the pump without the reservoir attached
• Monitor system while filling the reservoir to prevent overfilling
• When changing greases, always use compatible fluids or greases
• Consult the equipment manual for detailed installation and maintenance procedures
• Regularly check and maintain the reservoir and pump elements
• Monitor for leaks and unusual noises
• Follow manufacturer’s recommendations for lubrication intervals and system checks
• Keep the area around the pump clean and free of debris
