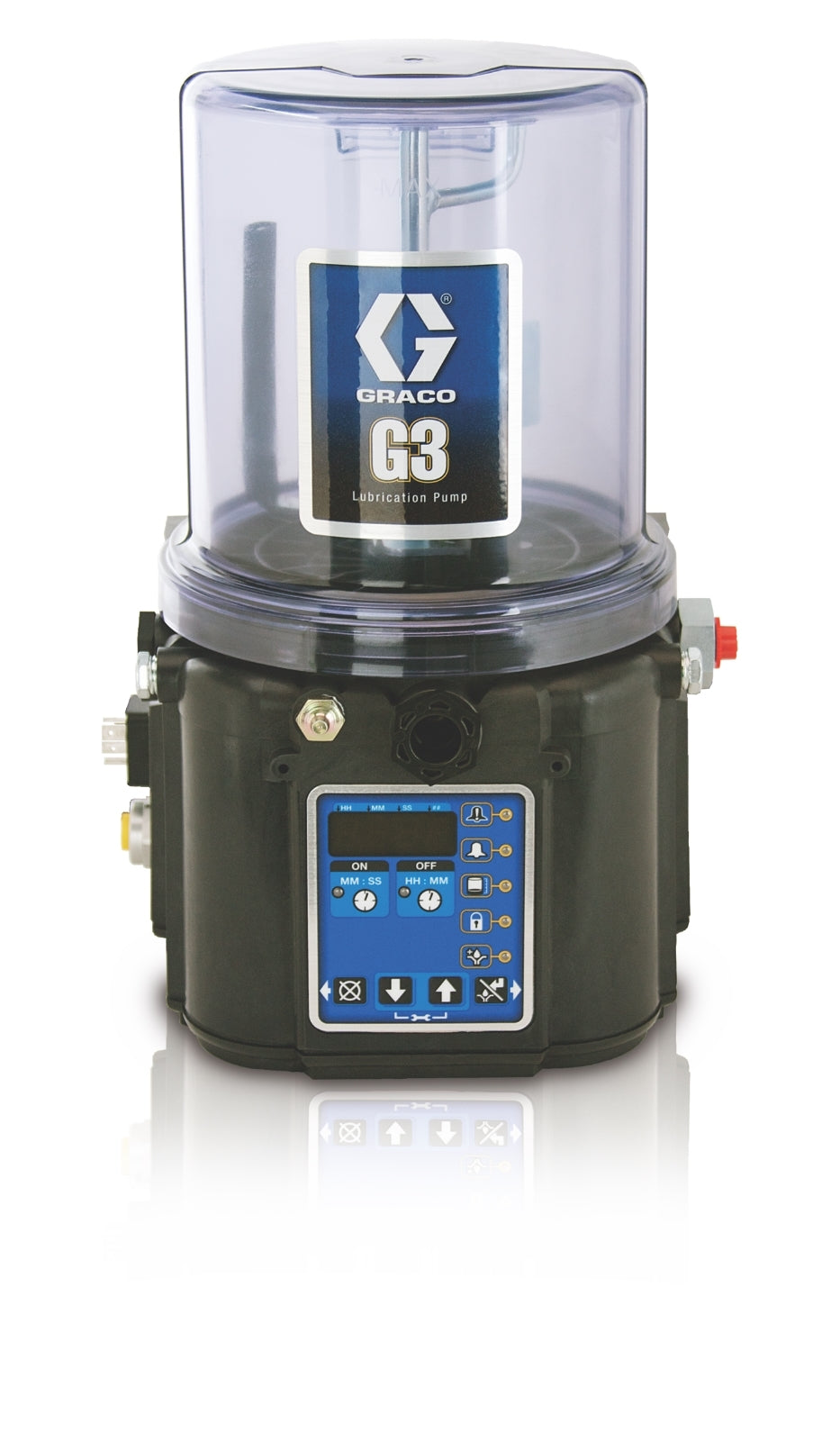

The GRACO G3® Pro Grease Lubrication Pump is a robust, electrically powered pump designed for automatic dispensing of NLGI #000 to #2 greases and oils with at least 40cSt viscosity. It is constructed for professional use in industrial and vehicle service environments, providing reliable and efficient lubrication for machinery and equipment. The pump is not approved for use in explosive atmospheres or hazardous locations.

Key Features:

• Automatic grease lubrication pump
• G3® Pro, 8 Liter reservoir
• Industrial-grade materials for durability
• Pump output pressure: 5100 psi (35.1 MPa, 351.6 bar); Fill inlet pressure: 5000 psi (34.4 MPa, 344.7 bar)
• NLGI #000 to #2 greases and oils with at least 40cSt viscosity
• Conforms to ANSI/UL 73; Certified to CAN/CSA C22.2 No 68
• Cost-effective design for multiple markets and applications
• Includes one adjustable pump element (standard), with room for two more
• Auto-fill shut-off for safe reservoir refilling
• Reliable and easy to maintain
• Not for use in explosive atmospheres or hazardous locations

Applications:
Suitable for automatic lubrication systems in industrial, vehicle service, and maintenance environments where reliable grease dispensing is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing systems.
• Select a location that adequately supports the weight of the pump, lubricant, and all plumbing/electrical connections
• Do not operate the pump without the reservoir attached
• Monitor the system while filling the reservoir to prevent overfilling
• When changing greases, always use compatible fluids or greases
• Consult the equipment manual for detailed installation and maintenance procedures
