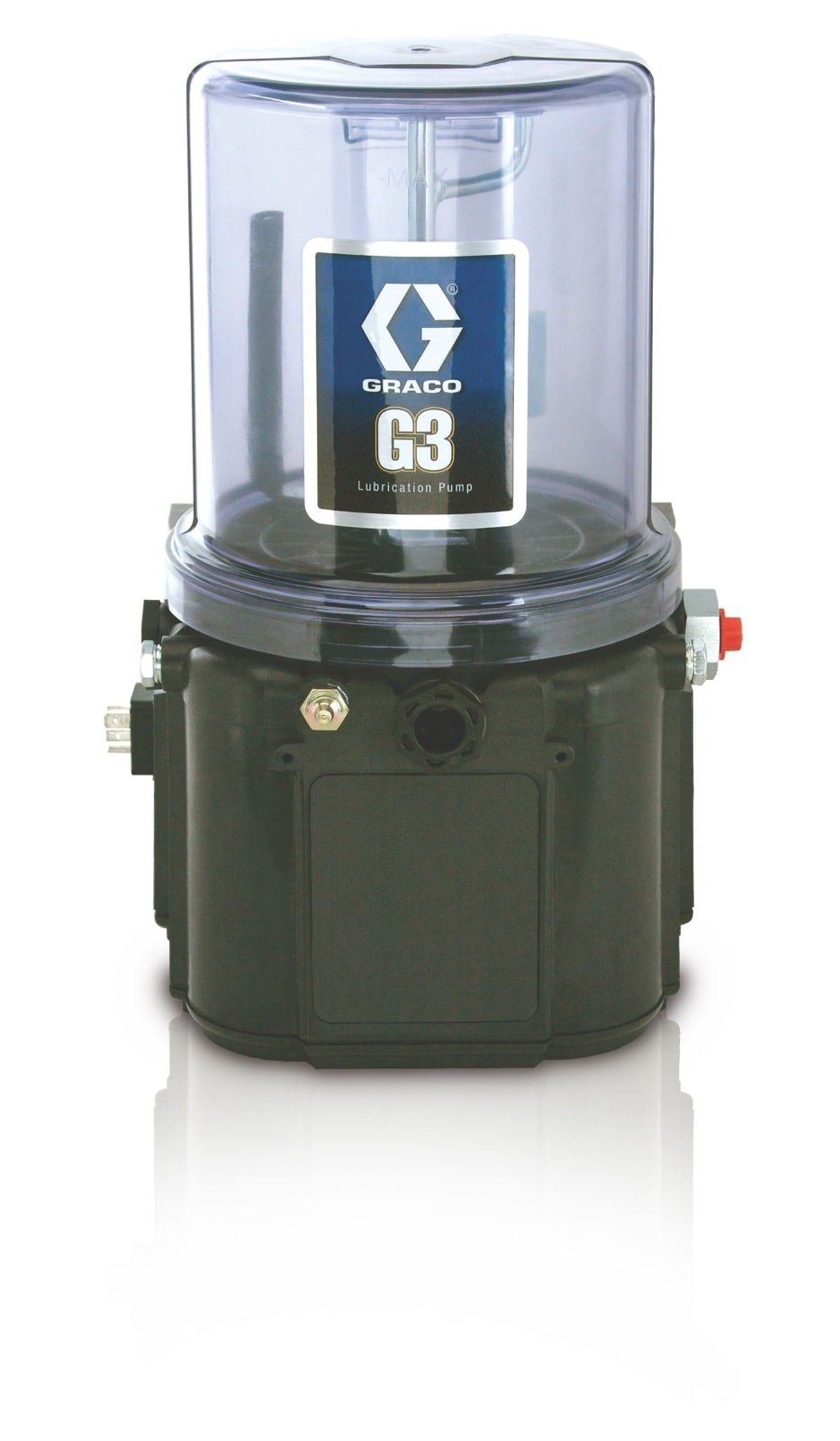

The GRACO 96G199 G3® Standard Grease Lubrication Pump is an electric piston pump designed for reliable, automated lubrication of industrial machinery. It features a robust, high-impact, UV-resistant reservoir and is intended for use in demanding environments such as off-road equipment, manufacturing, and wind turbines. The pump is constructed to handle grease and is engineered to extend machinery life, reduce operating costs, and increase productivity.

Key Features:

• Electric Piston Pump
• G3 Standard, 12 Liter Reservoir
• High-impact, UV-resistant reservoir; rugged design for industrial environments
• Maximum Working Pressure: 35.1 MPa (5100 psi); Maximum Fill Inlet Pressure: 344.7 bar (5000 psi)
• Compatible with injector-based and series progressive systems; works with up to 3 pump elements
• IP69K (Ingress Protection Rating)
• Flexible design with adjustable pump elements
• Three control choices for easy setup and troubleshooting
• External low level signal capability for integration with external controllers or PLCs
• No controller included (for use with separate or existing machine control)
• Reliable, cost-effective, and easy to maintain

Applications:
Off-road equipment, in-plant manufacturing, mobile machinery, wind turbines, and other industrial applications requiring automated grease lubrication.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper electrical connection according to the specified voltage (24 VDC)
• Integrate with injector-based or series progressive lubrication systems as required
• Connect external low level signal to your controller or PLC for monitoring
• Follow all safety and operational guidelines in the equipment manual
• Regularly check reservoir levels and refill as needed
• Inspect pump elements and connections for wear or leaks
• Clean and maintain the pump according to manufacturer recommendations
