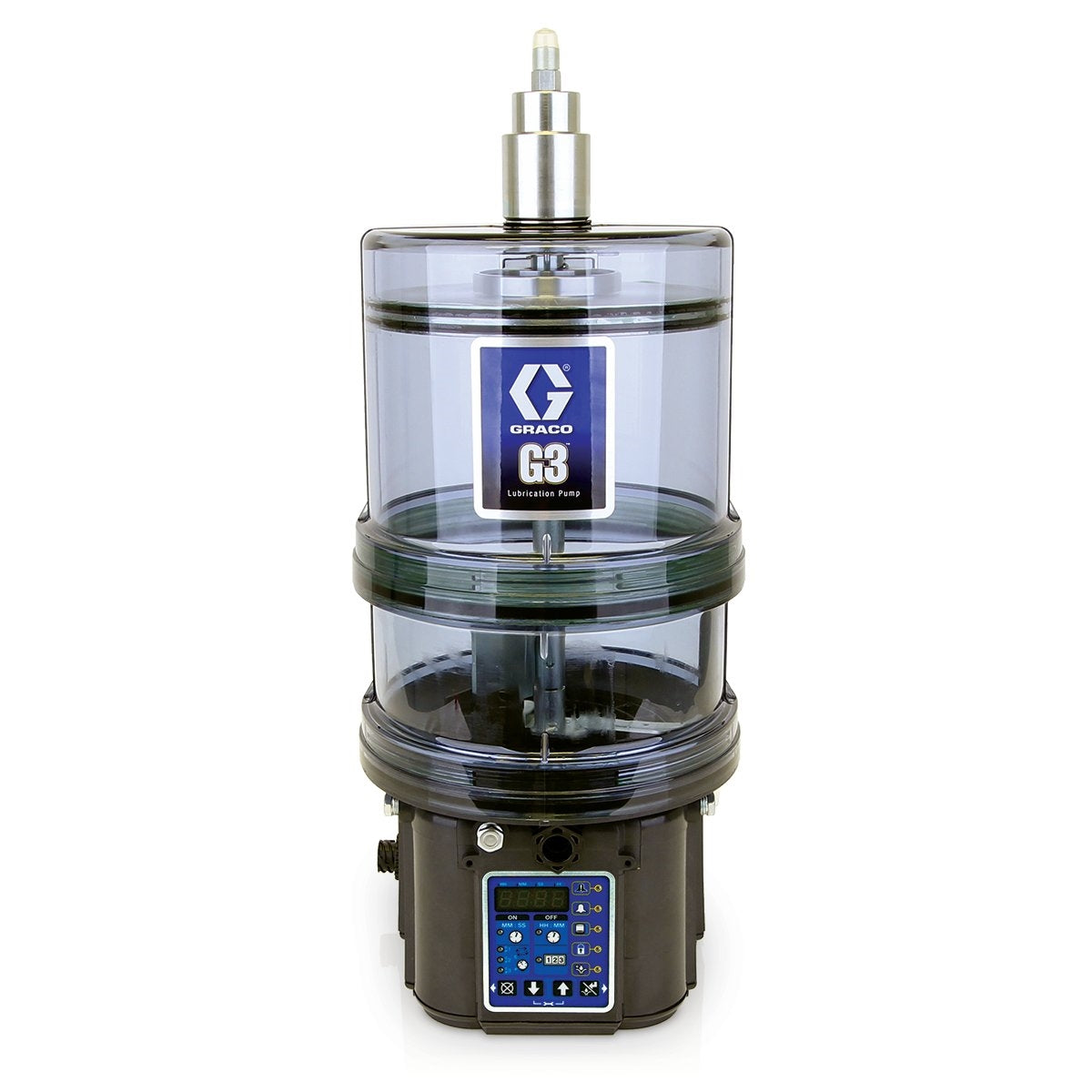

The GRACO 96G213 G3® Standard Grease Lubrication Pump is a robust, automatic lubrication system designed for reliable grease dispensing in industrial environments. It is constructed for professional use with durable materials suitable for harsh conditions. The pump is intended to provide consistent, automated lubrication to machinery, reducing manual intervention and enhancing equipment longevity.

Key Features:

• Automatic grease lubrication pump
• G3 Standard, 8 Liter reservoir
• Durable industrial-grade materials, DIN connector
• Adjustable output per element per minute: 0.12 in³ (2 cm³), 0.18 in³ (3 cm³), or 0.25 in³ (4 cm³) depending on spacer configuration
• Maximum pressure: 5100 psi (352 bar)
• Compatible with NLGI #000 to #2 greases and oils with at least 40cSt viscosity
• Conforms to ANSI/UL 73, certified to CAN/CSA Std. 22.2 No. 68-09
• Auto-Fill Shut Off for safe and efficient reservoir filling
• External low level indicator for timely maintenance
• DIN connector for easy integration
• Easy-to-use volume control via spacers
• Reliable performance for intermittently used equipment
• Not approved for use in explosive atmospheres or hazardous locations

Applications:
Ideal for industrial machinery requiring automated, reliable grease lubrication, including mining, agriculture, manufacturing, and other heavy-duty applications.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and warranty support.
• Do not operate the pump without a reservoir attached
• Ensure only compatible greases (NLGI #000 to #2) are used
• Clean fittings before filling to prevent contamination
• Do not overfill the reservoir
• Consult machine and lube manufacturer for optimal grease selection and application temperature
• For remote fill, use appropriate pumps (hand, pneumatic, or electric transfer)
