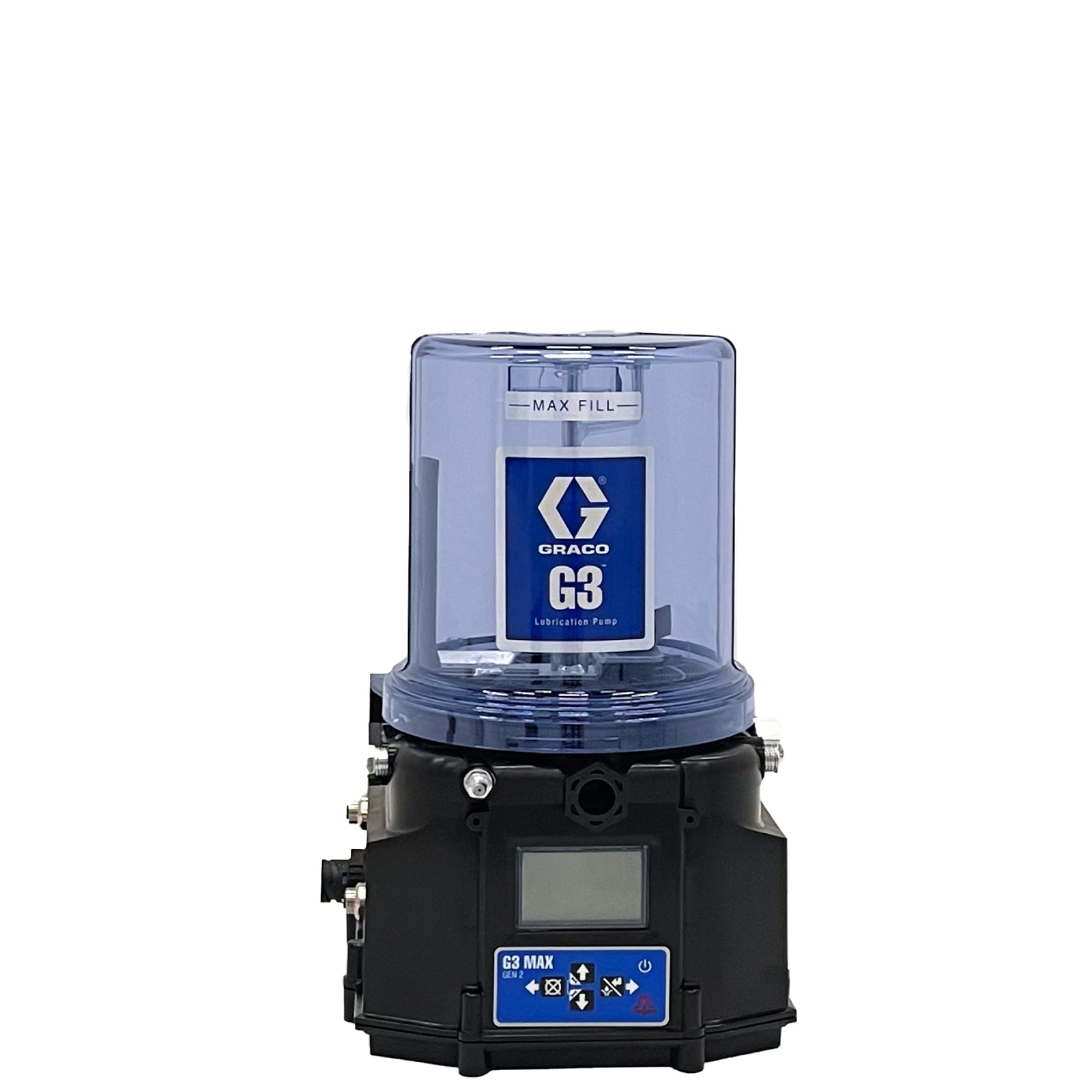

The GRACO 96G547 G3 Max Pump is an electric piston pump designed for reliable, automated lubrication of machinery. It is constructed with robust materials suitable for industrial environments and is intended for use in both off-road and on-road vehicle applications, as well as other industrial equipment requiring consistent grease delivery. The pump is compatible with injector-based and series progressive lubrication systems.

Key Features:

• Electric Piston Pump
• G3 Max, 12 VDC, 12L Reservoir
• Rugged, industrial-grade materials; IP69K rated for harsh environments
• Maximum working pressure: 5,100 psi (352 bar)
• Injector-based systems, series progressive systems
• CE, ETL (conforms to UL 73, certified to CSA 22.2 No. 68-09), IP69K
• LCD screen for detailed pump status and operation
• Low level indicator with alert and shut-down alarm
• Manual run initiates lubrication on-demand
• Password protection for settings
• Pre-lube function for cycle initiation on start-up
• Bright LEDs with nearly 180° viewing angle for status confirmation from a distance
• DIN alarm relay connection for remote status indication
• Compatible with normally open vent valves
• Machine count input for equipment with inconsistent use
• Flexible design with multiple reservoir sizes and controller options

Applications:
Off-road equipment, on-road vehicles, industrial machinery requiring automated grease lubrication

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and warranty support, reducing downtime and maintenance costs.
• Ensure proper alignment and secure mounting of the pump
• Connect power and sensor inputs according to the manual
• Use recommended lubricants and check reservoir levels regularly
• Test alarm and indicator functions after installation
• Consult the manual for specific wiring and programming instructions
