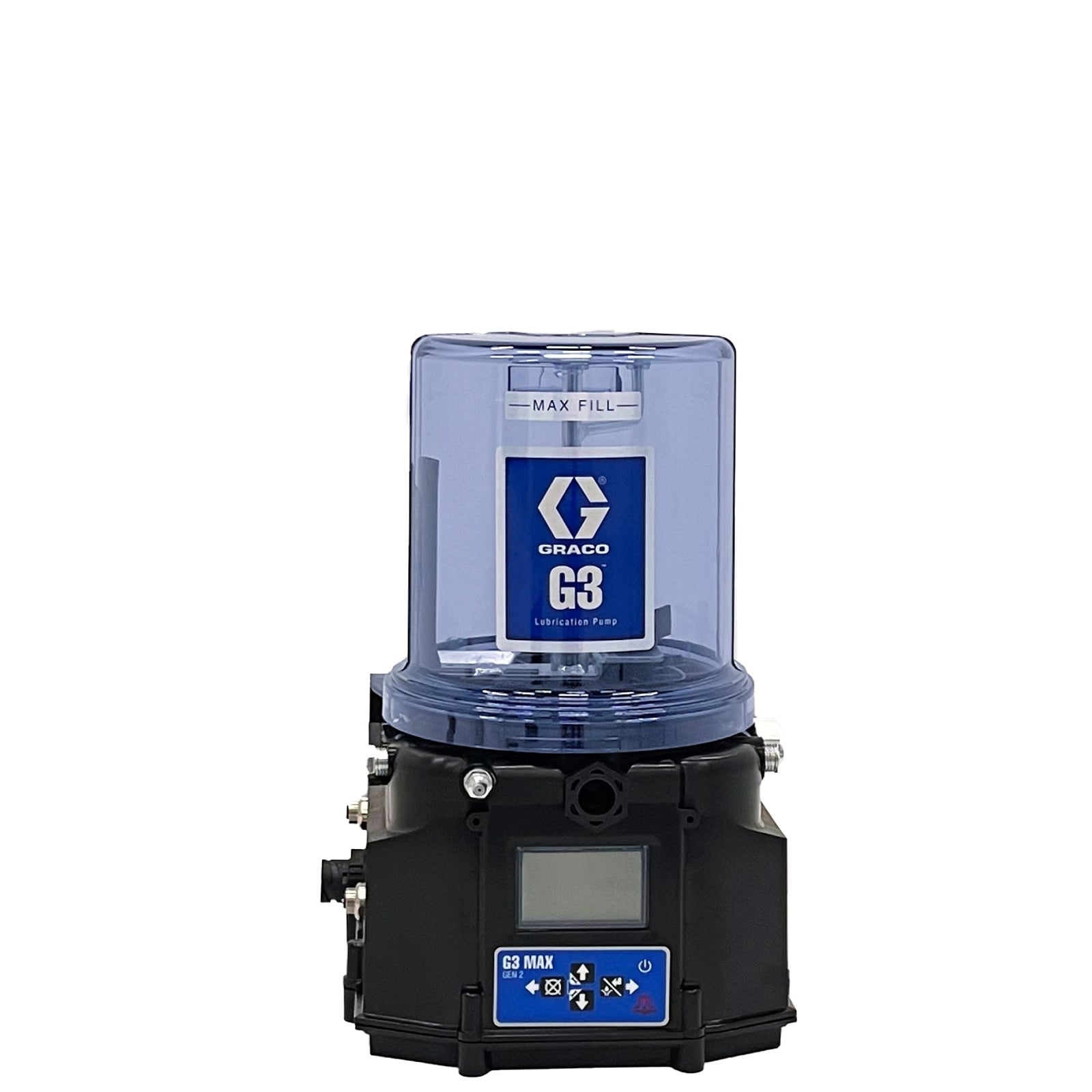

The GRACO G3 Max Pump is an electric piston pump designed for automatic lubrication systems. It is constructed for robust industrial use and is intended to deliver grease or oil to injector-based and series progressive lubrication systems in off-road and on-road equipment. The pump features a 4-liter reservoir with a follower plate and low-level paddle for efficient grease management.

Key Features:

• Electric piston pump
• G3 Max, 24 VDC, 4-liter reservoir
• Industrial-grade materials for durability
• Adjustable pump output per element per minute: 0.12 in³, 0.18 in³, 0.25 in³ (2 cm³, 3 cm³, 4 cm³)
• Max pressure: 5100 psi (352 bar)
• Injector-based systems, series progressive systems; compatible with NLGI grades #000 to #2 greases and oils with at least 40cST
• CE, ETL, IP69K; Conforms to UL 73, certified to CSA 22.2 No. 68-09
• Easy-to-read LED/LCD display for status and operation
• Monitoring of up to three independent zones
• Programmable machine count feature
• Alarm and warning signals for system shutdown
• Low level indication
• Password-protected access to controls
• Pre-lube capability
• Easy-to-use navigation keys
• CPC-7 I/O connector for power, remote button, and alarms for telematics
• M12 connectors for vent valve, pressure sensor, machine count, and cycle switch

Applications:
Off-road equipment, on-road vehicles, and other industrial machinery requiring reliable automatic lubrication

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety of the lubrication system.
• Turn off and disconnect power before servicing equipment
• Connect only to grounded electrical outlets
• Use only 3-wire extension cords
• Follow all safety instructions in the manual
• Ensure proper reservoir and system compatibility before installation
• Regularly check reservoir level and system status via display
• Monitor for alarm or warning signals
• Replace pump elements as needed using genuine kits
• Keep system clean and free from contaminants
