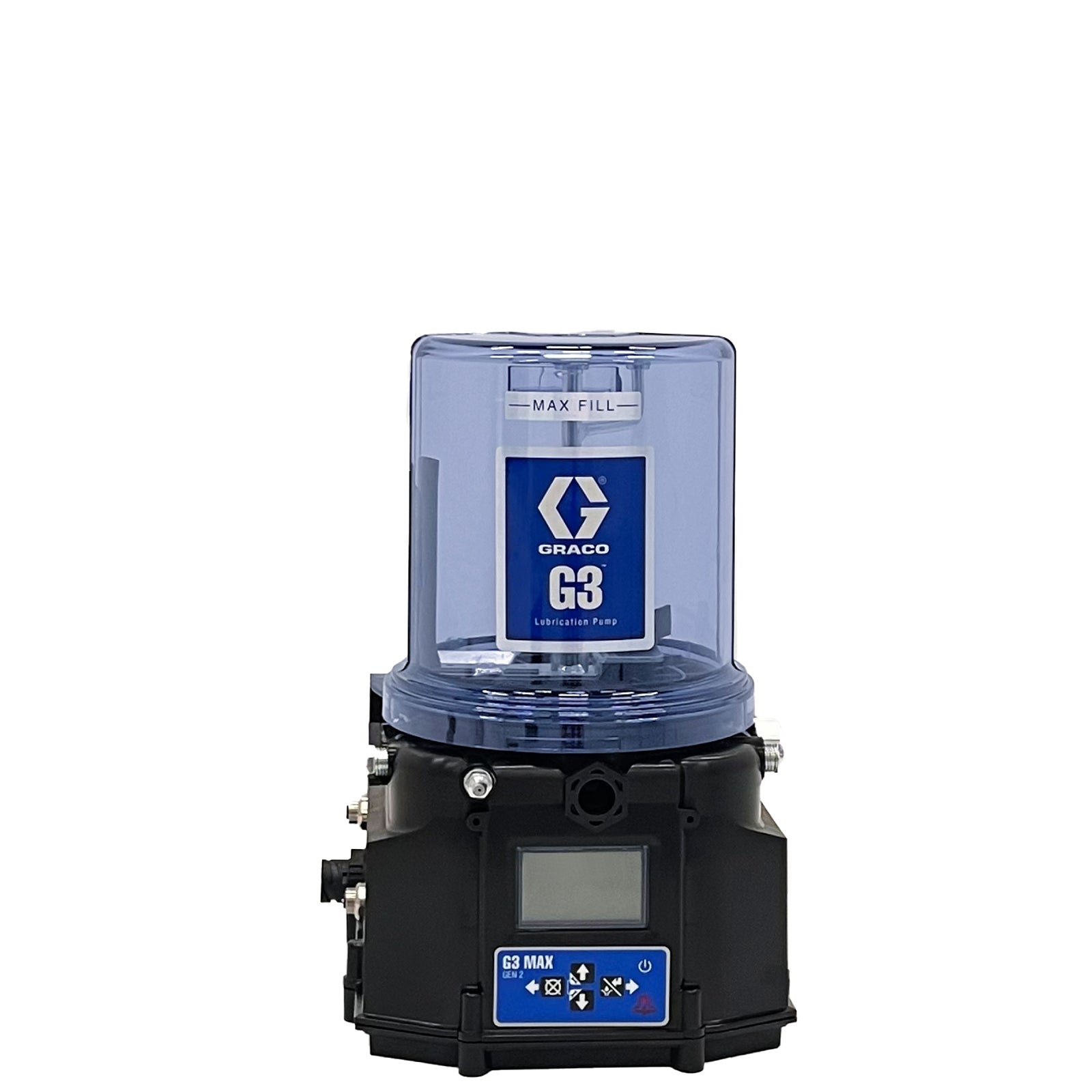

The GRACO G3 Max is an electric piston pump designed for reliable, automated lubrication of machinery. It is constructed with robust materials suitable for industrial environments and is intended for use with oil or grease in injector-based or series progressive lubrication systems. Its primary function is to extend machinery life, reduce operating costs, and increase productivity by delivering precise lubrication to critical points.

Key Features:

• Electric Piston Pump
• G3 Max, 8 Liter Reservoir (Note: The exact part number 96G569 is not directly listed in available documentation, but the closest match is the 8L G3 Max oil pump, part number 96G596. The G-24M2-4LFL00-RMCD0A0VP appears to be a custom or variant code, not a standard catalog number.)
• Industrial-grade materials, robust housing
• Maximum pressure: 5100 psi (352 bar) for G3 series
• Injector-based systems, series progressive systems, single line parallel systems
• CE, ETL, IP69K, conforms to UL 73, certified to CSA 22.2 No. 68-09
• Bright LEDs with nearly 180° viewing angle for status confirmation
• LCD screen for detailed pump status and operation
• Low level indicator with alert and shut-down alarm
• Manual run (remote option available)
• Password protection for settings
• Pre-lube function for cycle initiation on start-up
• Machine count input for inconsistently used equipment
• DIN alarm relay connection for remote status indication
• Compatible with normally open vent valves
• Easy-to-use navigation keys
• Monitoring of up to three independent zones (for some models)

Applications:
Off-road equipment, on-road vehicles, industrial machinery requiring automated lubrication with oil or grease up to NLGI #2

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems, reducing downtime and maintenance costs.
• Ensure power supply matches pump requirements (90-240 VAC for this model)
• Connect to compatible metering devices (series progressive or injector-based)
• Use appropriate connectors (DIN Form-A for power input and alarm relay output, M12 for vent valve)
• Install in a location with good visibility for LED indicators and LCD screen
• Follow manufacturer’s guidelines for reservoir filling and venting
• Regularly check and maintain pump and reservoir for optimal performance
