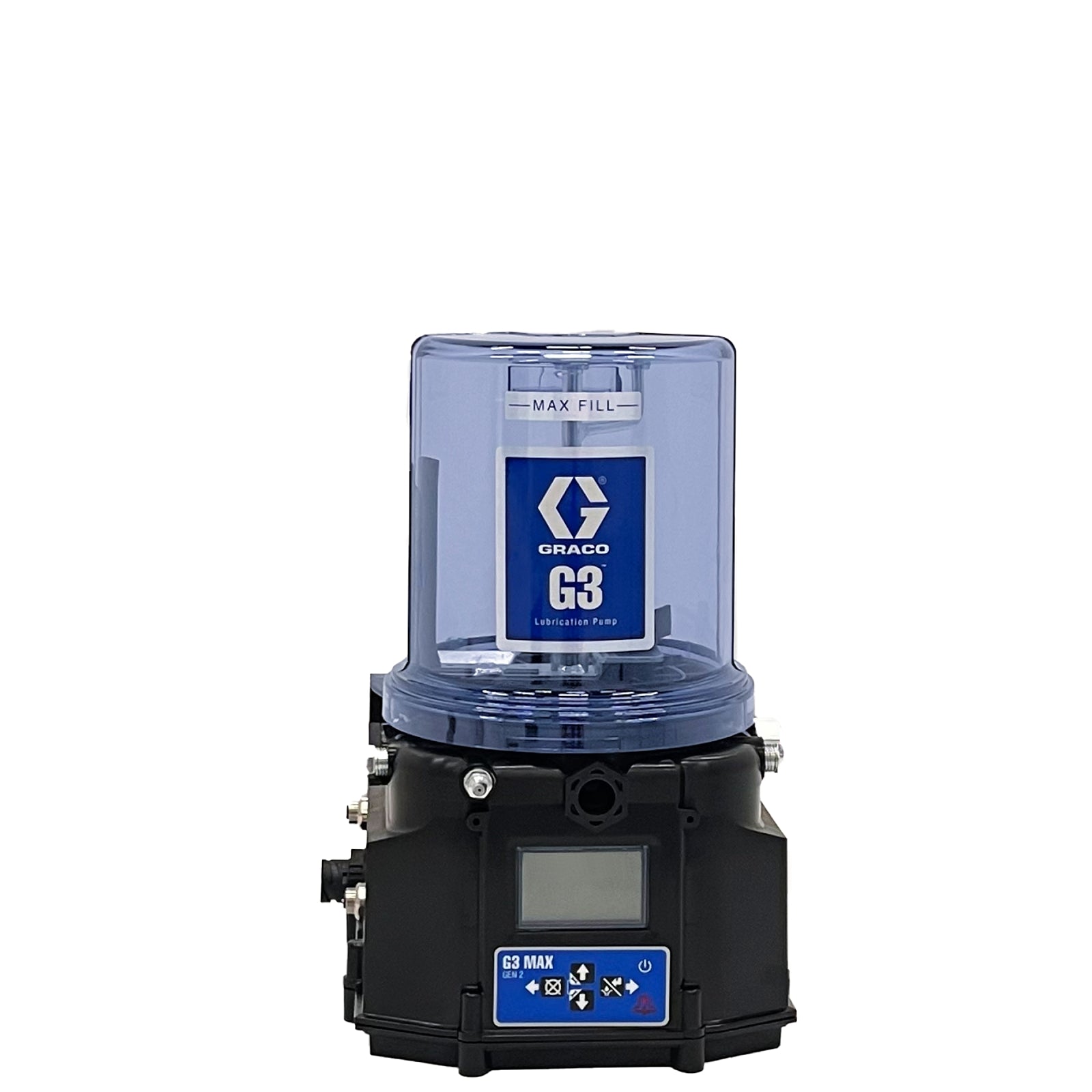

The GRACO 96G573 G3® Max is an electric piston pump designed for automatic grease lubrication systems. It features an 8-liter reservoir with a follower plate and low level paddle, and is constructed for robust industrial use. Its primary function is to deliver precise, automated lubrication to machinery, extending equipment life, reducing operating costs, and increasing productivity. The pump is compatible with both injector-based and series progressive lubrication systems.

Key Features:

• Electric Piston Pump
• G3® Max, 8 Liter Reservoir
• Industrial-grade, robust housing with IP69K rating
• Max Pressure: 5100 psi (352 bar)
• Injector-based systems, series progressive systems, single line parallel
• CE, ETL (conforms to UL 73, certified to CSA 22.2 No. 68-09), IP69K
• LCD screen for detailed pump status and operation
• Bright LEDs with nearly 180° viewing angle for status confirmation from a distance
• Low level indicator with alert and shut-down alarm
• Manual run and remote run options
• Password protection for settings
• Pre-lube function for start-up cycles
• Machine count input for inconsistently used equipment
• DIN alarm relay connection for stack light integration
• Compatible with normally open vent valves
• Easy-to-use navigation keys
• Monitoring of up to three independent zones
• Programmable machine count feature
• Alarm signal for lube system shutdown
• Warning signal prior to shutdown

Applications:
Off-road equipment, on-road vehicles, and other industrial machinery requiring automated grease lubrication

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems, reducing downtime and maintenance costs.
• Ensure proper alignment and secure mounting of the pump
• Connect power input using DIN Form-A connectors
• Use M12 connectors for vent valve and sensor inputs
• Verify compatibility with cycle switch or pressure sensor for feedback
• Follow manufacturer’s guidelines for wiring and system integration
• Regularly check reservoir level and system alarms
• Perform routine maintenance as recommended in the manual
