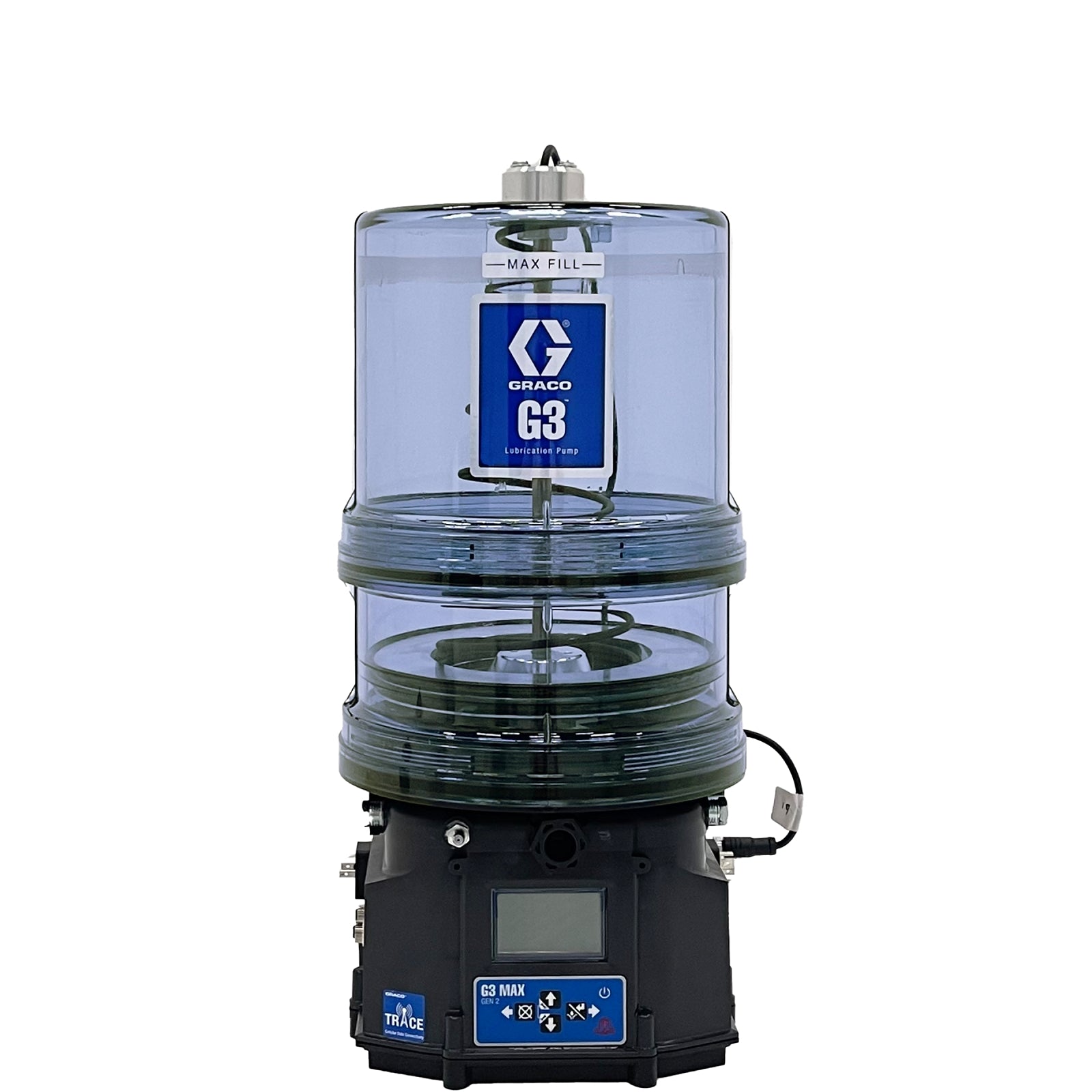

The GRACO G3 Max is an electric piston pump designed for automatic lubrication systems. It is constructed for robust industrial use and is intended to dispense oil or grease (up to NLGI #2) in demanding environments such as off-road equipment and on-road vehicles. The pump is engineered for reliability and ease of maintenance, making it suitable for a wide range of industrial and mobile applications.

Key Features:

• Electric piston pump
• G3 Max, 8L reservoir, 24V DC
• Industrial-grade materials, IP69K rated for harsh environments
• Adjustable pump output per element per minute: 0.12 in³, 0.18 in³, 0.25 in³ (2 cm³, 3 cm³, 4 cm³)
• Max pressure: 5100 psi (352 bar)
• Compatible with series progressive and injector-based systems; for use with oil or grease up to NLGI #2
• CE, ETL, IP69K; Conforms to UL 73, certified to CSA 22.2 No. 68-09
• Easy-to-read LED display
• Monitoring of up to three independent zones
• Programmable machine count feature
• Alarm and warning signals for system shutdown
• Low level indication
• Password protected access to control
• Pre-lube capability
• Easy-to-use navigation keys
• Bright LEDs with nearly 180° viewing angle
• Reservoir level indicator

Applications:
Off-road equipment, on-road vehicles, industrial machinery requiring automatic lubrication with oil or grease up to NLGI #2

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise system integrity and void warranties.
• Ensure proper mounting and secure electrical connections
• Install a pressure relief valve at each pump outlet as required
• Follow all safety instructions and pressure relief procedures before servicing
• Use only compatible lubricants as specified
• Regularly check reservoir level and system status via the LED display
• Consult the manual for detailed wiring and setup instructions
• Regularly inspect for leaks and wear
• Clean plastic parts with recommended solvents only
• Monitor system alarms and warnings
• Schedule routine maintenance as per manufacturer guidelines
