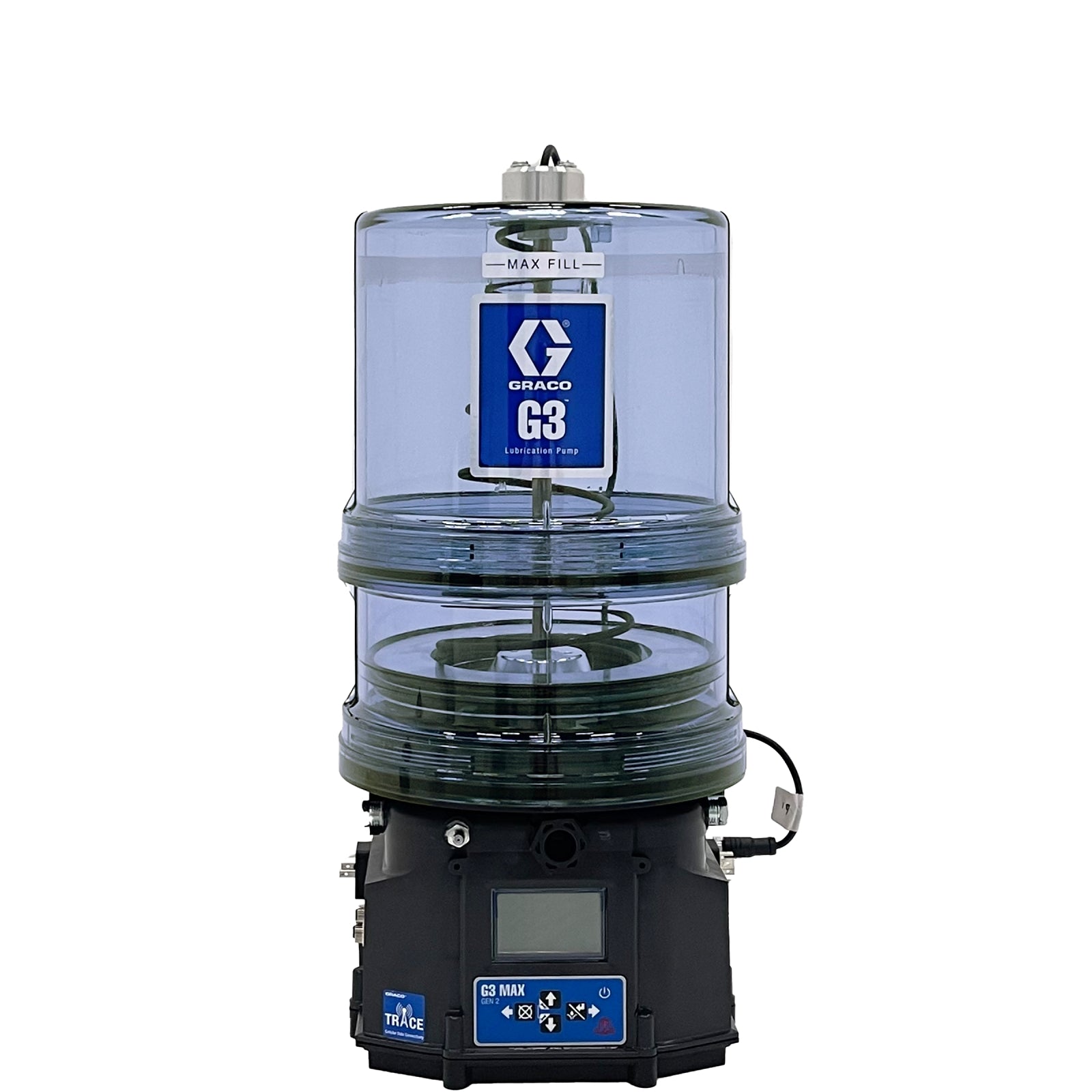

The GRACO G3 Max Pump is an electric piston pump designed for reliable, automated lubrication of off-road and on-road vehicles and equipment. It is constructed for durability and is intended to deliver oil or grease (up to NLGI #2) to injector-based and series progressive lubrication systems. The specific model referenced features a 24 VDC power supply and an 8-liter reservoir.

Key Features:

• Electric Piston Pump
• G3 Max, 8 Liter Reservoir
• Rugged, designed for harsh environments
• Adjustable pump output per element per minute: 0.12 in³, 0.18 in³, 0.25 in³ (2 cm³, 3 cm³, 4 cm³)
• Maximum working pressure: 5,100 psi (352 bar)
• Injector-based systems, series progressive systems, single line parallel systems
• CE, ETL, IP69K, conforms to UL 73, certified to CSA 22.2 No. 68-09
• Bright LEDs for status visibility from a distance
• Reservoir level indicator
• Low level paddle
• Remote manual run capability
• Alarms for telematics
• Vent valve
• Pressure sensor (analog or digital)
• Machine count and cycle switch
• Flexible design with multiple controller and power options
• Easy maintenance and high reliability

Applications:
Automated lubrication for off-road equipment (mining, construction, agriculture) and on-road vehicles (trucks, buses, etc.)

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure correct voltage and power supply (24 VDC for this model)
• Mount the pump in a location protected from extreme temperatures and contaminants
• Connect to compatible metering devices and sensors as per system requirements
• Follow all safety and electrical guidelines during installation
• Regularly check reservoir level and system alarms for maintenance
