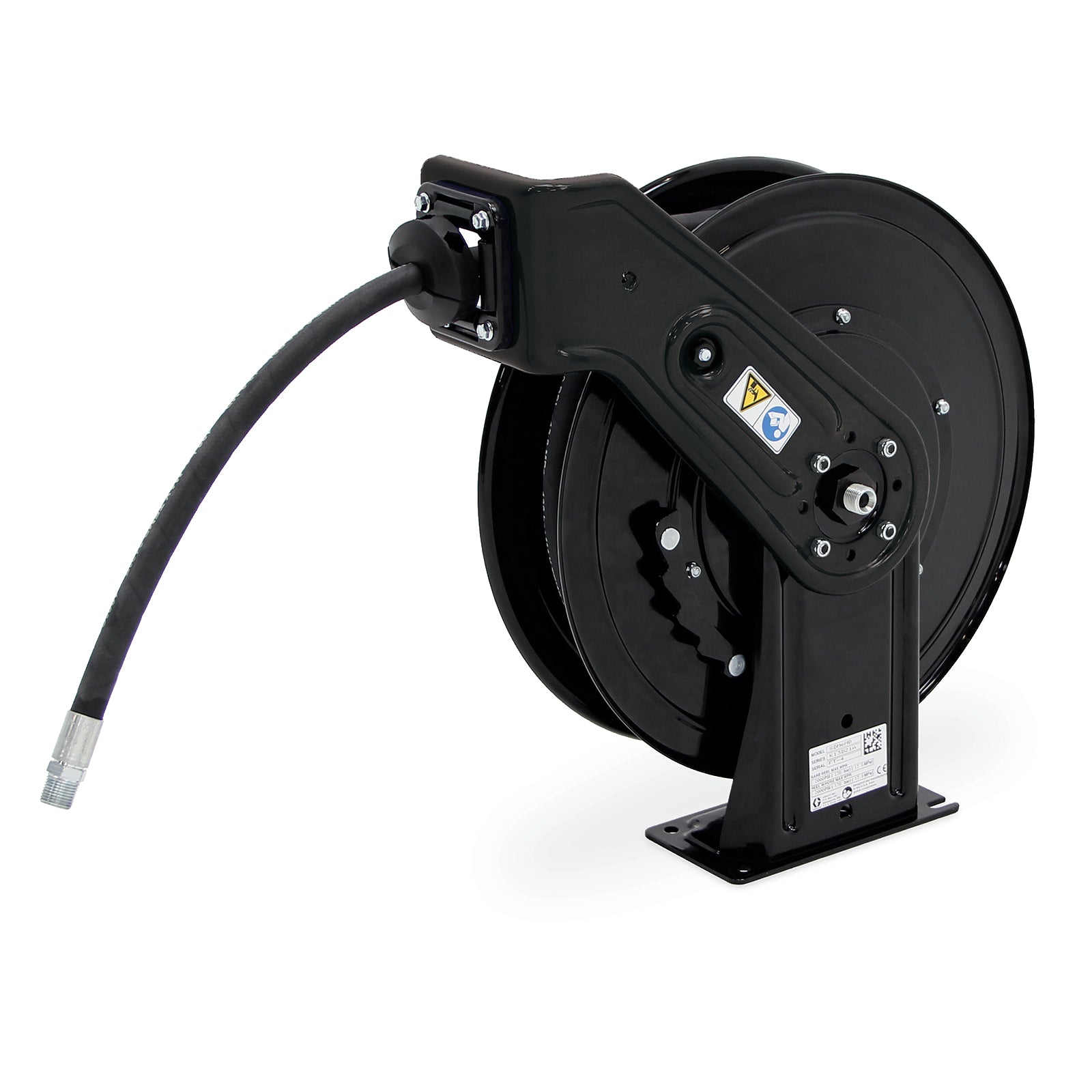

The GRACO SDM33D is a heavy-duty oil hose reel designed for overhead mounting. It features a 1/2 inch (13 mm) inlet and a 1/2 inch x 35 ft (13 mm x 11 m) hose, constructed for reliable oil transfer in industrial and vehicle service environments. The reel is made from robust materials for durability and is intended for use with GRACO lubrication and fluid handling equipment.

Key Features:

• Oil hose reel
• SDX™ 10
• Black, single pedestal frame, overhead mount
• Maximum working pressure: 2000 psi (138 bar)
• Designed for oil transfer; compatible with GRACO lubrication systems
• Overhead mounting for space efficiency
• Durable construction for industrial environments
• Reliable oil transfer with minimal maintenance
• Single pedestal frame for stability

Applications:
Used in vehicle service centers, industrial lubrication systems, and maintenance facilities for efficient and safe oil transfer.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment.
• Mount the reel overhead for best access and space utilization
• Ensure proper alignment and secure mounting to prevent vibration or movement
• Connect using appropriate NPT fittings for leak-free operation
• Regularly inspect hose and connections for wear or leaks
• Periodically check hose integrity and reel operation
• Clean the reel and hose to prevent contamination
• Lubricate moving parts as recommended by GRACO
