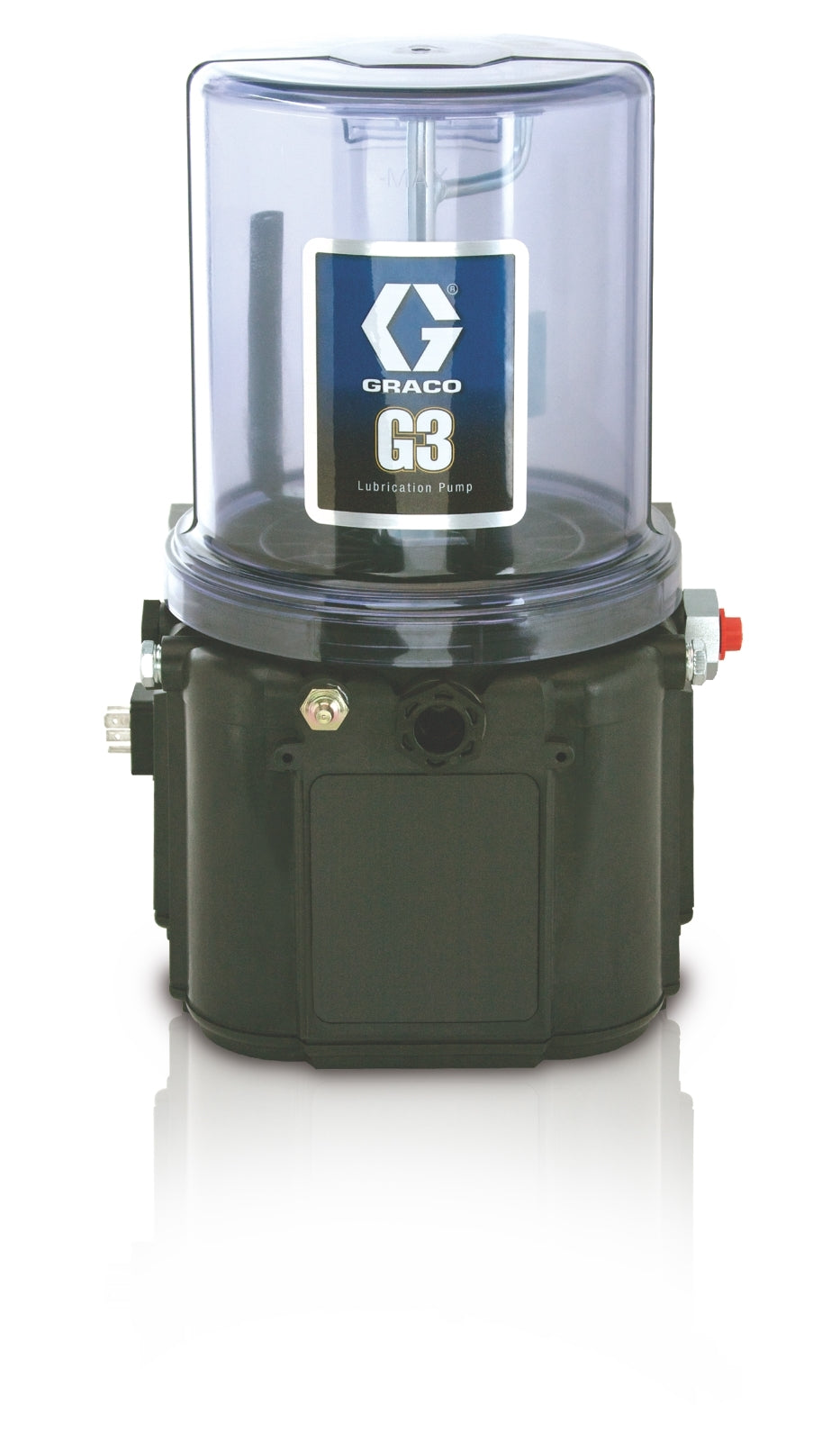

The G3® Standard Grease Lubrication Pump is an electric piston pump designed for automatic lubrication systems. It features a 2-liter UV-resistant, high-impact reservoir with a follower plate and is intended for dispensing NLGI #000 to #2 greases and oils (minimum 40cSt viscosity). The pump is constructed for reliability and ease of maintenance, suitable for use in injector-based and series progressive lubrication systems for off-road and industrial equipment.

Key Features:

• Electric Piston Pump
• G3 Standard, 2 Liter Reservoir
• UV-resistant, high-impact plastic reservoir; robust metal and plastic components
• Maximum working pressure: 5100 psi (35.1 MPa, 351.6 bar); Maximum fill inlet pressure: 5000 psi (34.4 MPa, 344.7 bar)
• Injector-based systems, Series Progressive systems; NLGI #000 to #2 greases and oils (minimum 40cSt)
• IP69K; Conforms to ANSI/UL 73; Certified to CAN/CSA Std. 22.2 No 68-09
• Flexible design for multiple markets
• Easy maintenance and reliable operation
• External low-level sensor for monitoring grease level
• Follower plate for efficient grease dispensing
• DIN power connector for European markets
• Up to 3 pump elements possible (not standard on this model)
• Maximum run time: 30 minutes

Applications:
Off-road equipment, industrial machinery, and other applications requiring automatic lubrication with NLGI #000 to #2 greases or oils (minimum 40cSt viscosity).

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Install a pressure relief valve at each pump outlet
• Torque fittings to 50 in. lbs (5.6 N•m)
• Do not operate the pump without the reservoir attached
• Fill reservoir to the max fill line; do not overfill
• For higher viscosity fluids, start pump to rotate stirring paddle during fill to prevent air pockets
• Follow all safety and pressure relief procedures before servicing
• Regularly check and maintain proper grease levels
• Inspect for leaks and wear
• Use only recommended NLGI greases and oils
• Clean plastic parts with appropriate solvents as needed
