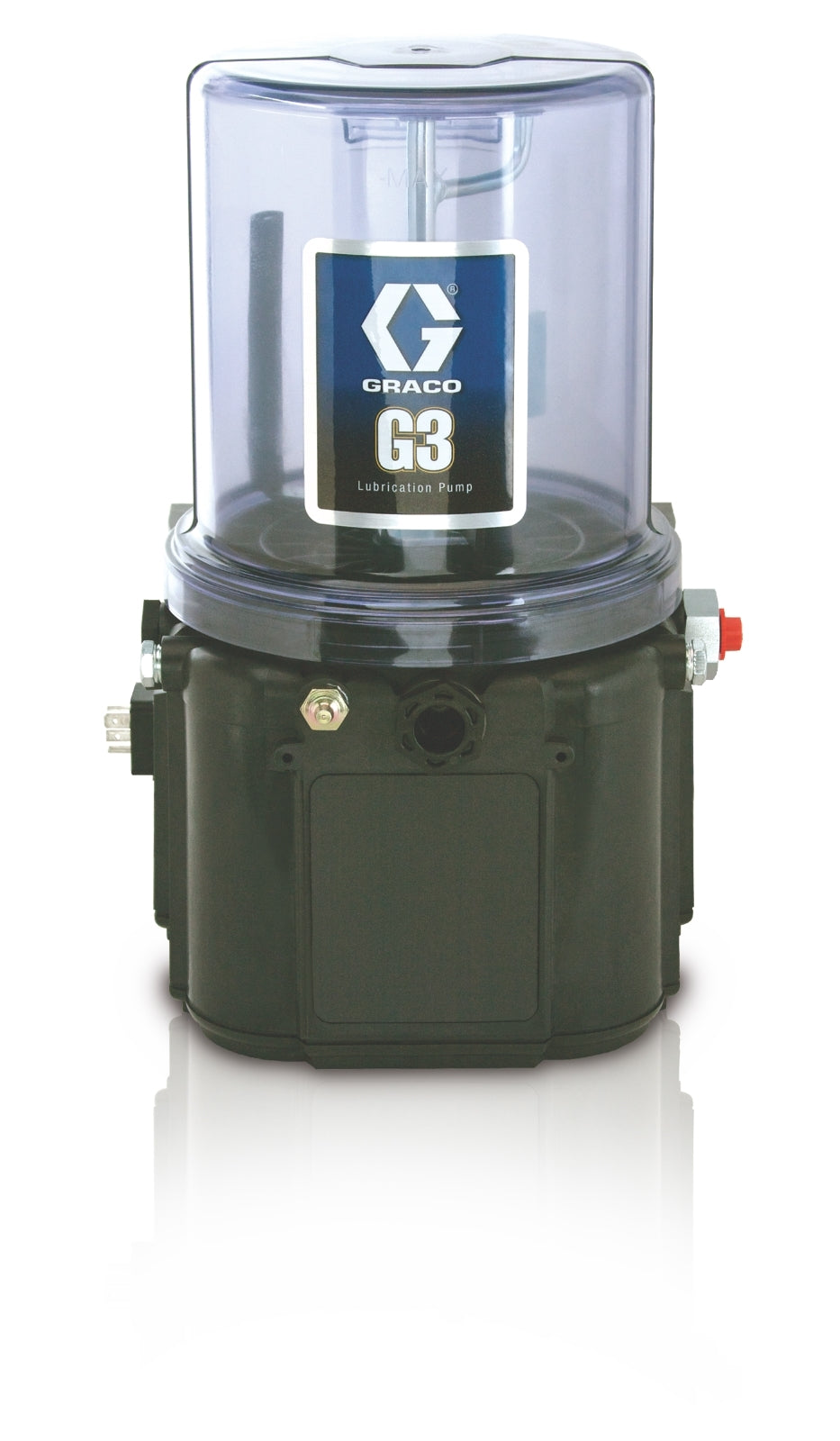

The GRACO 96G062 G3® Standard is an electric piston pump designed for automatic grease lubrication systems. It features a 4-liter UV-resistant, high-impact reservoir with a follower plate and external low-level sensor, and is intended for use in off-road equipment and other industrial applications requiring reliable, automated grease delivery.

Key Features:

• Electric Piston Pump
• G3® Standard, 4 Liter Reservoir
• UV-resistant, high-impact plastic reservoir; robust metal pump components
• Maximum Working Pressure: 35.1 MPa (5100 psi)
• Injector-based systems, Series Progressive systems, Single Line Parallel systems
• IP69K (Ingress Protection), Conforms to ANSI/UL 73, Certified to CAN/CSA
• Flexible design for multiple markets
• Up to 3 pump elements (1 included, expandable)
• External low-level sensor for reservoir monitoring
• Follower plate for efficient grease use
• DIN power connector for European markets
• Easy maintenance and reliable operation
• Adjustable output via volume control spacers

Applications:
Off-road equipment, industrial machinery, and other applications requiring automatic grease lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Install a pressure relief valve at each pump outlet as required
• Torque fittings to 50 in. lbs (5.6 N•m)
• Only use NLGI #000–#2 greases appropriate for your application and equipment’s operating temperature
• Do not overfill the reservoir
• Do not operate the pump without the reservoir attached
• For higher viscosity fluids, start the pump to rotate the stirring paddle during fill to prevent air pockets
• For models with an external controller, follow controller specifications for operation
• Regularly check and clean the reservoir and pump components
• Monitor grease levels using the external low-level sensor
• Replace or adjust volume control spacers as needed for desired output
• Follow all safety and maintenance instructions in the manual
