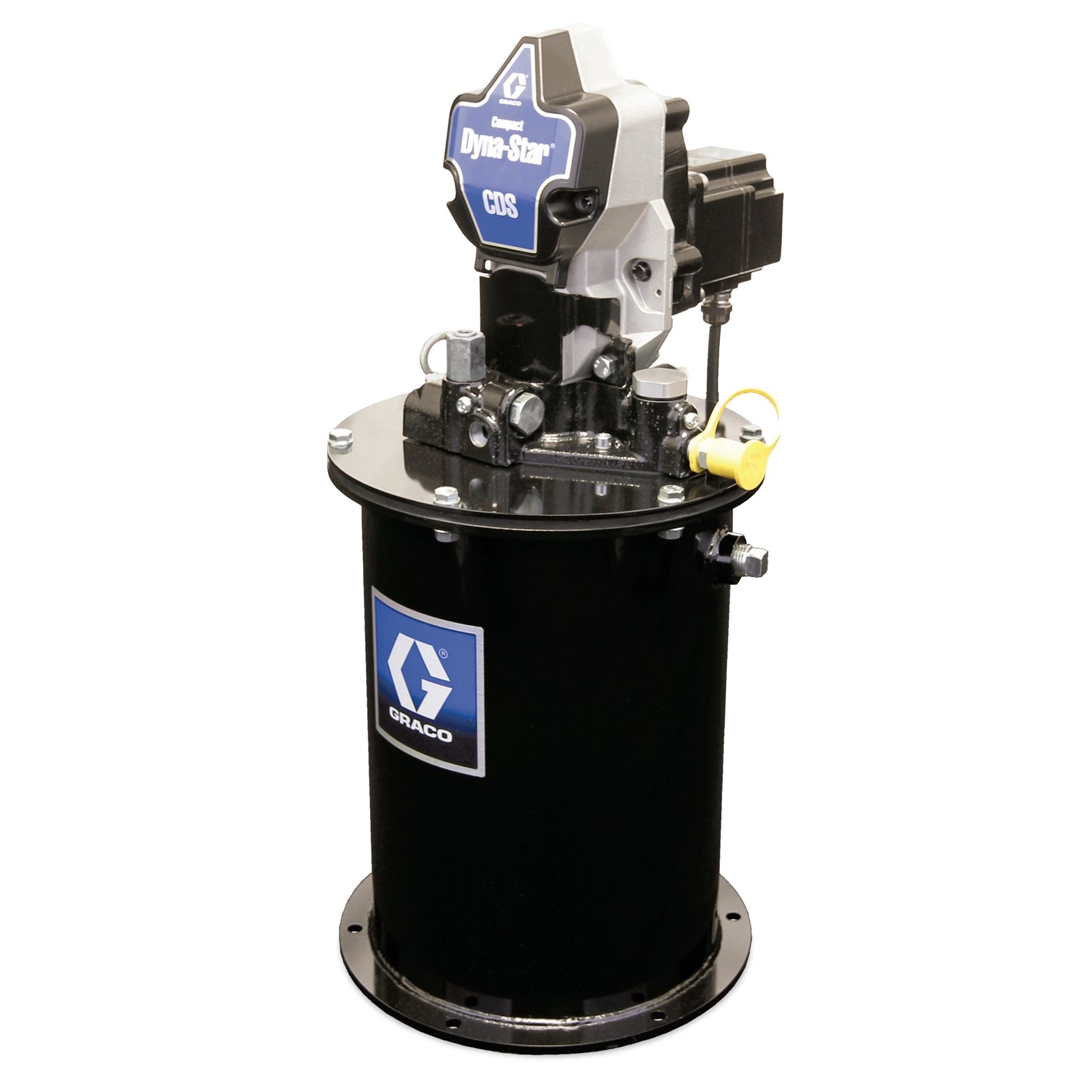

The GRACO CD1013 is an automatic lubrication system designed for heavy-duty, space-limited applications. It features a 12-liter reservoir with a follower plate, low-level switch, and auto-fill shut-off valve. The system is constructed with robust metal components for durability and is intended to deliver high-capacity grease flow to in-plant machinery and off-road equipment, ensuring reliable lubrication in harsh environments.

Key Features:

• Progressive grease pump system
• CD1013 (12 L reservoir)
• Metal
• Maximum working pressure: 3500 psi
• In-plant machinery, off-road equipment
• IP69K
• Compact footprint for space-limited applications
• Brushless DC motor for reliable, maintenance-free operation
• Auto-fill shut-off valve for safe, automated reservoir filling
• Low-level switch for timely maintenance alerts
• Hythane 18 throat seal for robust performance
• Operates in extreme temperatures (down to -40°F/-40°C)
• High-capacity flow for demanding lubrication intervals

Applications:
Suitable for use in in-plant machinery and off-road equipment, especially in harsh or space-constrained environments where reliable, automated lubrication is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of the lubrication system.
• Ensure proper electrical connection to 24 VDC power supply
• Connect the auto-fill shut-off valve and vent line as per instructions
• Mount the pump securely in a location protected from extreme contaminants
• Regularly check the low-level switch and follower plate for proper operation
• Follow manufacturer guidelines for reservoir filling and system startup
• Perform preventative maintenance to ensure peak performance
• Monitor system alerts and address low-level warnings promptly
• Use only compatible NLGI Grade 2 grease
• Inspect and replace seals and hoses as needed
