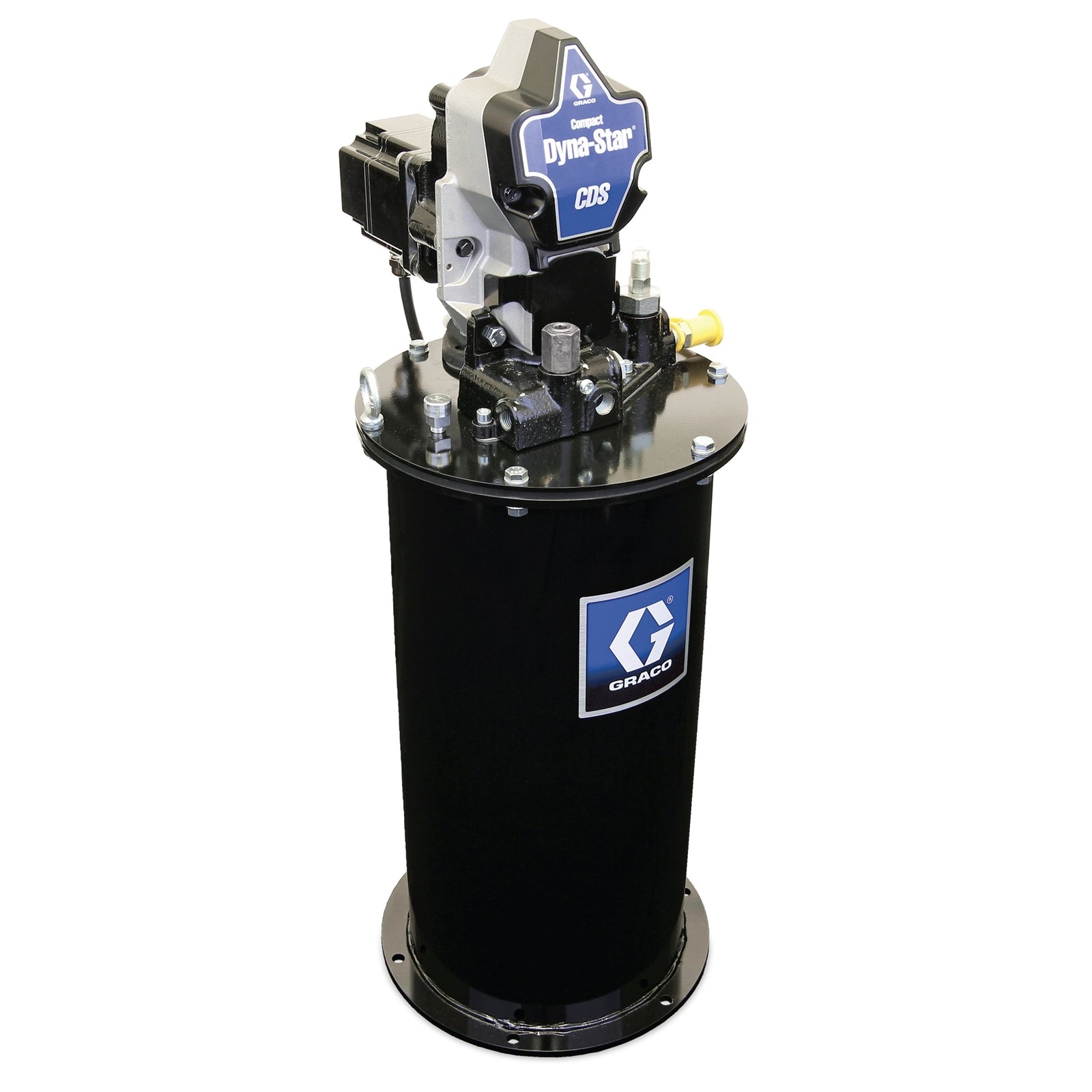

The GRACO CD2024 is a compact, robust automatic lubrication pump designed for heavy-duty applications. It features a 20-liter reservoir with a follower plate, level reporting, and auto-fill shut-off. The pump is constructed for durability and is intended for use in demanding environments such as in-plant machinery and off-road equipment. Its main function is to deliver high-capacity, reliable grease lubrication to critical machine components.

Key Features:

• Progressive grease pump
• CD2024
• Robust, compact design with brushless DC electric motor
• 4.5 cubic inches per minute (ci/min) maximum flow rate
• 3500 psi maximum working pressure
• Compatible with series progressive metering devices
• IP69K ingress protection rating
• Smaller footprint for space savings
• High-capacity flow and robust durability
• Innovative control for non-stop productivity
• Level reporting and auto-fill shut-off for reservoir management
• Follower plate for efficient grease dispensing
• Brushless DC motor for reliability and long service life
• Suitable for extreme work environments

Applications:
In-plant machinery, off-road equipment (dozers, graders, wheel loaders, haul trucks, excavators, etc.) in extreme work environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper electrical connection to 24 VDC supply
• Mount the pump securely in a location protected from extreme environmental conditions
• Connect compatible series progressive metering devices
• Regularly check and maintain the follower plate and reservoir for efficient operation
• Follow all safety and maintenance guidelines as specified in the GRACO documentation
