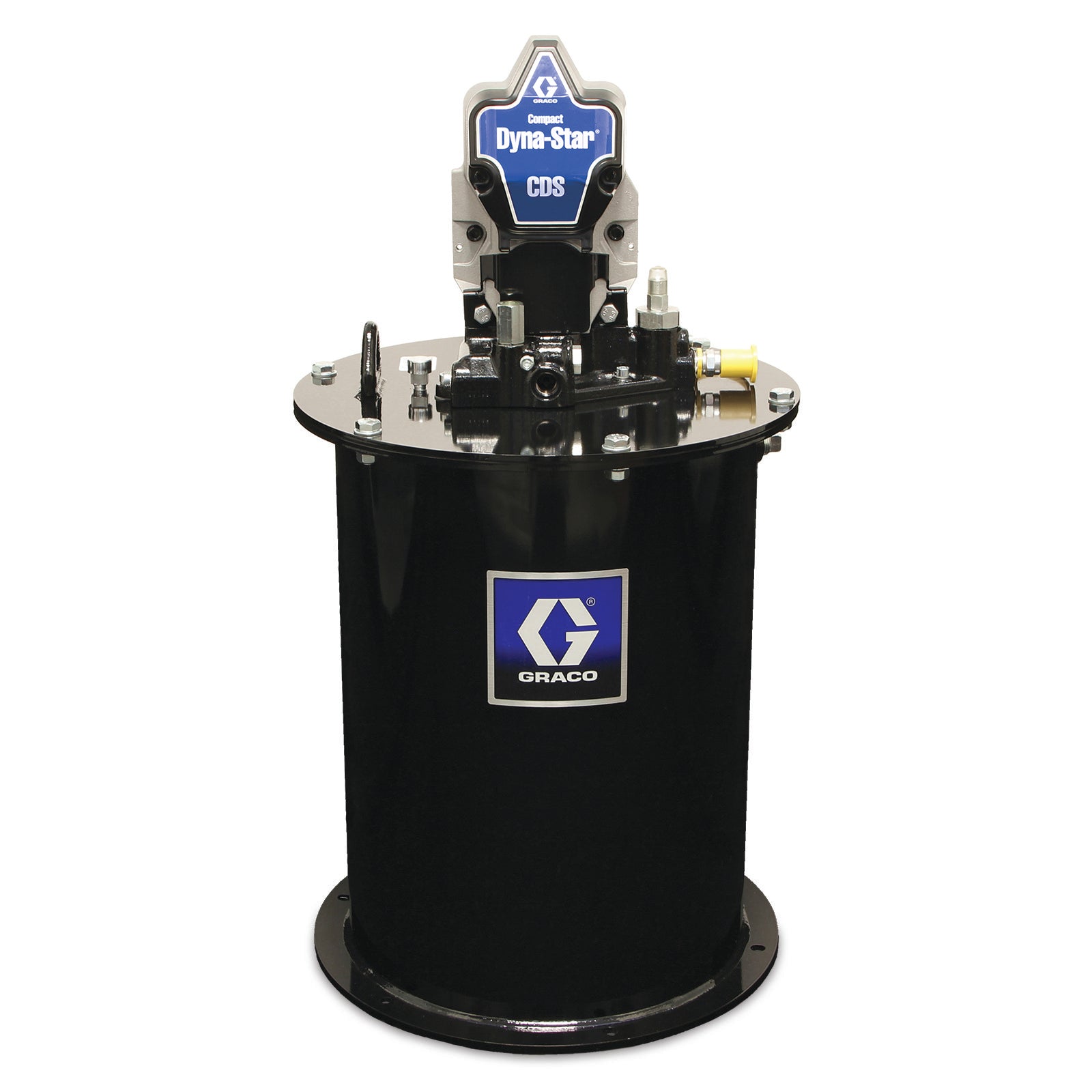

The GRACO CD3063 is a compact, electric grease pump system designed for automatic lubrication of in-plant machinery and off-road equipment. It features a 24 VDC brushless motor, a 60 lb grease reservoir, a follower plate, low-level switch, and auto-fill shut off. The system is constructed from robust materials including steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, and Polyethylene, ensuring durability and compatibility with a wide range of lubricants.

Key Features:

• Electric grease pump with reservoir
• CD3063 (60 lb reservoir)
• Steel, Buna-N, Acetal, Lubrithane, Polyurethane, Brass, Polyethylene
• Maximum working pressure: 3500 psi (for Compact Dyna-Star series)
• Oil and grease (NLGI Grade 2 maximum)
• CE, EAC, RCM
• Compact footprint for space-saving installation
• Brushless DC motor for reliability and long life
• High-capacity flow and robust durability
• Automatic lubrication with low-level switch and auto-fill shut off
• Easy maintenance and reduced downtime
• IP69K rating for protection against dust and water ingress

Applications:
In-plant machinery, off-road equipment, and other industrial applications requiring reliable, automatic lubrication.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with existing systems.
• Unpack the kit and remove the cover from the grease bucket (user supplied).
• Place the follower plate on top of the grease, top side up, and press down to remove air pockets.
• Install the drum cover and gasket, aligning holes.
• Mount the pump on top of the cover, secure with washers and screws, and tighten thumb screws.
• Remove the screws and cover from the pump as per instructions.
• Ground the pump by connecting the ground screw to the ring terminal at the end of the ground wire.
• Ensure all connections are secure and properly grounded.
• Regularly check for leaks and proper operation of the low-level switch and auto-fill shut off.
• Follow manufacturer guidelines for maintenance intervals and lubrication compatibility.
