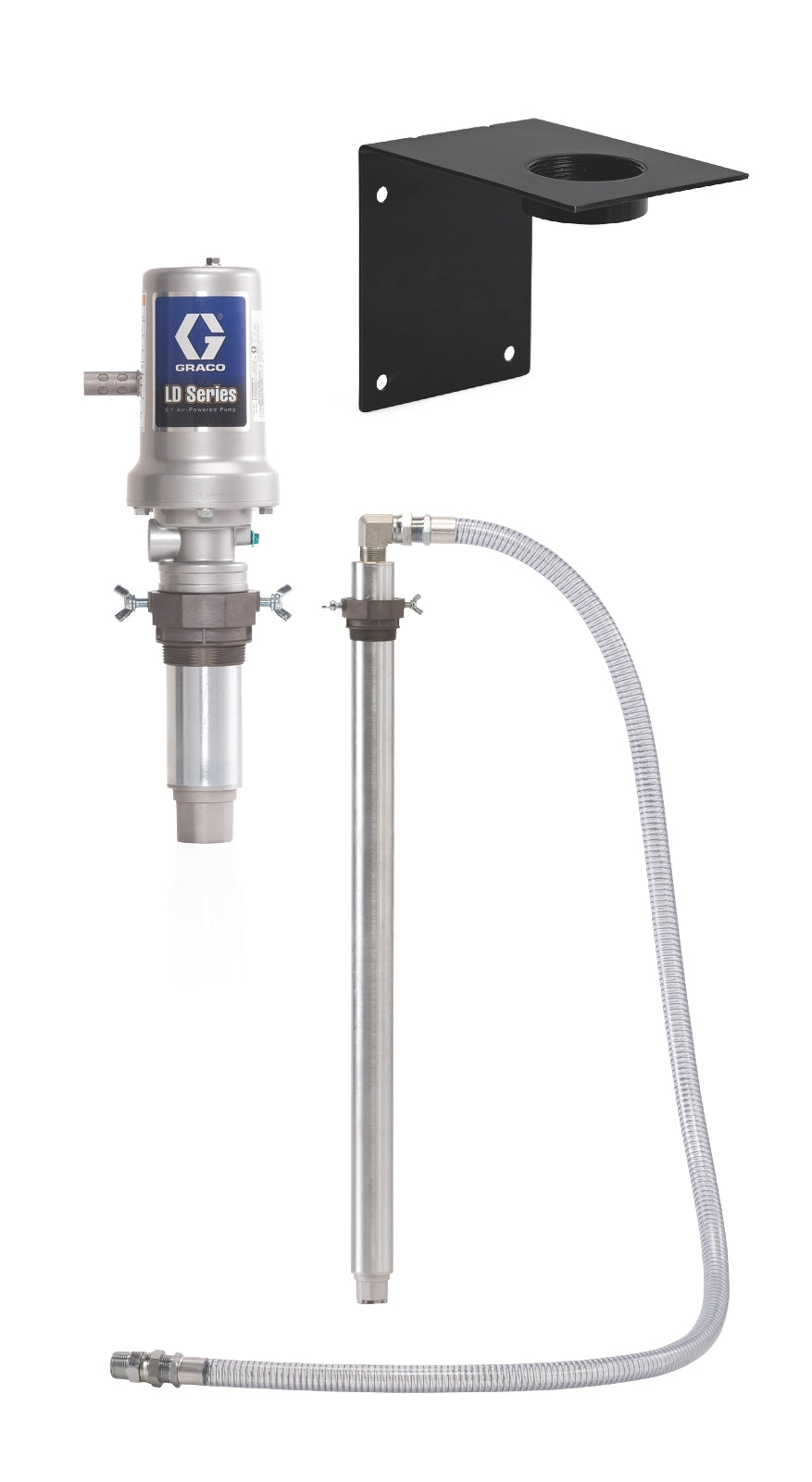

The GRACO 24H836 is a wall-mounted, pneumatic piston pump package designed for dispensing oil from 55-gallon (200-liter) drums. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, making it suitable for handling various oils and compatible fluids. This package is engineered for durability and efficient oil transfer in industrial and maintenance environments.

Key Features:

• Piston Pump Package
• LD Series, 5:1 ratio, 55 Gallon (200 Liter) capacity
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• 6.7 GPM
• Maximum Working Pressure: 5.2 MPa (750 psi)
• Motor Oil, Gear Oil, ATF, Hydraulic Fluid
• Three-inch air motor for increased power and flow
• Patented cup and plate design eliminates O-rings for enhanced durability and reduced maintenance
• Built-in thermal relief protects equipment from thermal expansion
• Engineered for compact, flexible, and reliable operation
• Suitable for lower volume applications (up to 20,000 gallons annual usage)
• Supports 1 to 2 dispense points

Applications:
Ideal for dispensing motor oil, gear oil, automatic transmission fluid (ATF), and hydraulic fluid in automotive, industrial, and maintenance settings. Suitable for use in service garages, workshops, and facilities requiring efficient and reliable oil transfer from drums.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment. Non-genuine parts may compromise safety and efficiency.
• Mount the pump securely to a wall or suitable structure for stability and safety
• Ensure all connections (air inlet, fluid inlet, and outlet) are properly tightened and leak-free
• Use appropriate fittings and hoses as specified in the manual
• Regularly inspect and maintain the pump according to manufacturer guidelines to ensure longevity and reliable operation
• Follow all local safety regulations and guidelines during installation and operation
