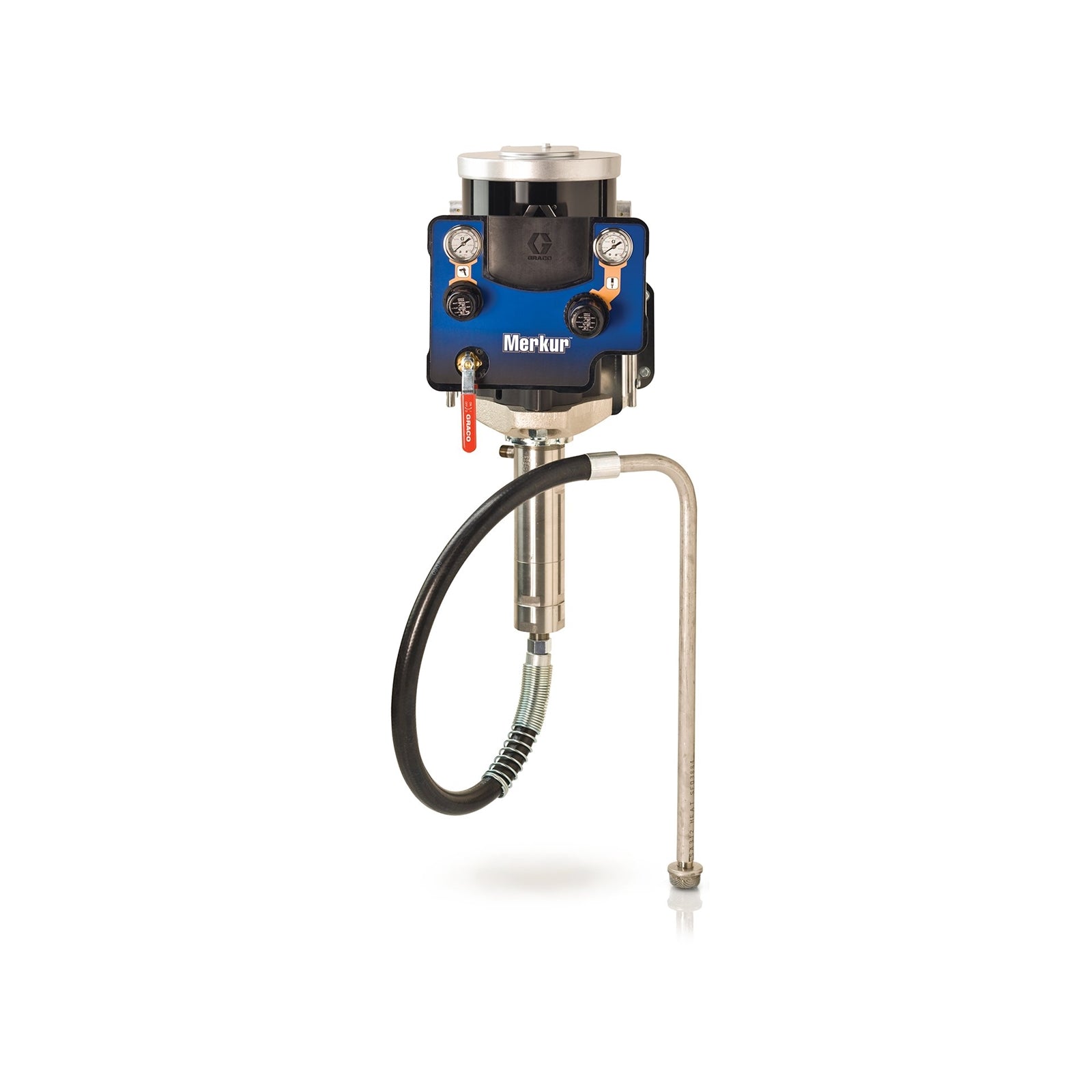

The GRACO G15W52 is a robust, wall-mounted air-operated piston pump designed for high-pressure fluid transfer in industrial applications. It is constructed with durable materials suitable for demanding environments and is intended for use in systems requiring reliable, high-volume fluid delivery, such as lubrication, paint, or chemical transfer within GRACO equipment.

Key Features:

• Air-operated piston pump
• G15W52
• 2.4 gpm (9 lpm)
• Maximum working pressure: 1500 psi (103 bar, 10.3 MPa); Maximum inlet air pressure: 100 psi (7 bar, 0.7 MPa)
• Designed for use with compatible GRACO fluid transfer systems and accessories
• Wall mount design for space efficiency
• DataTrak cycle counter for monitoring and maintenance
• Proven to outperform and outlast other pumps in its class
• High reliability and ease of maintenance
• Suitable for continuous duty cycles in industrial environments

Applications:
Industrial fluid transfer, lubrication systems, paint and chemical dispensing, and other applications requiring high-pressure, high-volume fluid delivery.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment.
• Mount securely on a wall or suitable structure for stability
• Ensure proper air supply and pressure settings (max 100 psi inlet air pressure)
• Connect fluid and air hoses according to GRACO guidelines
• Regularly check and maintain seals and moving parts for optimal performance
• Keep the wet-cup 1/3 filled with GRACO throat seal liquid (TSL) for proper lubrication and sealing
• Follow manufacturer’s installation and maintenance instructions
• Use only recommended fluids and accessories
• Monitor cycle count and perform preventive maintenance as needed
