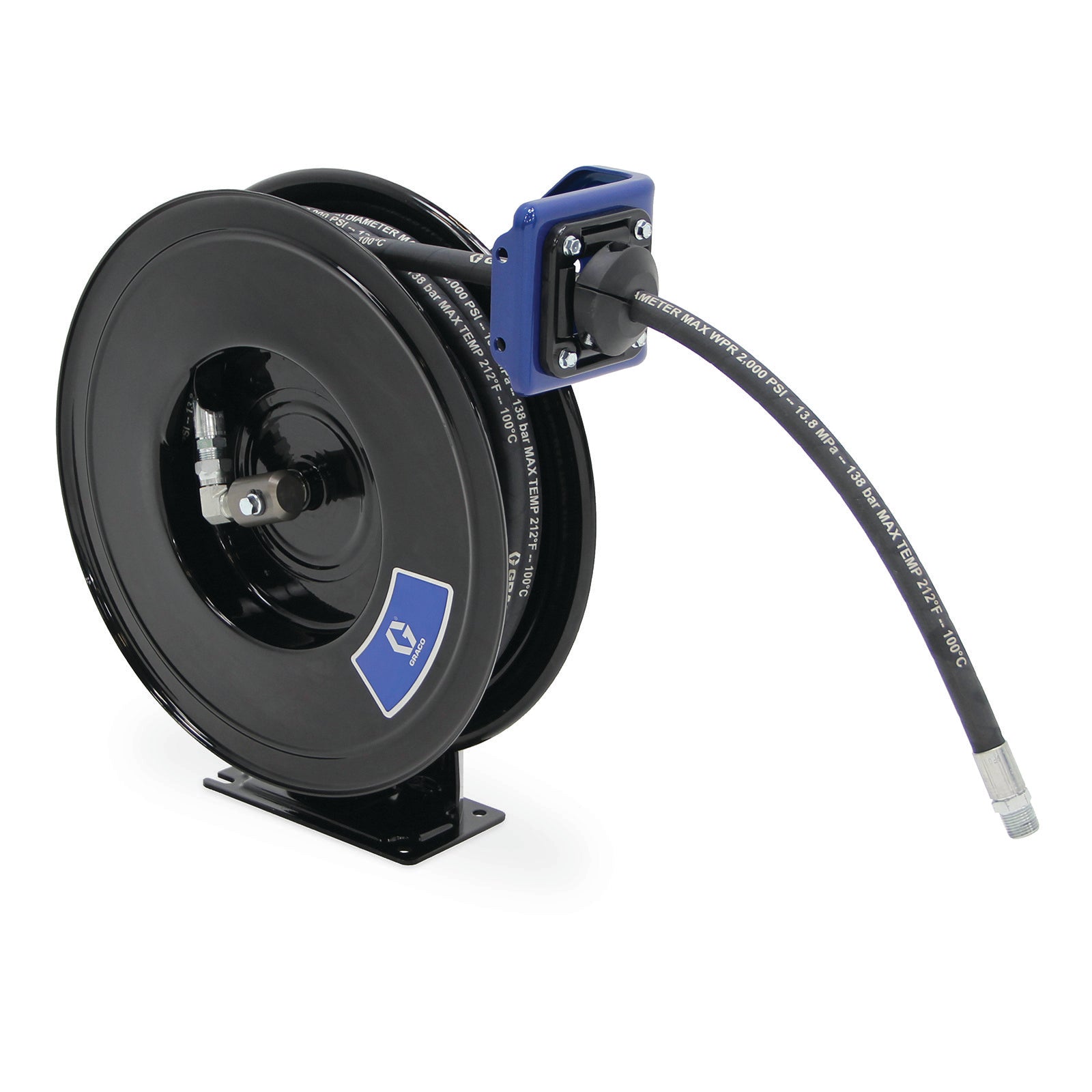

The GRACO SDL56F SDX™ 20 is a spring-driven hose reel designed for the efficient and reliable dispensing of air, water, antifreeze, and windshield wash solvent (WWS). It features a robust metal frame, stainless steel swivel shaft, and wetted parts made from stainless steel, anodized aluminum, and nitrile rubber. This reel is intended for use in vehicle service environments such as car dealerships, fleet maintenance, and public works garages.

Key Features:

• Spring-driven hose reel
• SDX™ 20, 1/2 in (13 mm) inlet, 3/8 in X 65 ft (10 mm X 20 m) hose
• Rigid metal frame, stainless steel swivel shaft, wetted parts: stainless steel, anodized aluminum, nitrile rubber
• Maximum working pressure: 300 PSI
• Air, water, antifreeze, windshield wash solvent (WWS)
• Low-friction cartridge swivel for smooth operation and easy replacement
• Full-flow swivel maximizes material flow with minimal pressure drop
• Adjustable arm for flexible positioning
• Compact pedestal and spool fit in tight spaces
• Baked-on enamel finish for corrosion protection
• Single pedestal, overhead mount
• Temperature range: -20°F to 190°F (-28°C to 87°C)

Applications:
Car dealerships, fleet maintenance, public works garages, light-utility service trucks

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with GRACO equipment.
• Ensure the reel is mounted securely at the recommended height (up to 20 ft for overhead mount)
• Connect the inlet to a compatible air, water, antifreeze, or WWS supply using 1/2 in NPSM threads
• Check all connections for leaks before use
• Regularly inspect swivel and hose for wear and replace as needed
