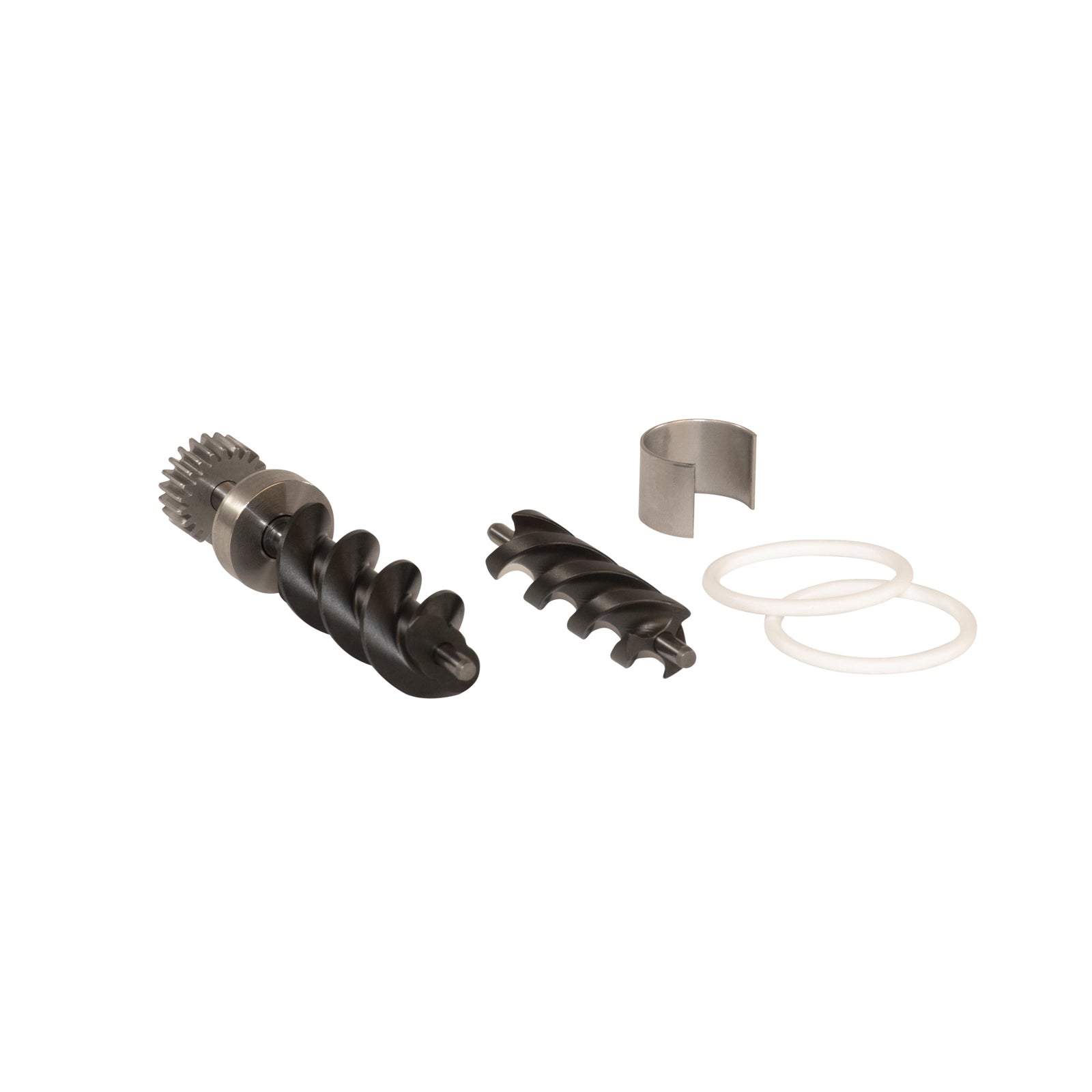

The GRACO 246949 KIT, REPAIR, GEARS is a genuine replacement kit designed for helical gear meters in GRACO equipment. It includes a high-resolution gear assembly, a helical gear sub-assembly shaft, and an O-ring seal. The kit is intended to restore or maintain the functionality and durability of GRACO helical gear meters, ensuring optimal performance and longevity. Materials are not specified, but typical GRACO gear kits use high-grade metals and elastomers for gears and seals.

Key Features:

• Repair kit for helical gear meter
• High-grade metals and elastomers (typical for GRACO gear kits)
• Compatible with GRACO helical gear meters, specifically referenced in HG6000HR and HG6000HR-FM gear replacement kits
• Designed for optimum functionality and durability
• Includes all necessary components for gear and seal replacement
• Supports reliable and efficient meter operation

Applications:
Used for maintenance and repair of GRACO helical gear meters in industrial fluid handling systems, including lubrication and maintenance applications.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the equipment.
• Follow GRACO equipment manual for detailed disassembly and reassembly procedures
• Inspect all components before installation
• Ensure proper seating of O-ring seals
• Torque screws to specified values (e.g., 350 +/- 15 in-lb for HG6000HR meters)
• Avoid using tools that may damage housings or gears during disassembly
• Regularly inspect gears, shafts, and seals for wear or damage
• Replace O-rings if they show signs of deterioration
• Clean meter parts with compatible solvent before reassembly
