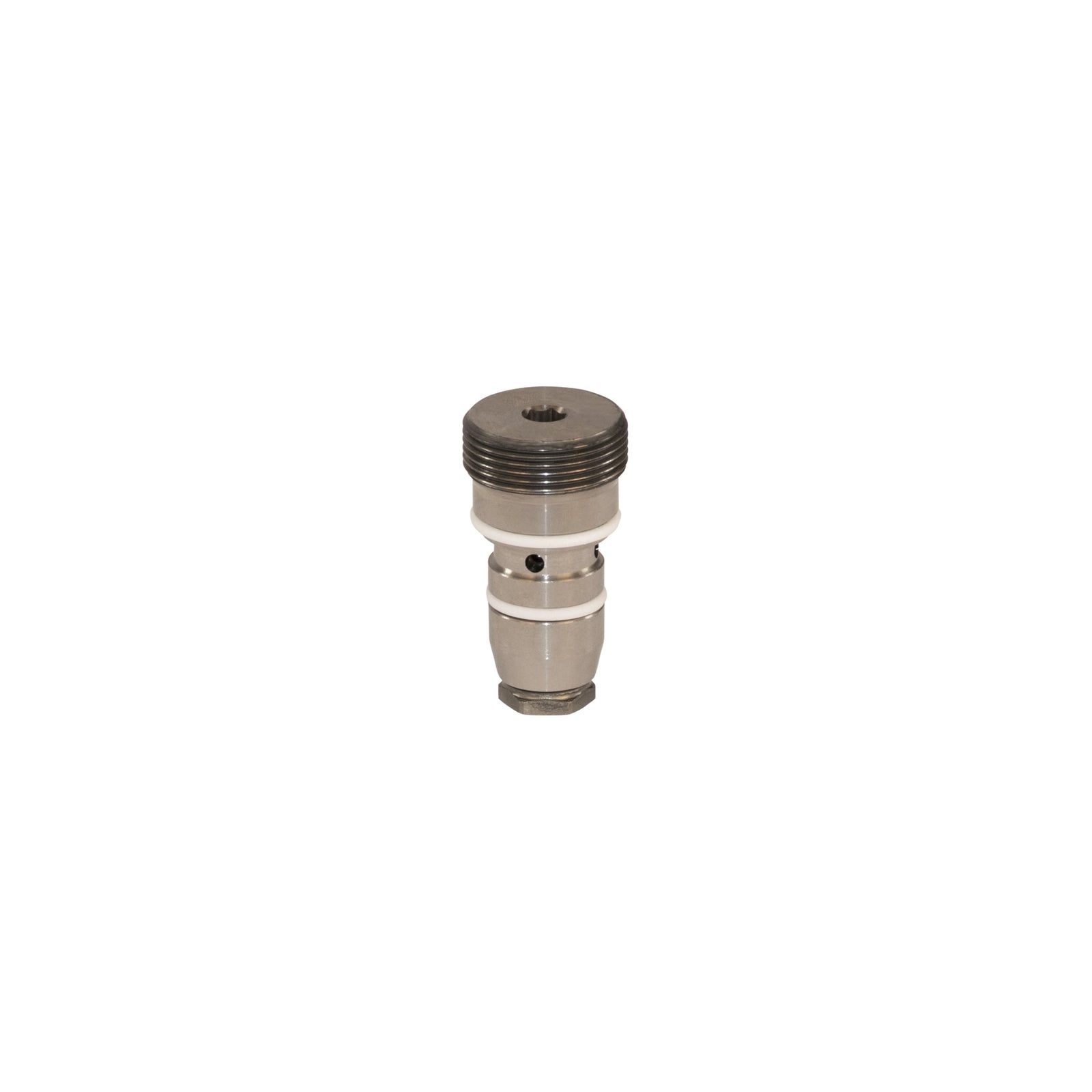

The GRACO 248098 KIT, REPAIR, CARTRIDGE is a replacement and maintenance kit designed for use with GRACO high-pressure fluid pressure regulators and related equipment. It includes essential components such as cartridge assemblies, repair seals, and check balls, intended to restore or maintain the performance of GRACO fluid handling systems. The kit is suitable for use with stainless steel, waterbase-compatible, and high-pressure fluid pressure regulators, ensuring reliable operation in demanding industrial environments.

Key Features:

• Repair kit, cartridge
• Stainless steel, waterbase-compatible, high-pressure fluid pressure regulators (models 238889, 238890, 238891, 238892, 238894, 243090, 26A086, and others as referenced in GRACO documentation)
• Comprehensive kit for cartridge and seal replacement
• Includes check balls for valve function
• Designed for ease of maintenance and reliability
• Supports extended duty cycles in industrial applications

Applications:
Used for maintenance and repair of GRACO high-pressure fluid pressure regulators and related equipment in industrial, mining, agricultural, and other demanding environments.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of your equipment.
• Follow all safety instructions and torque specifications as outlined in the GRACO manual (e.g., torque cartridge components to 25–30 in-lb, apply lithium-based grease during reassembly)
• Inspect all components before installation
• Replace all seals and check balls included in the kit for best results
• Refer to the equipment manual for detailed disassembly and reassembly procedures
