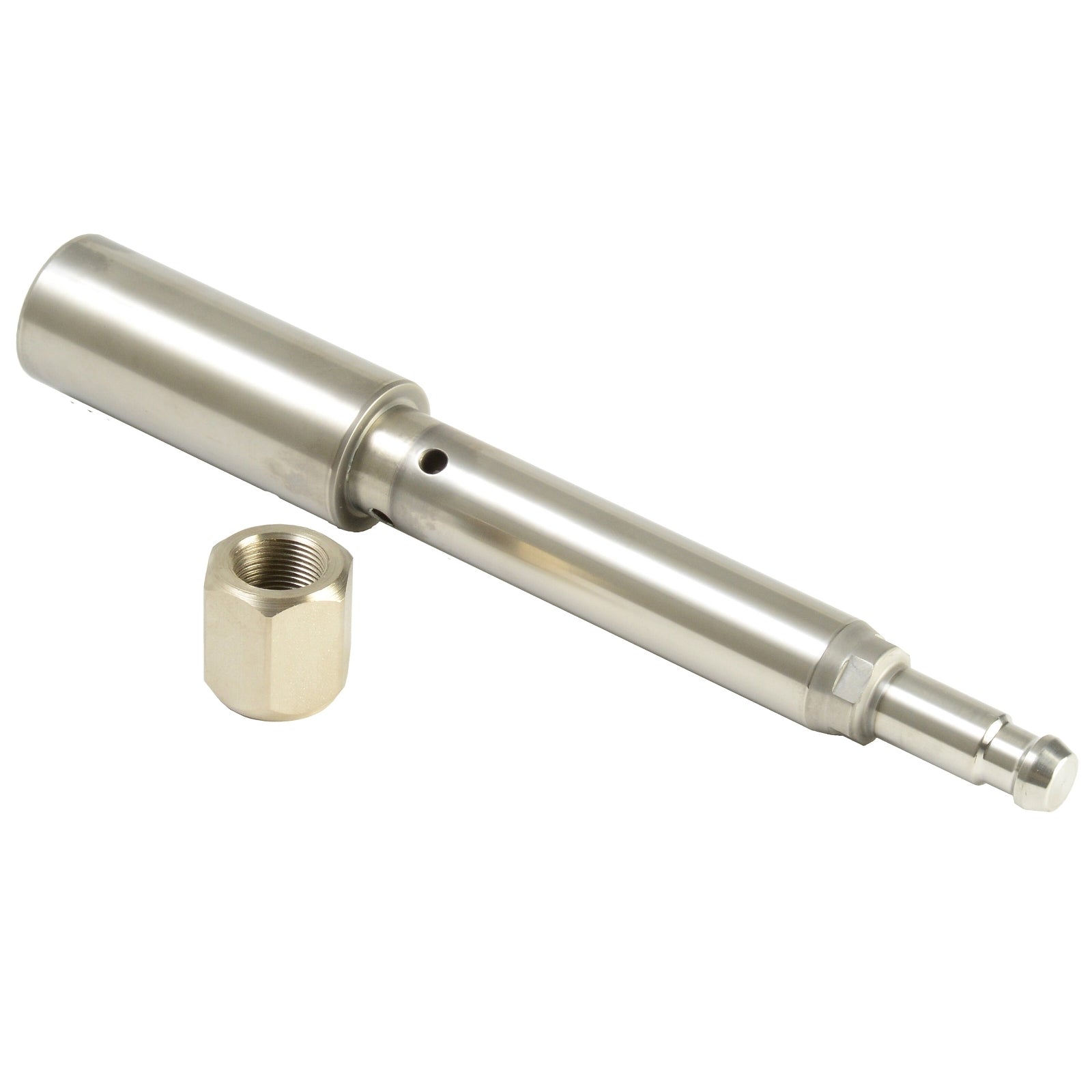

The GRACO 24A645 is a piston rod assembly kit designed for use with the LW100A Merkur Displacement Pump. It is a genuine replacement part intended to restore or maintain the performance of the pump by providing a complete assembly for the piston rod mechanism. The kit is engineered for durability and reliability in demanding industrial applications, though specific material details are not specified in available sources.

Key Features:

• Piston Rod Assembly Kit
• LW100A
• LW100A Merkur Displacement Pump
• Engineered for reliability and durability in industrial environments
• Designed for easy replacement and maintenance
• Supports consistent pump performance

Applications:
Used in industrial fluid handling systems, particularly where the LW100A Merkur Displacement Pump is installed. Suitable for applications requiring reliable and robust fluid transfer, such as in mining, agriculture, and manufacturing.

Installation Notes:

• Using genuine GRACO parts ensures optimal fit, performance, and longevity of the equipment.
• Follow the equipment manual for detailed installation instructions
• Ensure all components are clean and properly lubricated before assembly
• Torque lower cylinder onto upper cylinder to 95–105 ft-lb (128–142 N•m) for LW075A–LW150A models (see manual for specific guidance)
• Use caution when handling sharp threads and components
• Lubricate packings and o-rings as recommended
• Regularly inspect and maintain piston rod assemblies to prevent downtime
• Replace worn or damaged components promptly
• Use only recommended lubricants and replacement parts
