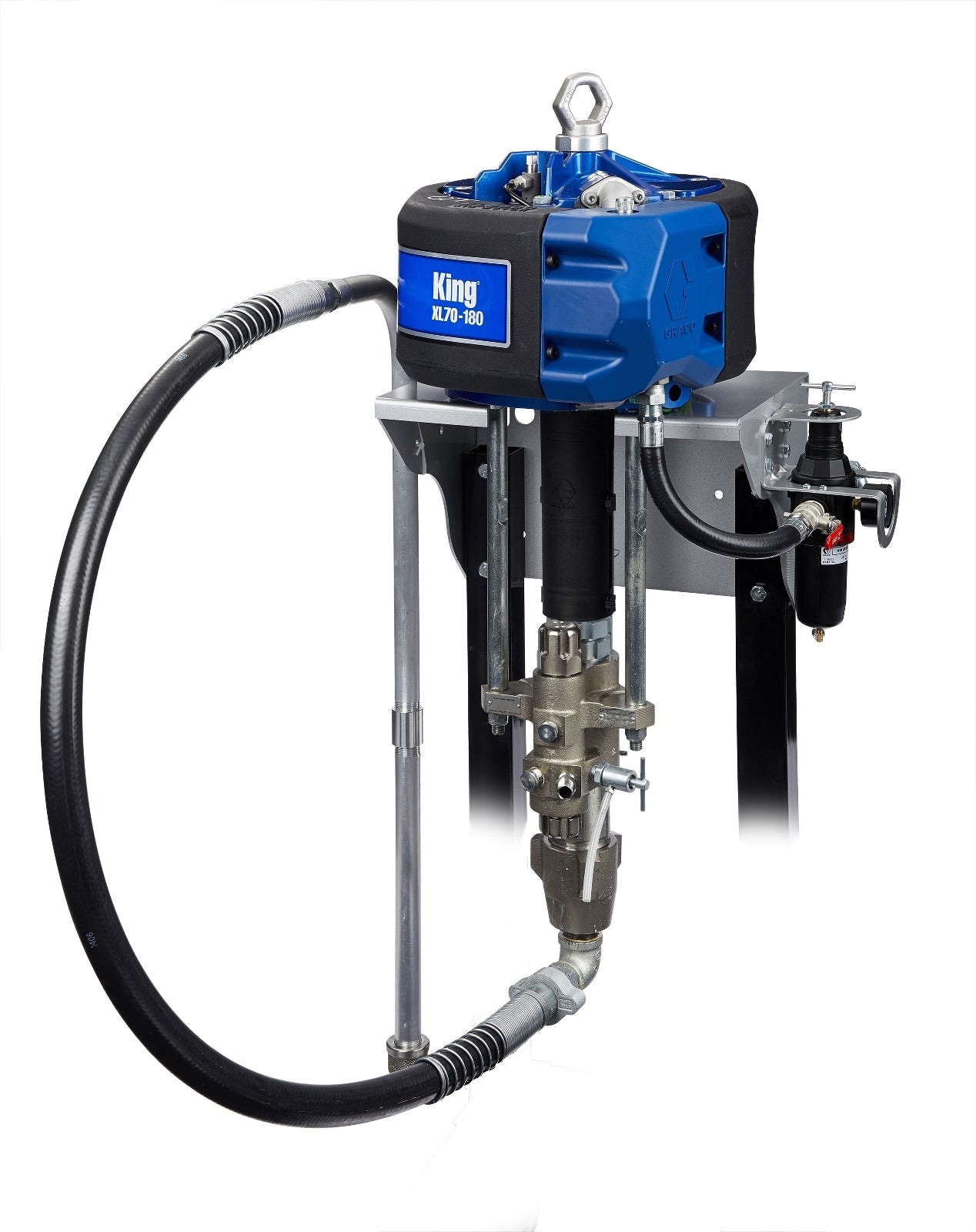

The GRACO K45FW1 is a high-performance, air-operated piston pump sprayer designed for professional use in applying paints, primers, and protective coatings. It features an integrated filter, wall mount configuration, air controls, and a siphon kit, making it suitable for demanding industrial environments. The package includes a 50 ft (15 m) hose and a 6 ft (1.8 m) whip for extended reach and flexibility.

Key Features:

• Airless Sprayer (Air-Operated Piston Pump)
• King 45:1, XL6500/290cc
• Robust industrial-grade materials, wall mount frame, integrated filter lower
• Maximum fluid working pressure: 4500 psi (31 MPa)
• Designed for use with paints, primers, and protective coatings; compatible with XTR-5+ spray gun and standard fittings
• CE
• Integrated filter for contaminant protection
• Wall mount configuration for space efficiency
• Air controls for precise operation
• Siphon kit for easy material transfer
• Exposed thermally isolated poppets and de-icing valve for reliability in harsh conditions
• Tool box included for maintenance
• High-pressure capability for demanding applications
• Single leg, MaxLife pump rod for durability
• Maximum sound pressure level: 81.48 dB(A)

Applications:
Ideal for high-volume and high-pressure applications such as waterproofing, fireproofing, and protective coatings in industrial, mining, and agricultural settings.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment. Non-genuine parts may compromise system integrity and void warranties.
• Mount the sprayer securely on a wall or stable surface using the provided bracket
• Connect air supply lines according to manufacturer specifications (max 150 psi inlet pressure)
• Ensure all fluid connections are tight and leak-free
• Use the integrated filter to protect the pump from contaminants
• Follow recommended maintenance schedules for the MaxLife pump rod and other components
• Consult the manual for specific hose and whip installation instructions
• Regularly inspect and clean the integrated filter
• Check for leaks and wear on hoses and fittings
• Lubricate moving parts as specified in the manual
• Store equipment in a clean, dry environment when not in use
