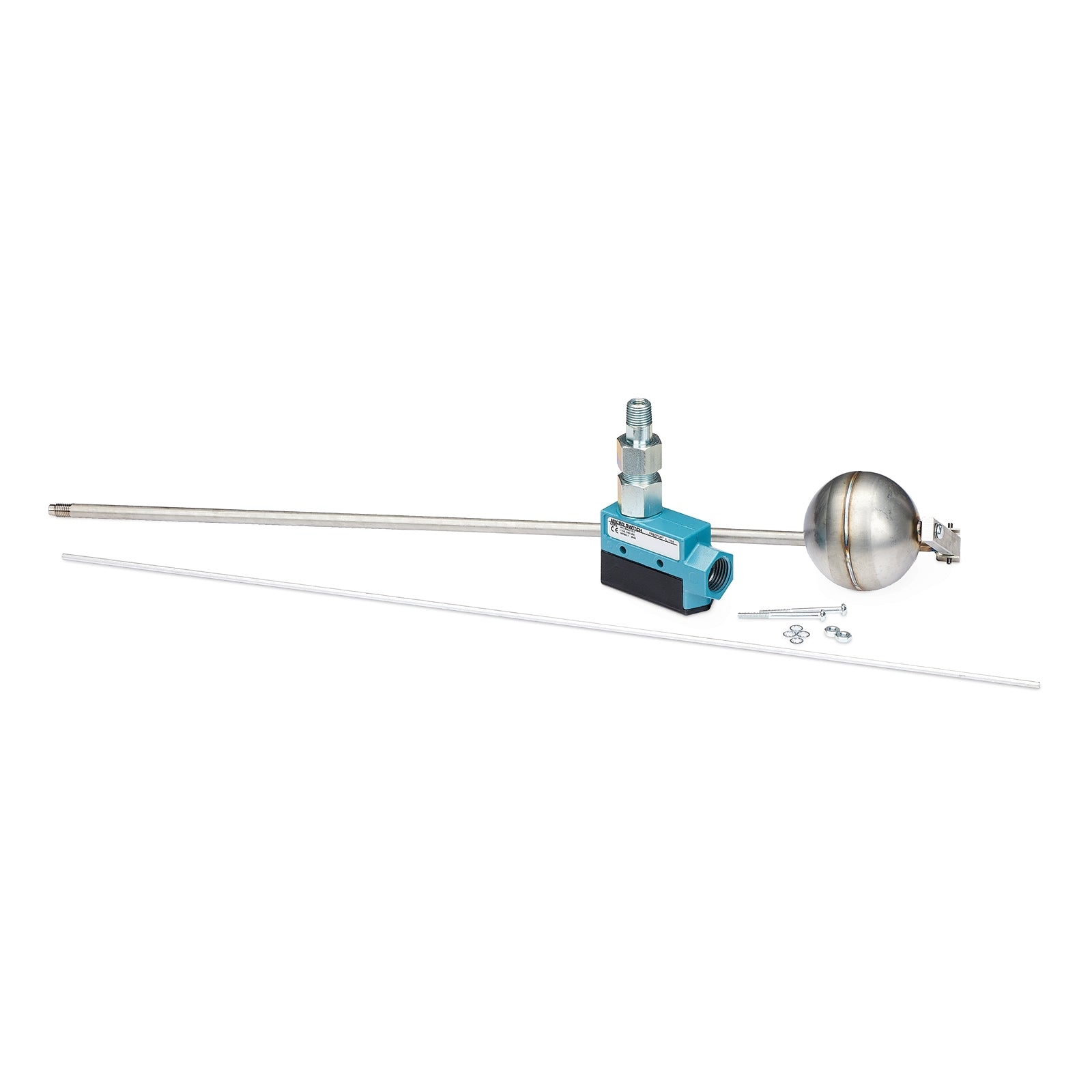

The GRACO 563317 is a low level switch assembly designed for use with 20-pint cylindrical oil reservoirs. It is a robust, electrical switch component intended to monitor and protect against low oil levels in automated lubrication systems, ensuring safe and reliable operation of GRACO equipment. Material specifics are not specified in available documentation.

Key Features:

• Low level switch assembly
• For 20 pt. cylindrical oil reservoirs
• Designed for use with 20-pint cylindrical oil reservoirs in GRACO Modu-Flo systems
• Single Pole Double Throw (SPDT) configuration
• 15 amp rating for robust electrical switching
• Reliable low-level protection for oil reservoirs
• Easy integration with GRACO Modu-Flo lubrication systems

Applications:
Used in automated lubrication systems to monitor and protect against low oil levels in 20-pint cylindrical oil reservoirs, ensuring continuous and safe operation of machinery in industrial environments.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure the system is powered off before installation
• Follow GRACO’s installation guidelines for Modu-Flo systems
• Verify proper alignment and secure mounting of the switch assembly
• Test the switch function after installation to confirm low-level detection
• Regularly inspect the switch for signs of wear or damage
• Clean the switch and surrounding area to prevent contamination
• Test the switch periodically to ensure reliable operation
