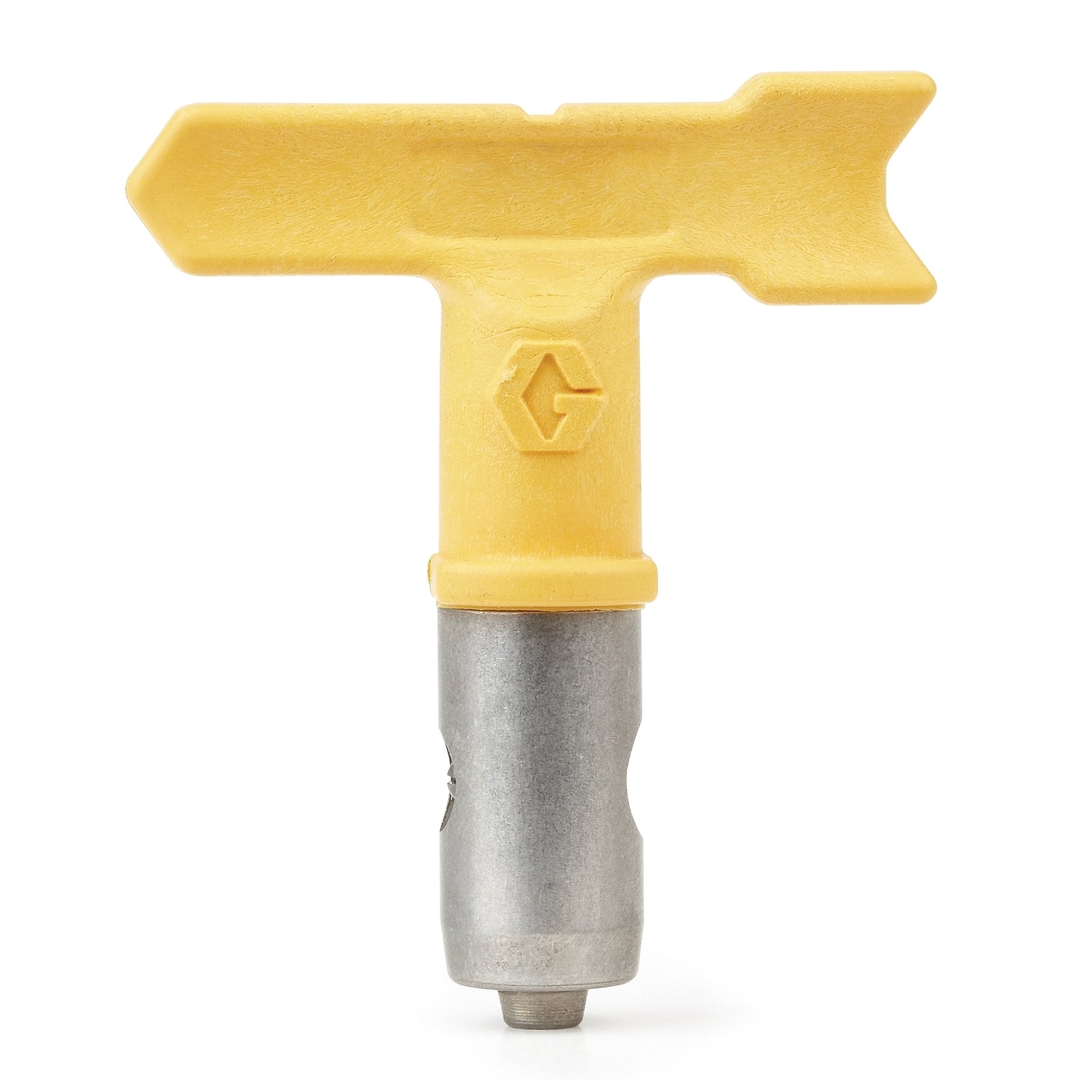

The LineLazer RAC 5 SwitchTip, 635 is a spray tip designed for use with GRACO LineLazer line striping equipment. It is constructed for compatibility with a range of materials, including heavy waterbase and thin alkyd traffic paints, elastomers, latex and oil-based paints and stains. Its primary function is to create clean, laser-sharp lines for marking surfaces such as parking lots, roads, warehouse floors, crosswalks, and athletic fields.

Key Features:

• Spray Tip
• RAC 5, 635 (0.035 inch orifice)
• Maximum flow rate: 1.31 GPM (4.96 L/min)
• Maximum working pressure: 4050 psi (280 bar, 28000 kPa)
• RAC 5 HandTite Tip Guard; compatible with elastomer, latex paint, latex stain, oil-based paint, oil-based stain
• Reverse-A-Clean (RAC) feature for easy clog clearing
• Produces 8–12 inch (up to 12–14 inch fan, depending on source) clean, laser-sharp lines
• Consistent paint thickness from edge to edge
• Designed for heavy-duty, high-volume applications

Applications:
Used for marking parking lots, roads, warehouse floors, crosswalks, and athletic fields.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with LineLazer equipment.
• Ensure compatibility with RAC 5 HandTite Tip Guard
• Reverse the SwitchTip to easily clear clogs
• Follow manufacturer guidelines for pressure and material compatibility
• Regularly inspect for clogs and use the RAC feature for cleaning
• Store in a clean, dry environment when not in use
• Replace tip if wear or damage is observed
