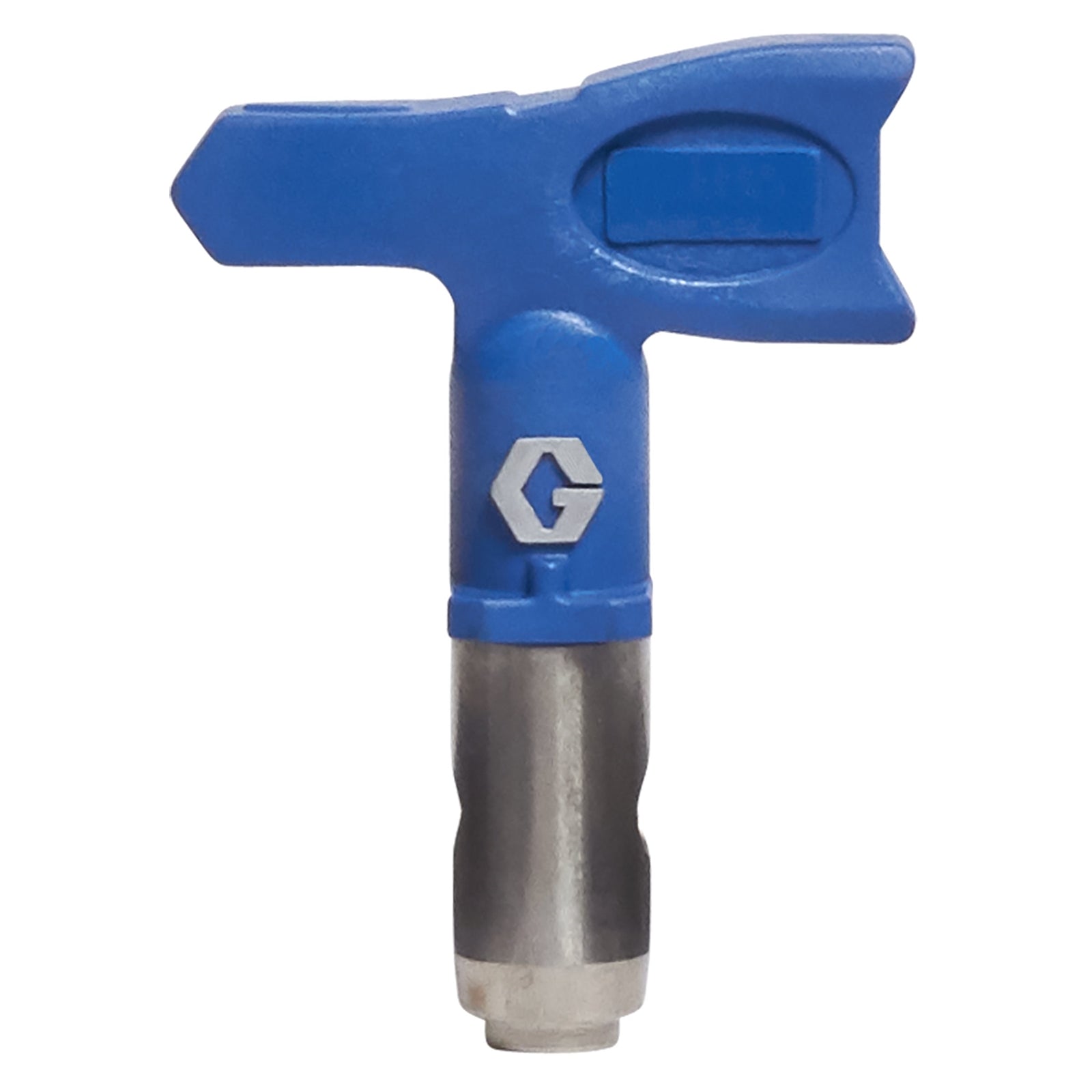

The GRACO LTX423 RAC X SwitchTip is an airless spray tip designed for use with GRACO equipment. It is constructed to handle a range of materials from lacquer to mastic and latex paint. Its primary function is to deliver a consistent, high-quality finish with a reliable spray pattern, and it features a unique reverse function for easy clog clearing.

Key Features:

• Spray Tip
• RAC X, 423 (8–10 inch fan, 0.023 inch orifice)
• 0.57 GPM (2.16 L/min)
• Maximum working pressure: 4050 psi (280 bar, 28000 kPa)
• RAC X HandTite Tip Guard; compatible with lacquer, mastic, latex paint
• Reverse-A-Clean (RAC) technology for easy clog clearing
• 50% longer fan pattern life than RAC 5
• Locking tab ensures tip stays securely in guard
• Snaps tip in spray or reverse position
• OneSeal tip gasket installs with no tools
• Solvent seal available for use with extremely hot solvents
• Consistent, high-quality finish

Applications:
Residential, commercial, and industrial spray painting applications for materials ranging from lacquer to mastic and latex paint.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Ensure compatibility with the RAC X HandTite Tip Guard
• Install the OneSeal tip gasket without tools for quick setup
• Snap the tip into the spray or reverse position as needed
• Reverse the SwitchTip to clear clogs easily
• Regularly check for clogs and use the reverse function to clear them
• Inspect the tip and gasket for wear or damage
• Use solvent seal when working with extremely hot solvents
