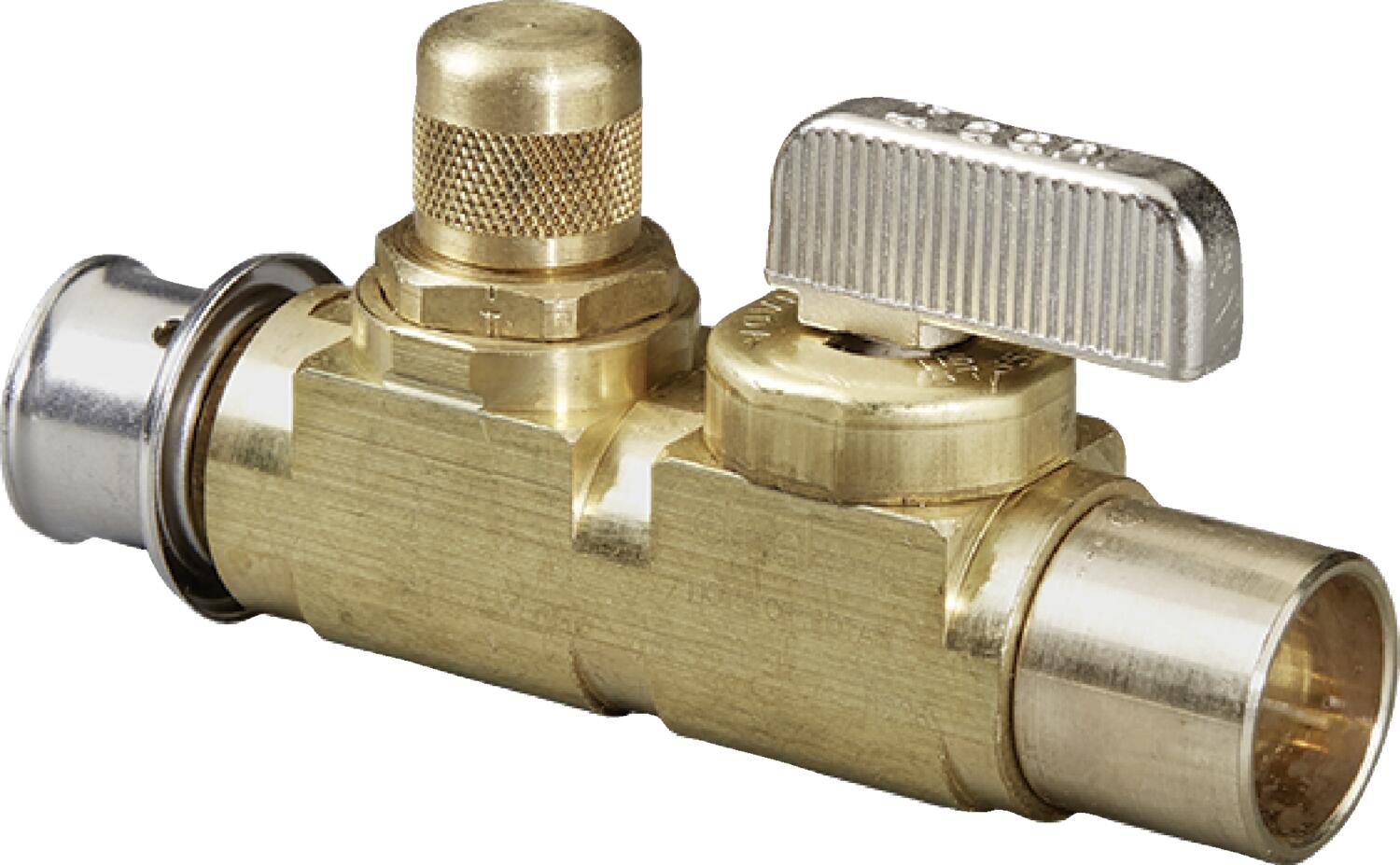

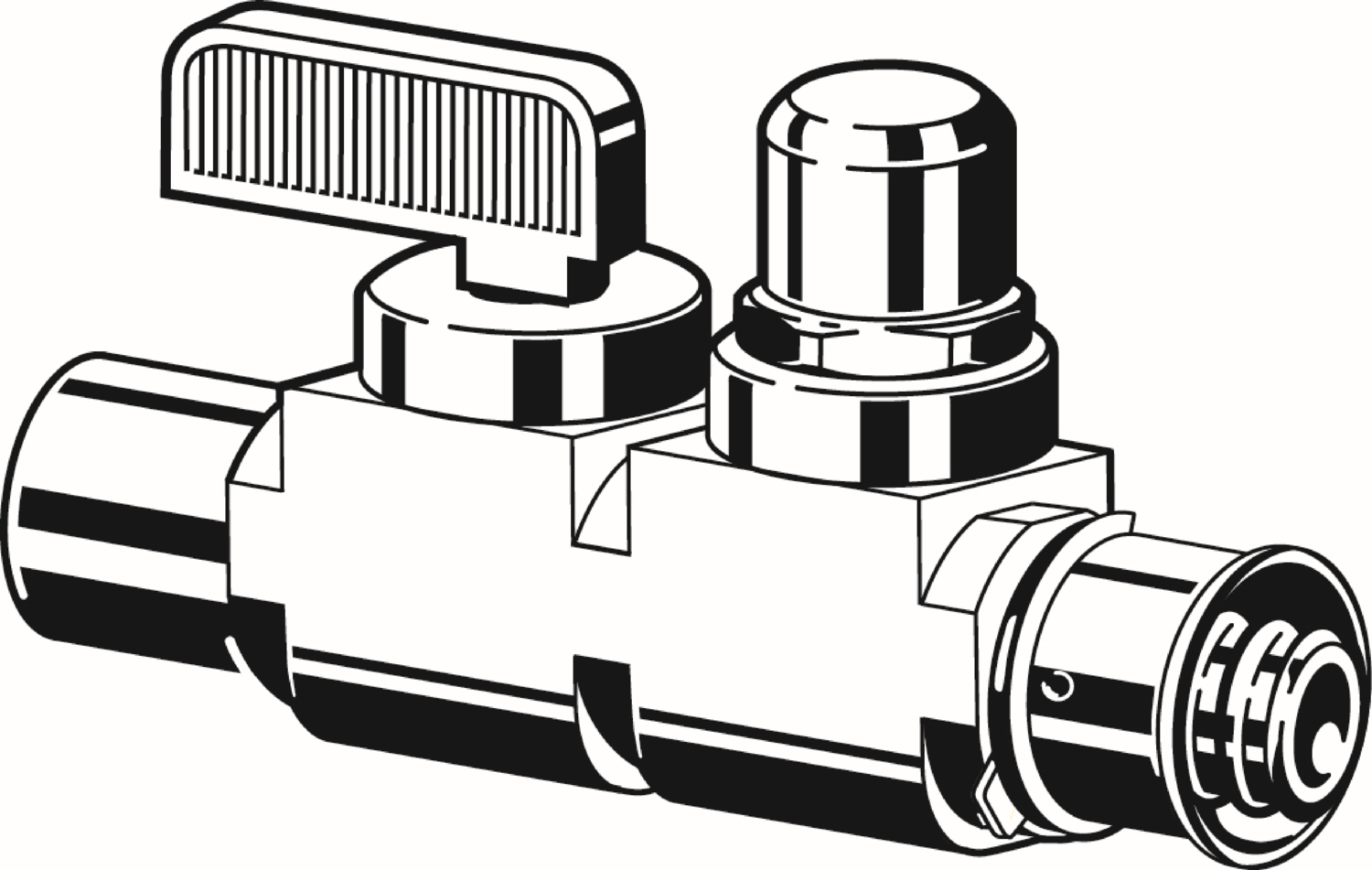

Viega Shut-Off / Balancing Valve 1/2" PEX Press x 1/2" Copper (female) (SKU: 17263)

This valve is designed for use in heating, cooling, and snow-ice melting systems to connect radiant tubing to copper manifolds or other copper-to-PEX press connections.

• Material: Brass construction ensuring durability and corrosion resistance
• Connection Type: Press connection on the PEX side and female copper tube connection on the other side
• Dimensions: Length approximately 3.59 inches (A), width approximately 3.08 inches (B)
• Temperature Range: Suitable for minimum temperature of 36ºF up to maximum of 250ºF
• Pressure Rating: Rated for maximum pressure of up to 200 psi
• Chemical Compatibility: Supports glycol mixes up to a maximum concentration of 50%
• Cv Rating: Approximately Cv = 3.0 indicating flow capacity

This Viega shut-off/balancing valve provides reliable performance in hydronic heating and cooling applications, ensuring secure connections with Viega’s proven press technology.
