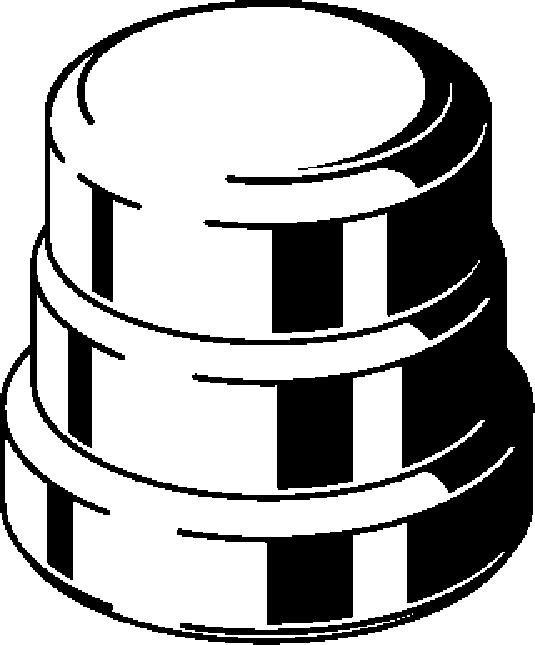

Viega MegaPress 3" 304 Stainless Steel FKM Cap (SKU: 95710)

This Viega MegaPress cap is designed for secure press-fit connections in piping systems, featuring durable 304 stainless steel construction and a reliable FKM O-ring seal.

• Material Grade: Constructed from high-quality 304 stainless steel for corrosion resistance and durability
• Connection Type: Press-fit fitting designed for quick and secure installation
• Compatible Pipe Size: Fits 3" stainless steel pipes
• O-Ring Material: FKM (fluoroelastomer) providing excellent chemical and temperature resistance
• Operating Pressure: Maximum 200 psi suitable for various industrial applications
• Operating Temperature Range: From 14°F to 284°F, supporting high temperature environments
• Resistance Properties: Resistant to high temperature, oil, ozone, petroleum-based additives, and weathering
• Standards Compliance: Meets NFPA 13D, NFPA 13R, ANSI/CAN/UL 213, ASME B31.1, ASTM F3226, ASME B31.3, ASME B31.9, IAPMO Z1117, ICC-ES LC1002, and NFPA 13 standards
• Vacuum Rating: Rated for 29.2 inHG at 160°F
• Dimensions: Overall length approximately 4 3/16 inches

This Viega MegaPress cap offers reliable sealing and durability for air, non-potable water, steam, and gas applications, making it suitable for demanding industrial and commercial piping systems.
