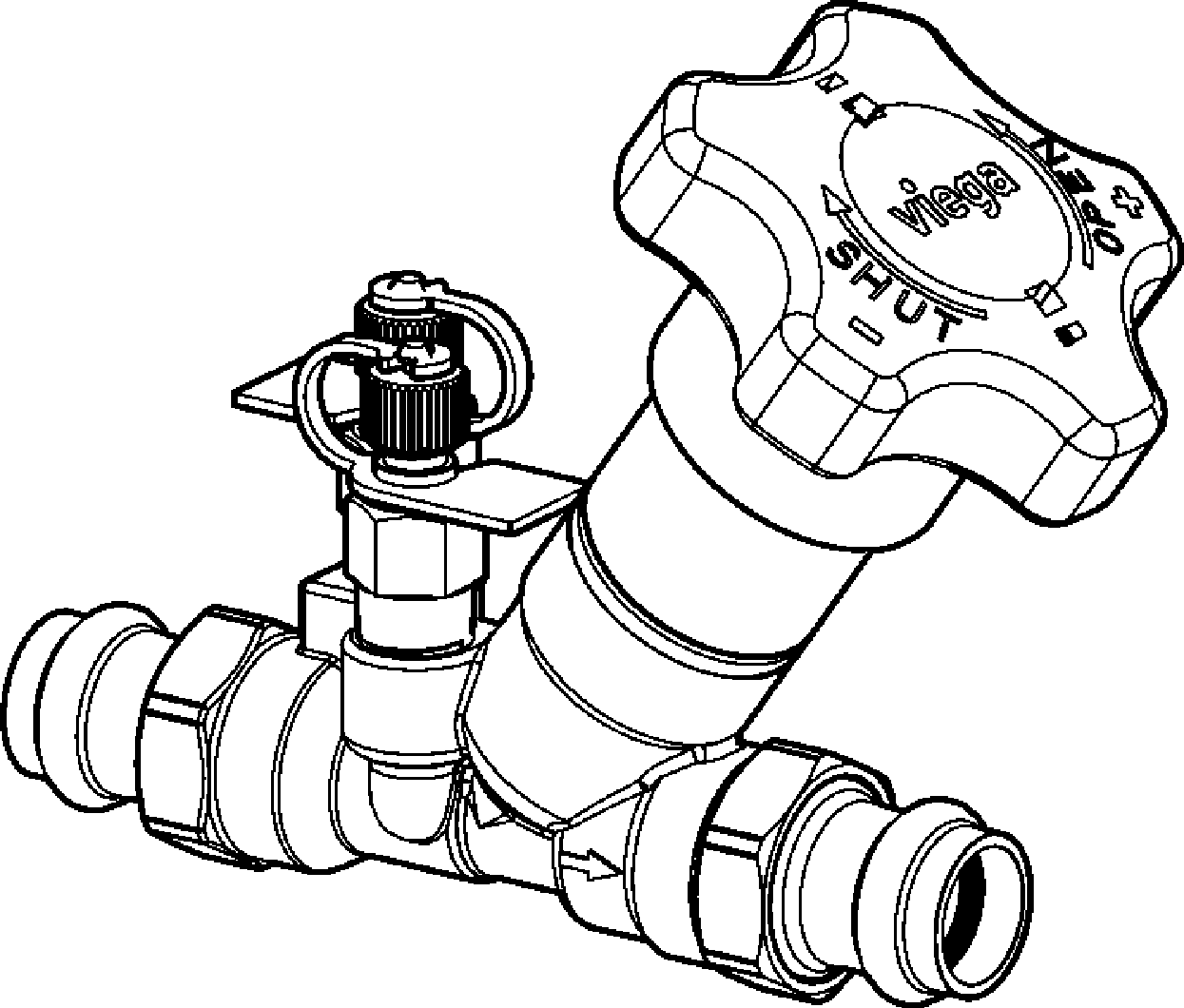

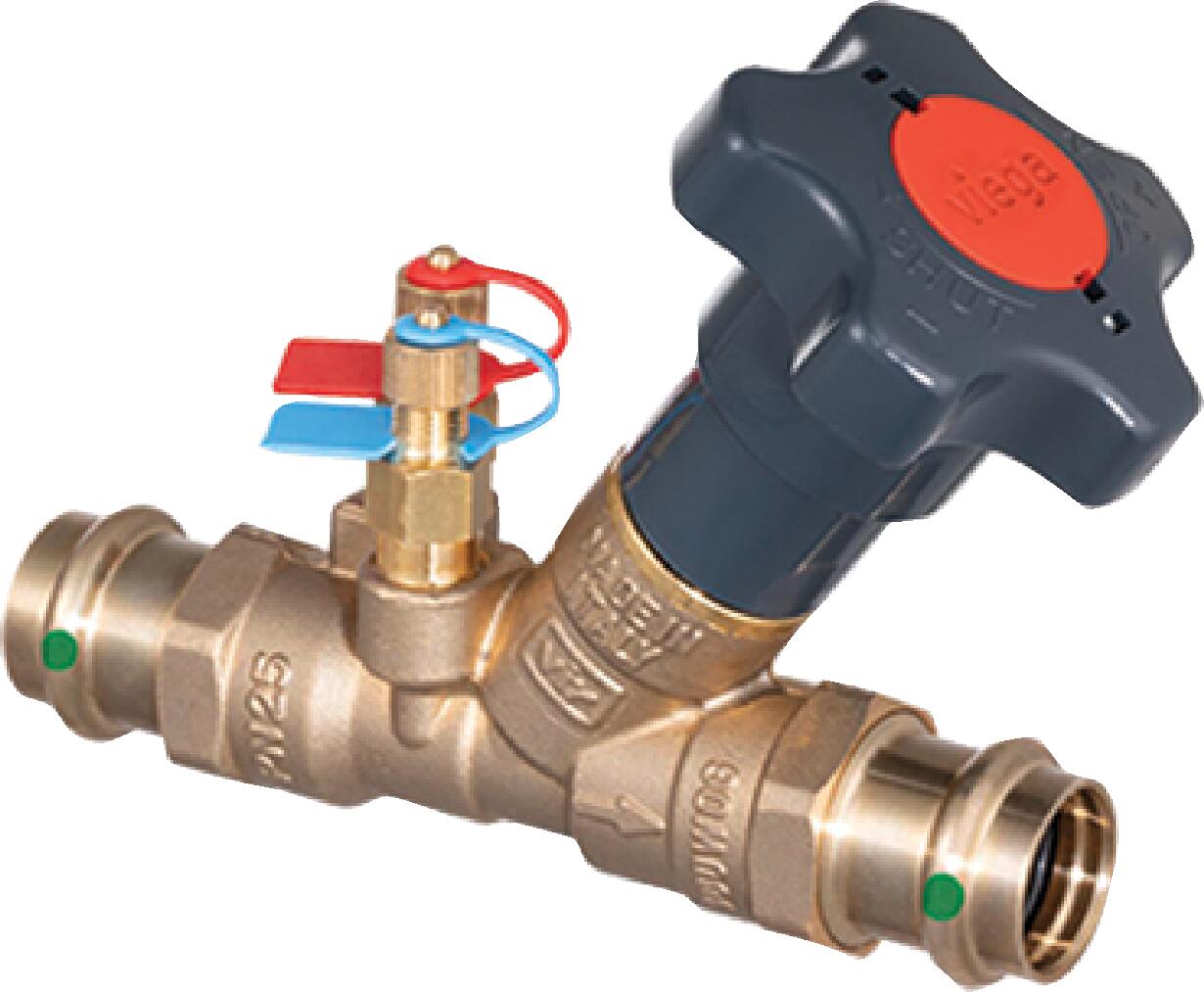

Viega ProPress Manual Balancing Valve Model 2980ZL, 2" Press End, SKU 82135

This manual balancing valve is designed for precise flow control in water supply systems, featuring a 2" nominal size with press end connections and a brass body with EPDM sealing elements.

• Material: DZR lead-free brass body with EPDM softgoods for durability and corrosion resistance
• Connection Type: ProPress press-end style with Smart Connect technology for easy leak detection
• Flow Rate: Supports 24.09 to 55.63 gallons per minute for efficient system balancing
• Pressure Rating: Maximum operating pressure of 250 psi at temperatures up to 250°F
• Temperature Range: Suitable for water temperatures from 15°F to 250°F; below 32°F only with antifreeze fluids
• Design Features: Multi-turn functionality with positive shut-off and memory stop for accurate flow regulation
• Dimensions: Inlet to outlet length approximately 6.14 inches; top to inlet center 5.34 inches
• Test Port: Includes PT test port for system diagnostics
• Certifications: Complies with NSF-61, NSF-372, ASTM B927 C27453, and UL 2043 standards

This valve is a reliable component for HVAC and potable water applications, ensuring precise manual balancing and long-term performance in pressurized water systems.
