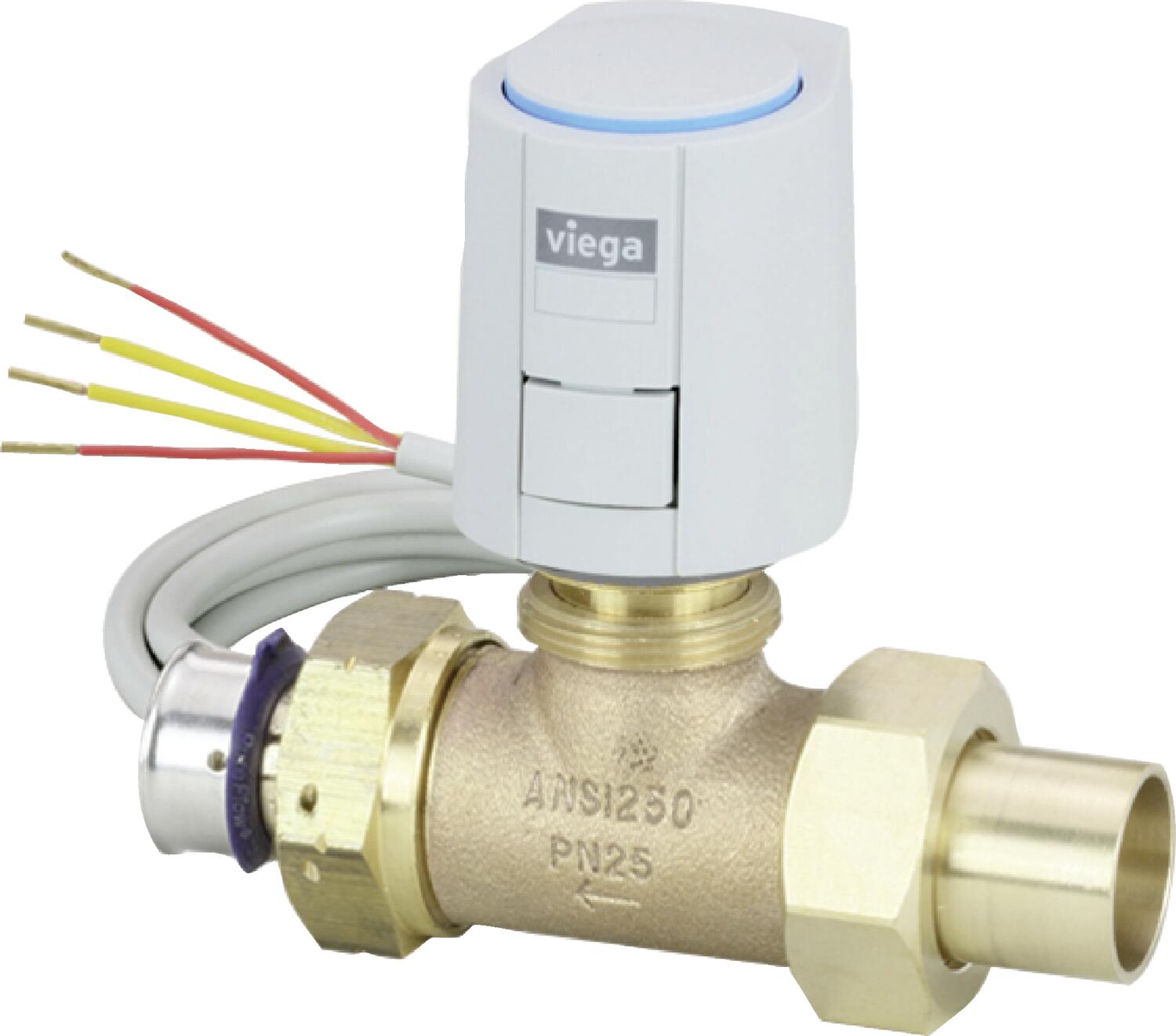

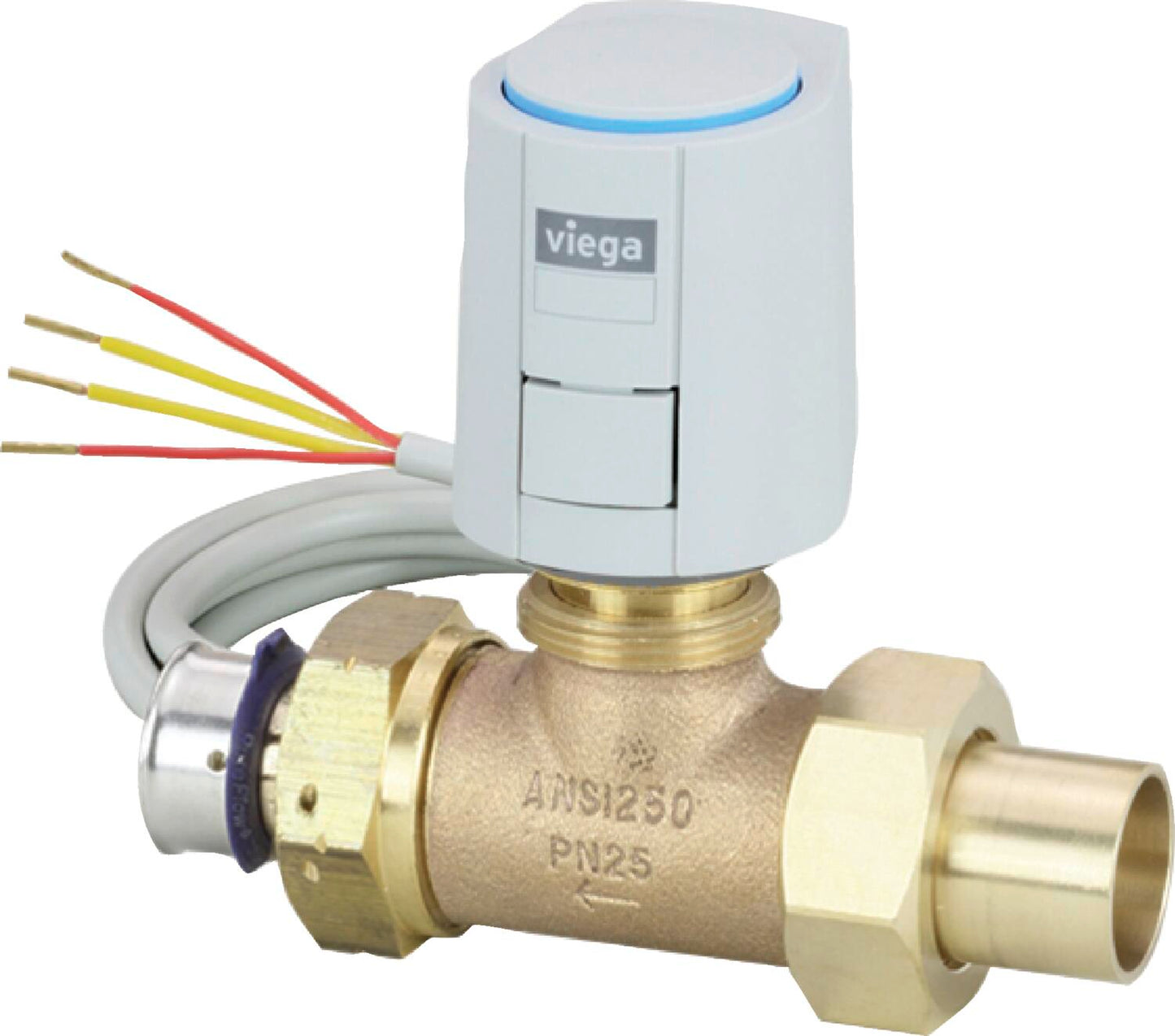

Viega Zone Valve 3/4" Solder x PEX Press, Model 2837.2, SKU 17230

This Viega zone valve is designed to control fluid flow within hydronic heating and cooling systems by opening upon thermostat demand and closing when the demand is met. It features a 3/4" solder connection on the inlet side and a 3/4" PEX press connection on the outlet side.

Connection Types: 3/4" solder x 3/4" PEX press
Operating Voltage: 24 Volts
Maximum Pressure Differential: 50 psi
Fluid Temperature Range: 32° to 212°F
Cv Rating: 4.0 for 3/4" valve
Body Material: Low zinc bronze, alloy C84400
Actuating Force: 21 lbs with 4mm stem travel
Dimensions: Length 4.70 in, Width 3.25 in, Height 2.50 in (approximate)

This valve provides reliable and efficient flow control for professional hydronic heating and cooling installations, ensuring system responsiveness and durability.
