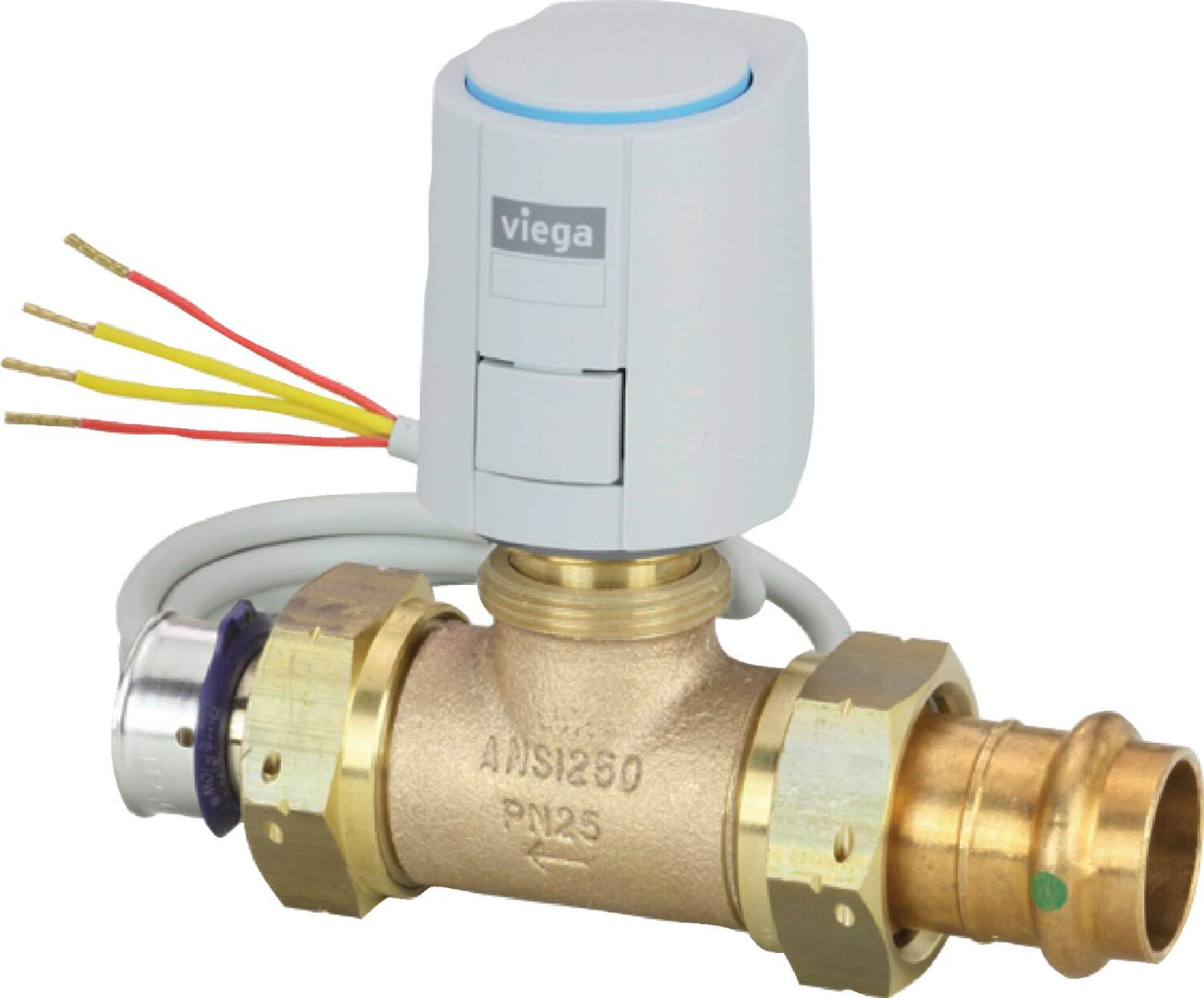

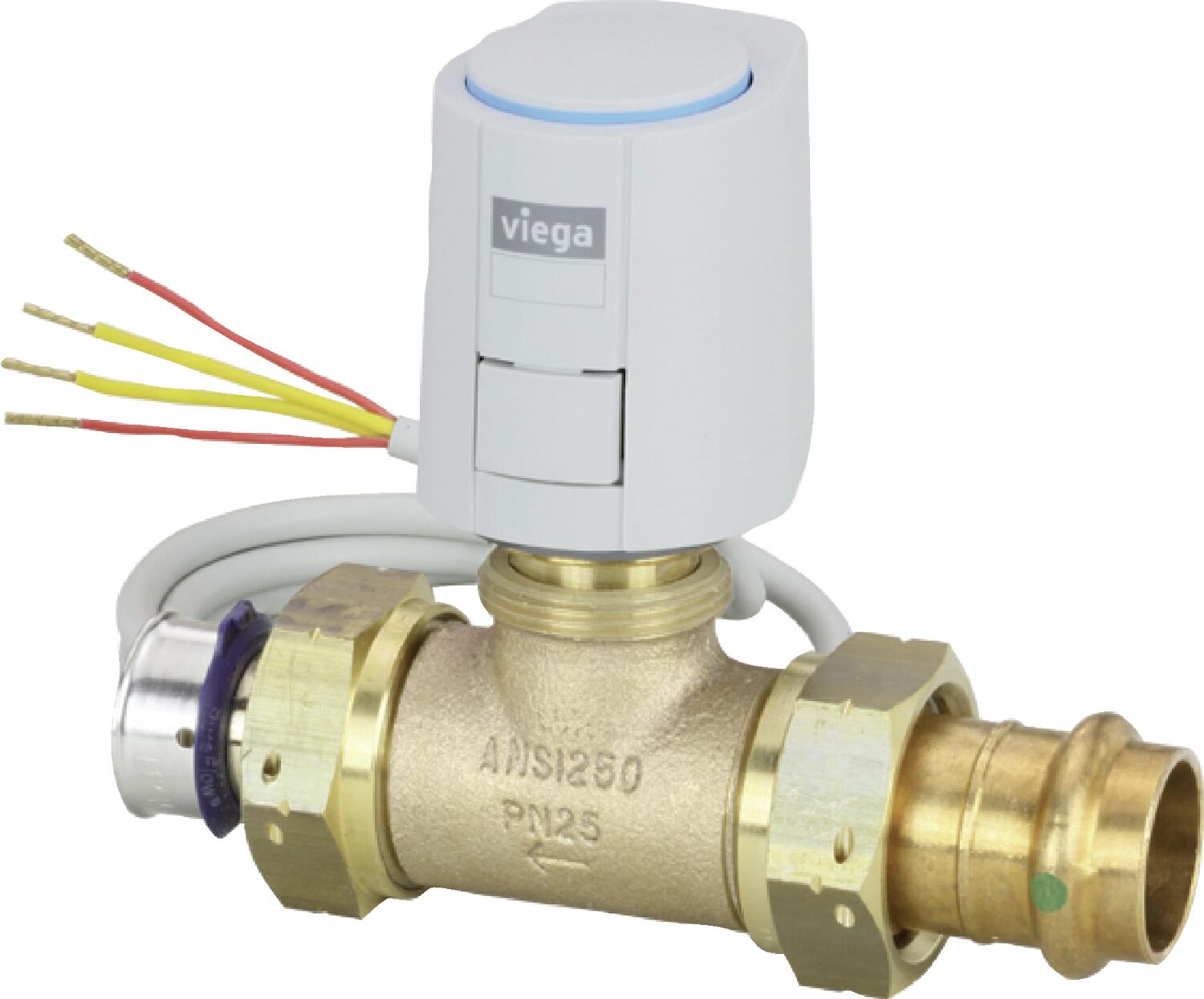

Viega Zone Valve 3/4" ProPress x PEX Press, Model 2837.2, SKU 17234

This Viega zone valve is designed to control fluid flow within hydronic heating and cooling systems by opening upon thermostat demand and closing when demand is met.

• Connection Type: 3/4" ProPress x PEX Press connections for reliable and secure installation
• Material: Low zinc bronze alloy C84400 body for durability and corrosion resistance
• Operating Voltage: 24 Volts with a maximum inrush current of 300 mA for 2 minutes
• Flow Capacity: Cv rating of 4.0 for efficient fluid control
• Pressure Differential: Maximum 50 psi differential pressure capability
• Fluid Temperature Range: Suitable for fluids between 32° and 212°F
• Actuation: Stem travel of 4 mm with an actuating force of 21 lbs and opening/closing time of approximately 3 minutes
• Dimensions: Length 5.10 in, Width 3.80 in, Height 2.50 in

This zone valve offers dependable performance and is ideal for professional hydronic heating and cooling system installations requiring precise flow control and robust construction.
