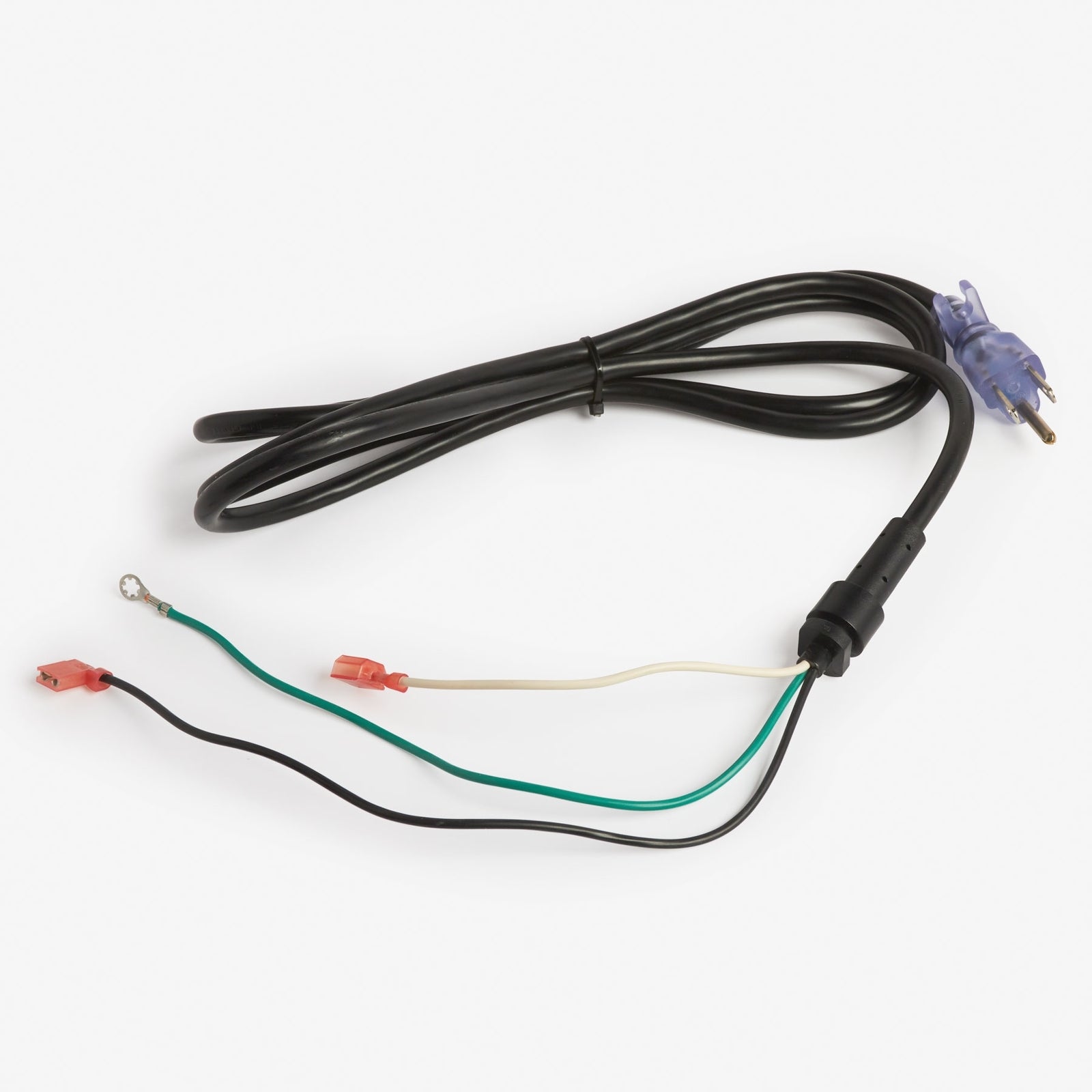

The GRACO 16E842 is a replacement power cord set for the Magnum X5 paint sprayer, featuring a lighted plug for positive power indication. It is constructed for durability and is intended to restore or upgrade the electrical connection of compatible GRACO sprayers, ensuring reliable operation and safety during painting tasks.

Key Features:

• Repair Kit
• Magnum X5
• Durable cord set with lighted plug
• For use with X5, series E, LTS 15, 262800, 17K955
• Lighted plug for positive power indicator
• Designed for easy replacement and maintenance
• High-quality, genuine GRACO part for long service life
• Wiring diagrams available in operator’s manual

Applications:
Used to replace or upgrade the power cord on compatible GRACO Magnum X5 paint sprayers and select other models, ensuring safe and reliable electrical connectivity for painting operations.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and maintains the sprayer’s warranty and performance.
• Verify the sprayer’s series letter on the serial number tag before installation
• Refer to the operator’s manual for wiring diagrams and installation instructions
• Contact GRACO tech support for troubleshooting or further assistance
• Regularly inspect the cord set for wear or damage
• Replace with genuine GRACO parts as needed to maintain optimal performance
