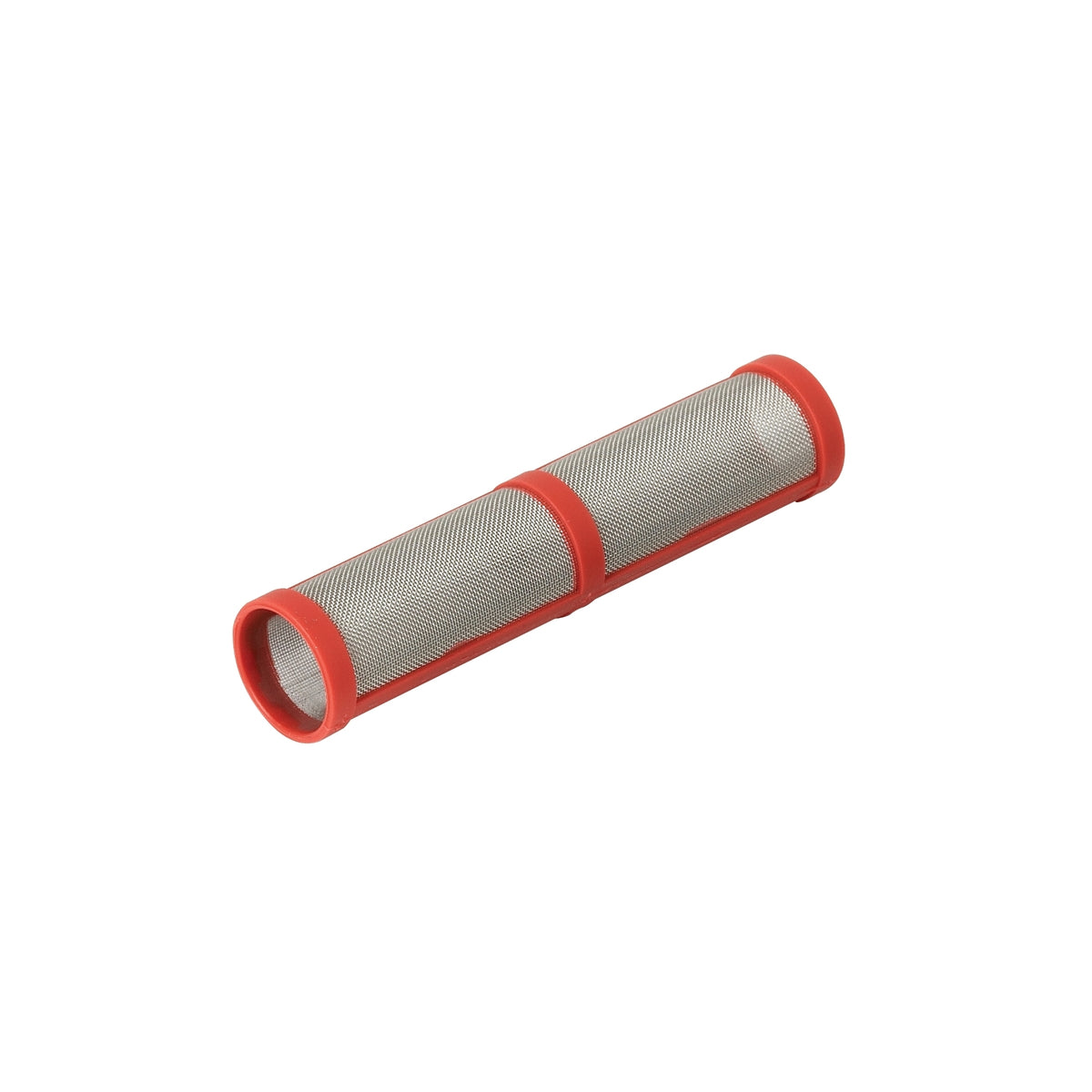

The GRACO 246383 Easy Out Pump Manifold Filter is a vertical manifold filter designed to maximize spray performance by filtering paint or coating materials before they enter the hose. It is intended for use with thinner materials such as stains, varnishes, and solvent-based paints. The filter helps extend equipment life and reduce downtime by preventing contaminants from damaging the spray gun or puncturing the hose. Material is not specified, but it is an OEM GRACO part.

Key Features:

• Filter
• Easy Out, Short, 200 mesh
• ST, STX, 390, Ultra 395/495/595 Airless Sprayers
• Easy Out design for quick removal and maintenance
• 200 mesh for fine filtration of thin materials
• Vertical manifold filter (stands perpendicular to ground when installed)
• Helps protect spray gun and hose from contaminants
• Reduces downtime and extends equipment life

Applications:
Best used with stains, varnishes, polyurethane, and solvent-based paints. Ideal tip size for use: .007” to .013”.

Installation Notes:

• Using a genuine GRACO manifold filter ensures optimal spray performance, protects equipment, and maintains warranty compliance.
• Install the filter vertically in the manifold so it stands perpendicular to the ground
• Ensure the filter is securely seated to prevent leaks
• Regularly inspect and clean or replace the filter to maintain performance and prevent clogs
• Always use the correct mesh size for the material being sprayed
• Check the filter before each use for debris or damage
• Clean or replace the filter as needed to maintain flow and prevent equipment damage
• Use only compatible materials and tip sizes as recommended
