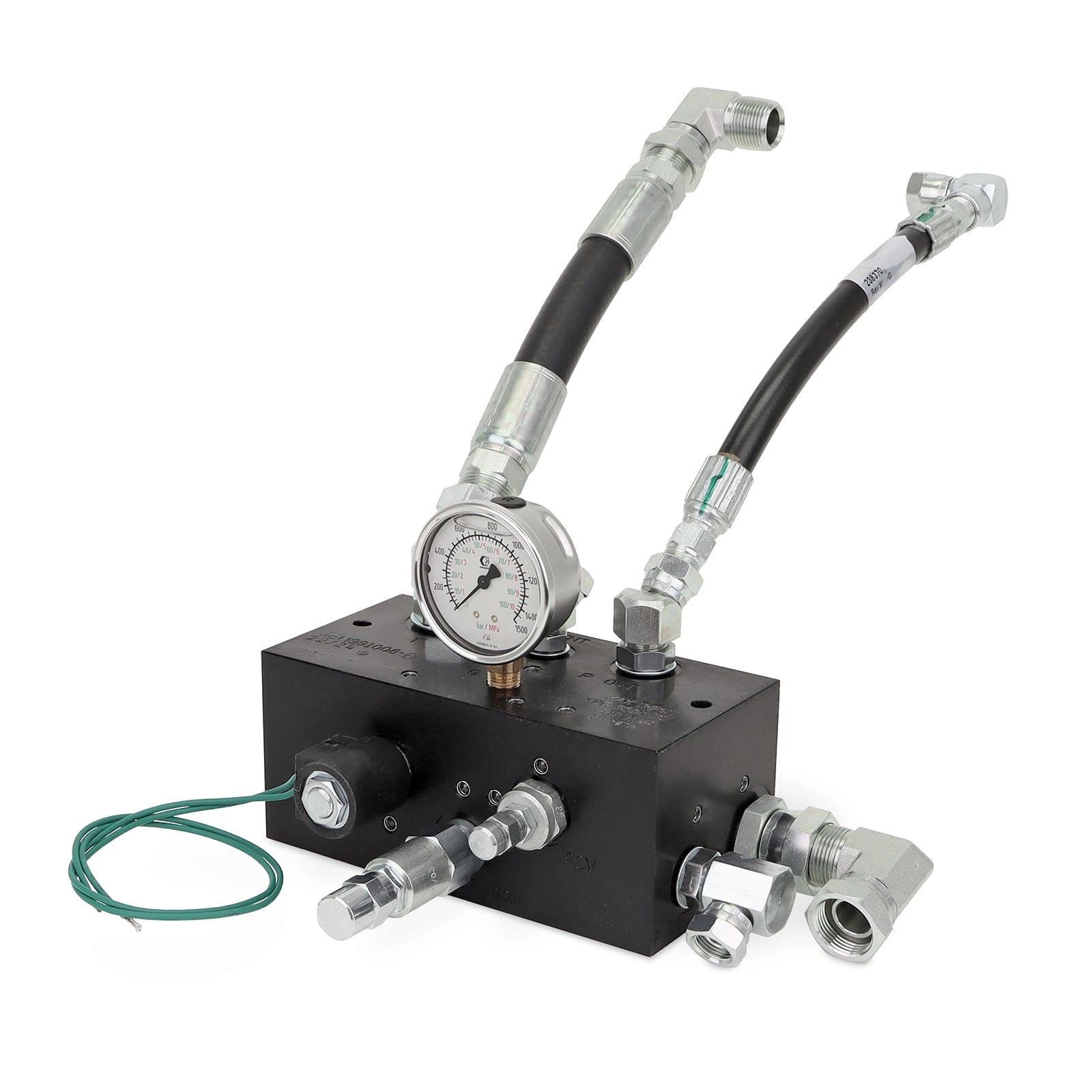

The GRACO 247538 is a hydraulic control assembly installation kit designed for use with Dyna-Star 10:1 off-road mobile lubrication systems. It is constructed from industrial-grade materials suitable for demanding environments and is intended to control hydraulic fluid flow and pressure within GRACO lubrication equipment.

Key Features:

• Hydraulic Control Assembly Installation Kit
• For Dyna-Star 10:1
• Dyna-Star 10:1 Off-Road Mobile Lubrication Systems
• Integrates pressure gauge, pressure reducing valve, and flow control valve
• Designed for reliable performance in harsh environments
• Supports safe and efficient operation of lubrication systems

Applications:
Used in off-road mobile lubrication systems for dispensing lubricating fluids in industries such as mining, construction, agriculture, and heavy equipment maintenance.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and safety of the lubrication system.
• Follow all safety instructions and warnings in the equipment manual
• Ensure hydraulic supply and return hoses are properly connected to the correct fittings
• Reconnect ground wire before operating the pump to reduce risk of static sparking
• Use appropriate tools for assembly and torque to specified values (e.g., 45-55 ft-lb for certain components)
• Regularly inspect hydraulic connections and valves for leaks or wear
• Keep the system clean and free from contamination
• Refer to the manual for specific maintenance intervals and procedures
