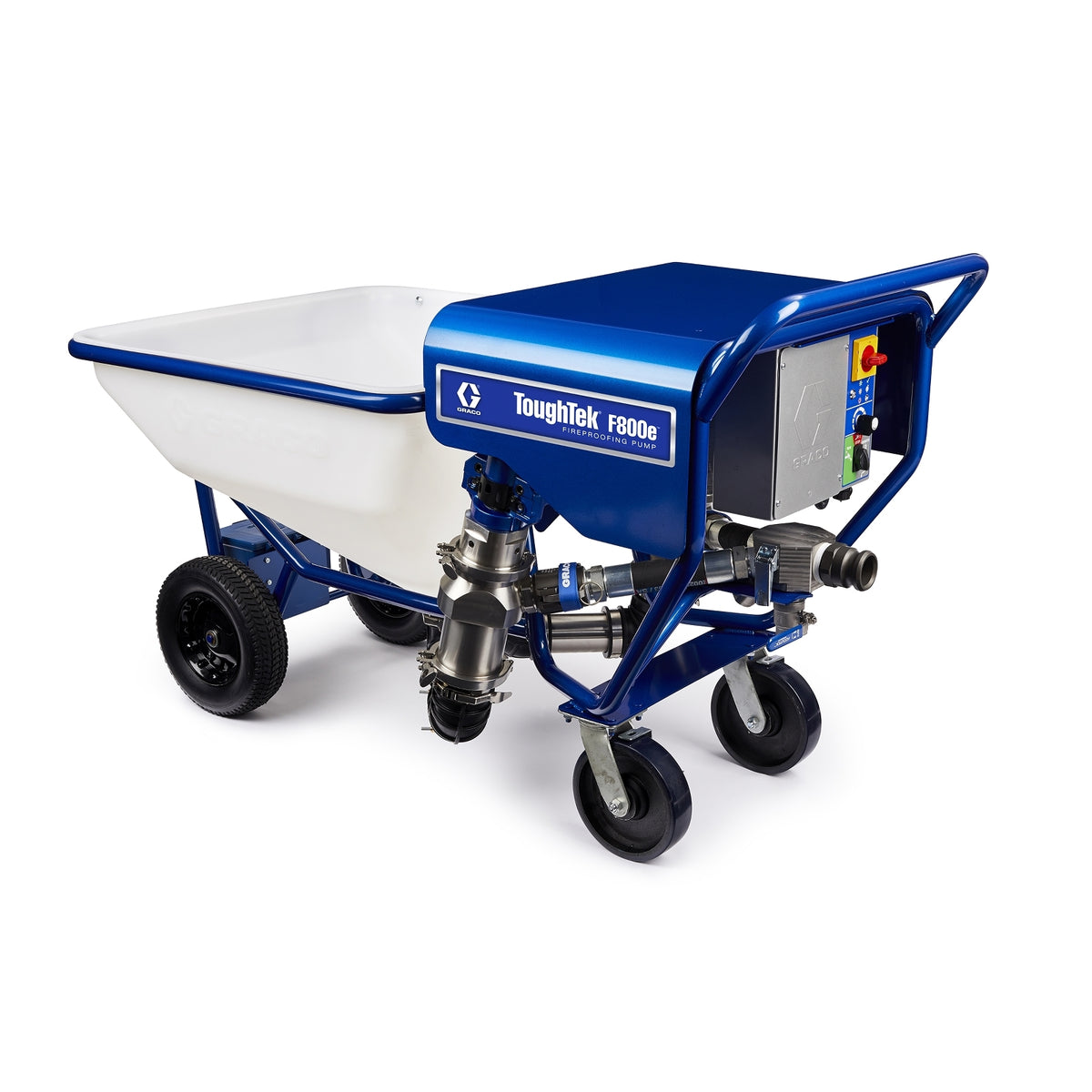

The GRACO 25M802 ToughTek F800e is an electric piston pump system designed for spraying cementitious fireproofing materials. It features a robust, maintenance-free construction and is intended for use in fireproofing applications within construction and industrial settings.

Key Features:

• Electric Piston Pump
• ToughTek F800e
• Portable, ergonomic round tube coated steel frame; lightweight molded hopper (45 gallon/170 L capacity)
• Maximum flow rate: 98.42 L/min (26 GPM)
• Maximum working pressure: 4.1 MPa (41 bar, 4100 kPa, 600 psi)
• Compatible with cementitious fireproofing materials
• Maintenance-free piston pump technology
• Direct drive brushless motor (4.5 hp)
• Compact and portable design
• Easy-to-use control box with remote start/stop and variable speed
• Troubleshooting error codes included
• Quick disconnect inlet clamps for easy cleaning
• 2” (51 mm) male camlock outlet for plug-and-play hose compatibility
• Bottom-drain hopper for smooth material flow

Applications:
Primarily used for spraying cementitious fireproofing materials in construction and industrial environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety of the equipment.
• Ensure the system is connected to a suitable power supply (standard 240V, 30A outlet recommended)
• Check all connections and hoses before operation
• Follow manufacturer guidelines for material compatibility and maximum hose length (up to 300 ft/91 m)
• Regularly inspect and clean the hopper and inlet assembly for smooth operation
• Refer to the product manual for detailed installation and maintenance procedures
