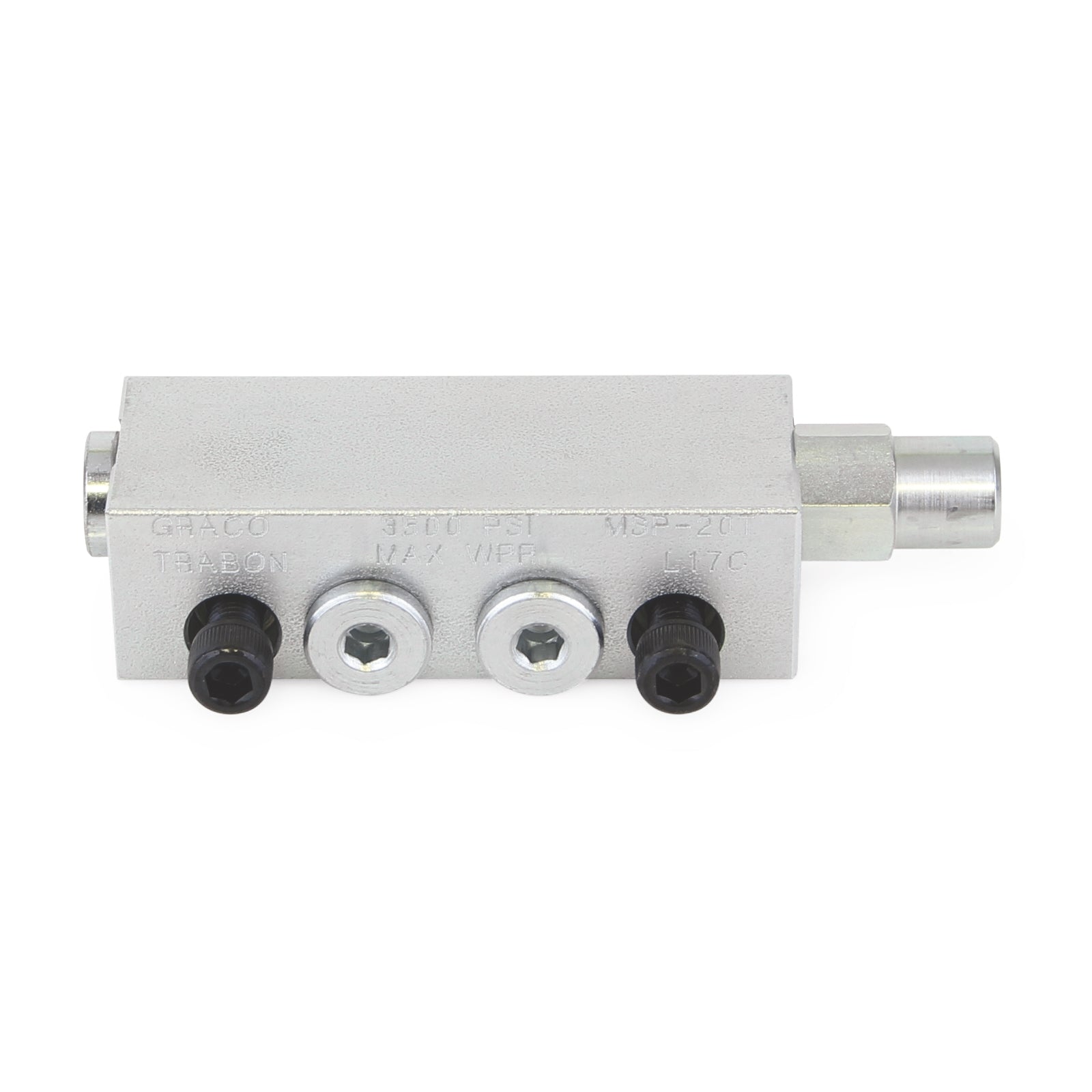

The Trabon® MSP Modular Divider Valve with Right Cycle Pin is a modular, progressive divider valve designed for precise lubrication distribution. It is constructed from carbon steel and is intended for use in automated lubrication systems for on-road vehicles, off-road equipment, and in-plant machinery. The valve ensures accurate delivery of oil or grease to multiple lubrication points.

Key Features:

• Divider Valve
• MSP-20S, 0.040 in³ (0.66 cm³)
• Carbon steel
• Discharge per piston stroke: 0.040 in³ (0.66 cm³)
• Maximum working pressure: 3500 psi (241 bar); Minimum working pressure: 200 psi (14 bar)
• Oil, grease (up to NLGI #2)
• Modular, stackable design for flexibility and easy maintenance
• Quick-change valve sections can be removed without disturbing lube lines
• Built-in outlet check valves ensure accurate lube delivery
• Cycle pin (right) for positive feedback on lube events
• Fluoroelastomer o-ring sealing prevents leaks and reduces maintenance
• Choice of SAE, NPSF, or BSPP inlet/outlet connections
• Can lubricate up to 22 points per valve assembly
• Individual valve outputs vary by a maximum ratio of 16:1

Applications:
On-road vehicles, off-road equipment, in-plant machinery

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Install and maintain without disturbing lube lines for minimal downtime
• Ensure proper alignment and secure connections for leak-free operation
• Use recommended lubricants and follow manufacturer guidelines for pressure and temperature limits
• Consider using accessories such as magnetic or electronic proximity switch cycle indicators for positive feedback on lube events
• Field-installable crossport or singling plates may be used to increase flow to a single point or accommodate an odd number of lube points
