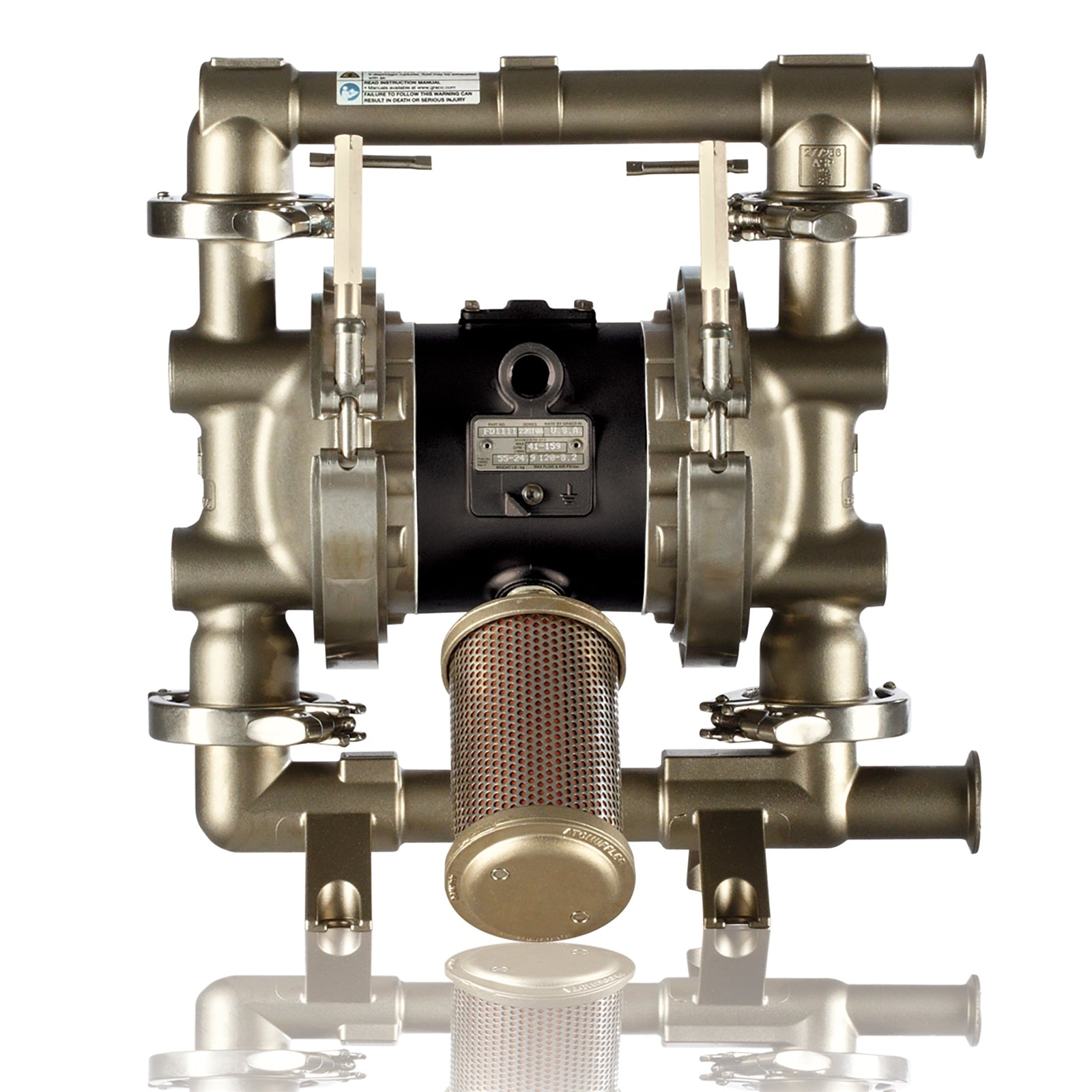

The GRACO FA2111 SaniForce 1590 is a 1.5-inch sanitary, air-operated double diaphragm (AODD) pump designed for hygienic fluid transfer. It features a stainless steel (316) wetted section, aluminum center, stainless steel seats, PTFE balls, and PTFE diaphragms. This pump is engineered for use in applications requiring high cleanliness and reliability, such as food, beverage, and pharmaceutical processing.

Key Features:

• Air-operated double diaphragm (AODD) pump
• SaniForce 1590, 1.5" FG SST
• 316 stainless steel wetted section, aluminum center, stainless steel seats, PTFE balls, PTFE diaphragms
• Up to 100 gpm (379 lpm)
• Up to 120 psi (8 bar)
• Tri-clamp connections for sanitary applications
• FDA-compliant, meets United States Code of Federal Regulations (CFR) Title 21
• Seal-less diaphragm pump design eliminates leaking and failures due to run-dry conditions
• Quick knockdown design for easy cleaning and maintenance
• 360-degree rotation for draining and servicing
• Externally serviceable air valves for reduced downtime
• Can pass solids up to 0.1875 in. (4.8 mm)
• Engineered for heavy-duty, continuous use
• Designed with CIP (Clean-in-Place) in mind

Applications:
Ideal for hygienic transfer in food, beverage, pharmaceutical, personal care, and cosmetics industries. Suitable for applications requiring high cleanliness, reliability, and easy sanitation.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compliance with industry standards.
• Ensure proper alignment of tri-clamp connections for leak-free operation
• Follow manufacturer guidelines for air supply and pressure settings
• Regularly inspect diaphragms and valves for wear and replace as needed
• Utilize the quick knockdown design for efficient cleaning and maintenance
• Rotate pump 360 degrees for complete draining and sanitizing
