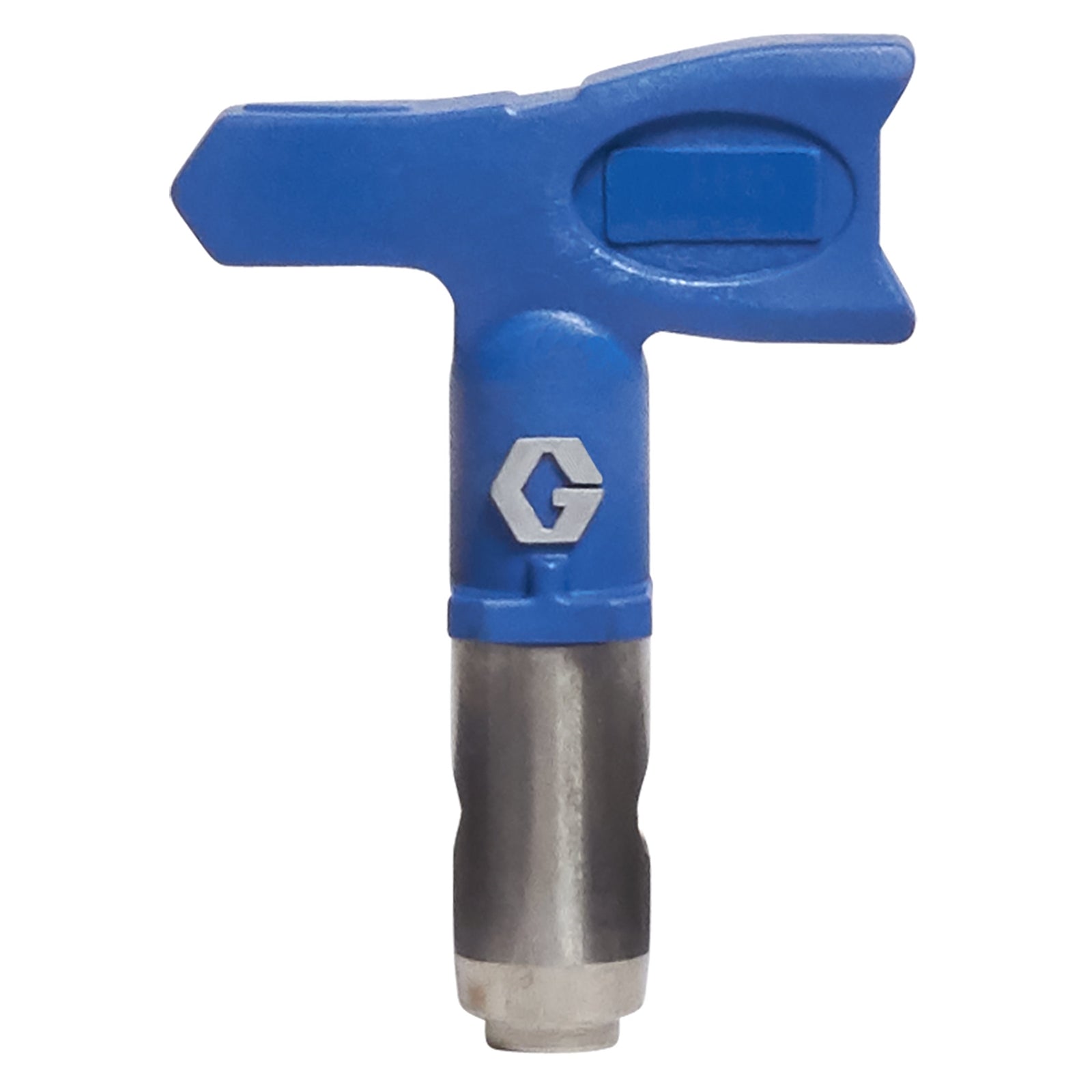

The GRACO LTX629 RAC X SwitchTip is a premium airless spray tip designed for use with GRACO airless spray equipment. It is constructed for compatibility with a range of materials from lacquer to mastic and latex paint. The tip is engineered to deliver a consistent, high-quality finish and is intended for professional painting and coating applications.

Key Features:

• Airless Spray Tip
• RAC X, 629 (12–14 inch fan, 0.029 inch orifice)
• Maximum flow rate: 0.9 GPM (3.41 L/min)
• Maximum working pressure: 4050 psi (280 bar, 28000 kPa)
• Lacquer to mastic, latex paint; for use with RAC X HandTite Tip Guard
• Reversible tip for easy clog clearing
• Longest lasting fan pattern
• Consistent spray pattern for high-quality finish
• Large, raised tip size numbers for easy identification
• Locking tab ensures tip stays securely in guard
• Snaps into spray or reverse position
• OneSeal™ tip installs with no tools
• Solvent seal available for use with extremely hot solvents

Applications:
Professional painting and coating applications, including walls, ceilings, and large surfaces where a consistent, high-quality finish is required. Suitable for use with lacquer, mastic, and latex paint.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and compatibility with GRACO equipment.
• Ensure the spray gun is turned off and depressurized before installation or removal
• Use the RAC X HandTite Tip Guard for secure fit and safety
• Install the tip by snapping it into place—no tools required
• Reverse the tip to clear clogs as needed
• Regularly inspect the tip for wear or damage and replace as necessary
• Clean the tip thoroughly after each use to prevent clogging
• Store the tip in a clean, dry place when not in use
• Use appropriate solvents for cleaning, especially when switching between different materials
