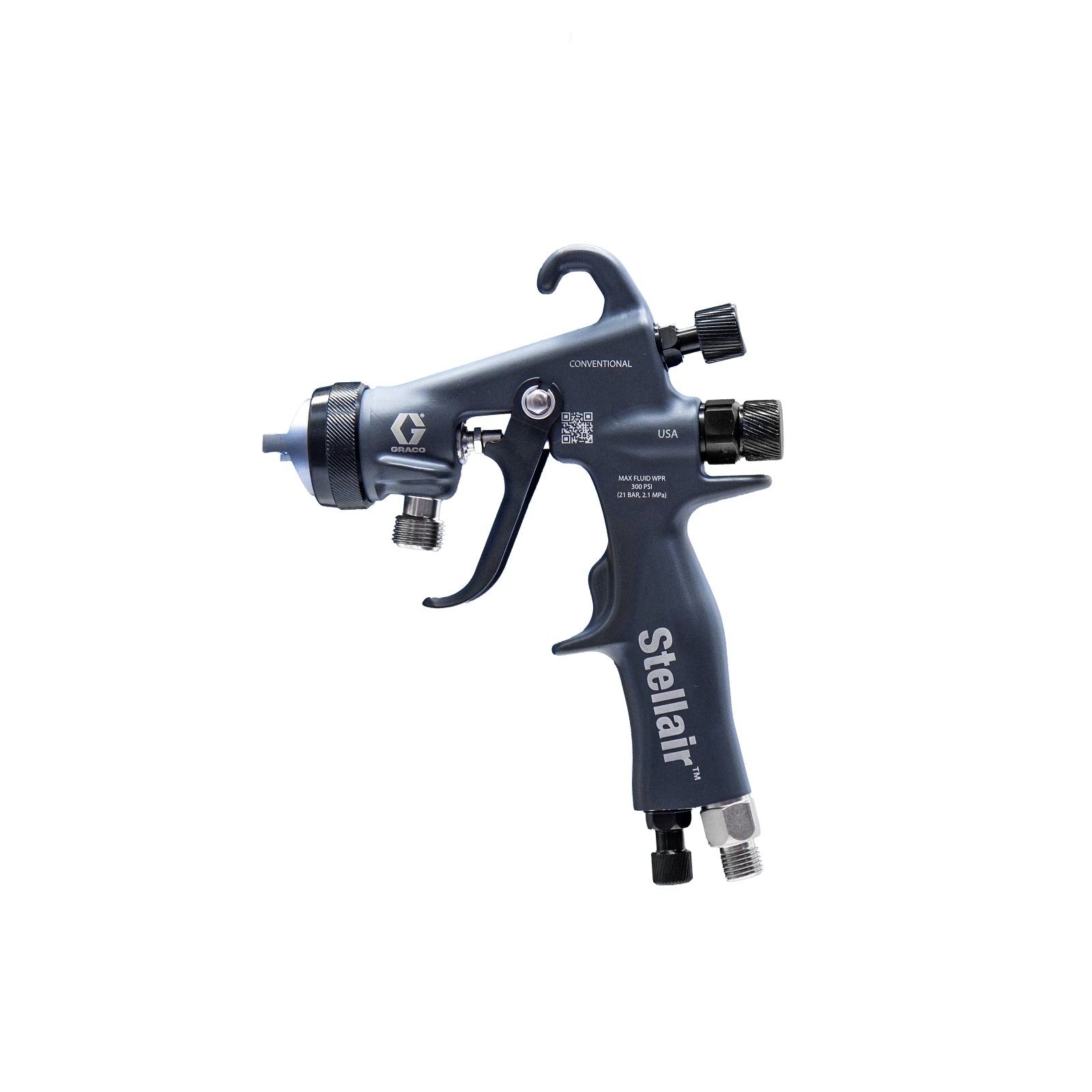

The GRACO Stellair Air Spray Gun is a manual pressure-feed spray gun designed for industrial finishing applications. The specified model features a PEEK tip for enhanced chemical resistance and is intended for use with adhesives and other industrial coatings. Its robust construction and ergonomic design make it suitable for demanding environments.

Key Features:

• Air Spray Gun
• Conventional, 0.070 in (1.8 mm) nozzle
• Aluminum body, PEEK tip
• Maximum fluid inlet pressure: 300 psi (2.1 MPa, 21 bar); Maximum air inlet pressure: 100 psi (0.7 MPa, 7 bar)
• Compatible with adhesives and a wide range of industrial coatings
• Lightweight and ergonomic (Stellair ACE is 209g, but standard Stellair is heavier at 410g; this model is likely similar to standard Stellair in weight and design)
• Durable construction for industrial use
• Easy maintenance and quick-change fluid cartridges (for Stellair series)
• Consistent spray pattern and uniform film thickness

Applications:
Industrial finishing, adhesive application, wood and metal coatings, general industry

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment.
• Ensure compatibility of fluids and solvents with equipment wetted parts
• Set air pressure according to recommended starting pressures (e.g., 35 psi for conventional, 25 psi for HVLP in general industry)
• Test spray pattern at a consistent distance (6-8 in. or 150-200 mm) from the test piece
• Adjust fluid flow rate, input air pressure, and fan control valve to achieve desired atomization and pattern size
• Regularly inspect and clean the spray gun
• Use compatible fluids and solvents
• Follow manufacturer’s maintenance schedule
